SKF OH3172H Adapter sleeve
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF OH3172H adapter sleeve. Tapered sleeve fitting between a straight shaft and a tapered-bore bearing (spherical roller, self-aligning ball, CARB toroidal roller). Combined with a lock nut and locking device, provides tight fit and correct radial internal clearance without shaft shoulders. Standard designation prefix H (metric H2xxx / H3xxx / H30xx / H31xx / H32xx / HE3xx). Dimensioned to ISO 113.
Technical Specifications
- Type
- Adapter sleeve Designation: SKF OH3172H Bore d: 360 mm HS code: 8483.30 Bore diameter: 340 mm Width: 259 mm Thread designation: Tr 360x5 Taper: 1:12 Holes for oil injection: With Product net weight: 50 kg eClass code: 23-11-07-05 UNSPSC code: 31163218
Standards & Compliance
- Standard
- SKF designation convention (see description for governing ISO / DIN)
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8483.30
Cross References
- FAG 3172
- NSK 3172
- Timken 3172
- NTN 3172
- Koyo 3172
- Equivalent: 3172 (FAG)
- Equivalent: 3172 (NSK)
- Equivalent: 3172 (Timken)
- Equivalent: 3172 (NTN)
- Equivalent: 3172 (Koyo)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
Product Documentation
More from SKF
SKF
SKF KDN.K10020XP0 Thin-section ball bearing (Reali-Slim)
SKF

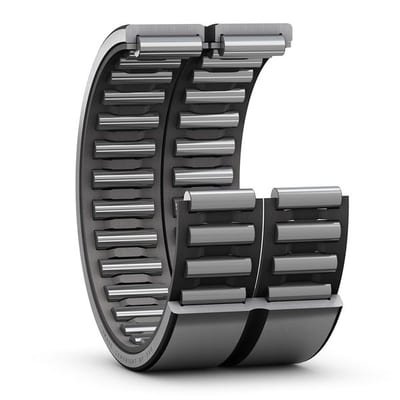

SKF RNA6912 Needle roller bearing (machined rings)
SKF

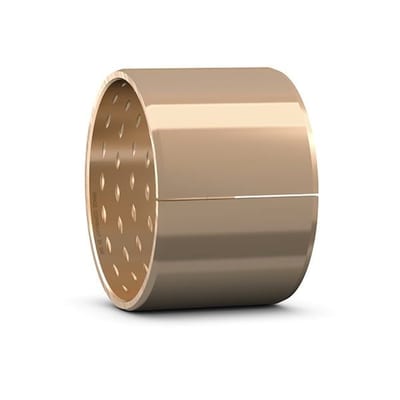

SKF PRM10010595 Plain sleeve bushing
SKF
SKF OR170.0X2.4-N70 O-ring / back-up ring
SKF
SKF P4BE211-SRB-SLE Roller-bearing pillow-block unit
SKF
SKF RGR160X166X20-PF Hydraulic guide ring / wear ring / bearing strip
SKF
SKF PHC12B-2O/L Roller chain
SKF
SKF PHFSH-1-1/8 QD (Quick Disconnect) bushing
Technical guides
- Adapter Sleeve and Withdrawal Sleeve Finder — H 2xx / H 3xx, HA, HE, OH, SNW (inch), AH / AHX / AOH by Shaft Diameter (SKF)
- SKF 81xxx Cylindrical Roller Thrust Bearing — Dimensions, Load Ratings & Interchange (81102 to 81140)
- SKF Deep Groove Ball Bearing Reference — 6000 / 6200 / 6300 / 6400 Series (Dimensions, Load Ratings, Interchange to FAG NSK NTN Timken)
Catalogue entry last verified: 2026-08-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy OH3172H?
- OH3172H can be ordered from cballast.com as a SKF catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this SKF product?
- The manufacturer part number is OH3172H.
- What is the HS code for OH3172H?
- The customs tariff (HS) code for OH3172H is 8483.30.
- Who manufactures OH3172H?
- OH3172H is a SKF product in the Bearings & Power Transmission range.
- Is a datasheet available for OH3172H?
- Yes — the OH3172H datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for OH3172H?
- The minimum order quantity is 1.
- Is OH3172H available?
- Yes — OH3172H is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
