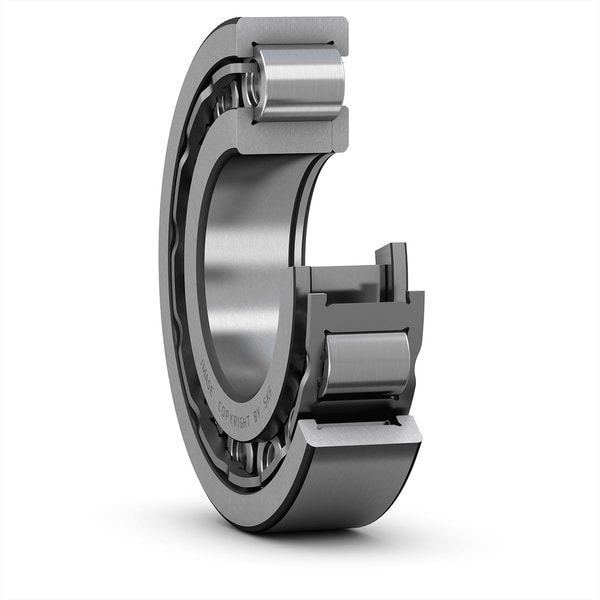

SKF NUP2212ECJ Single-row cylindrical roller bearing (NU / N / NJ / NUP)

SKF NUP2212ECJ single-row cylindrical roller bearing (nu / n / nj / nup). Single-row cylindrical roller bearing. Design executions NU / N / NJ / NUP set the axial-guidance capability by rib configuration on inner and outer ring. Standard cage ECP (glass-fibre-reinforced polyamide 6.6) for bores up to 100 mm; ECM (machined brass) above. Precision to ISO 492 Class Normal / P6 / P5. Very heavy radial-load capacity at moderate speed. Suitable for reduction-gear input shafts, marine deck-machinery drives, paper-mill dryer sections.

Type

Single-row cylindrical roller bearing (NU / N / NJ / NUP)

Designation

SKF NUP2212ECJ

Bore d

60 mm

HS code

8482.20

Bore diameter

60 mm

Outside diameter

110 mm

Width

28 mm

Basic dynamic load rating

146 kN

Basic static load rating

153 kN

Reference speed

6700 r/min

Limiting speed

7500 r/min

SKF performance class

SKF Explorer

Bearing part

Complete bearing

Axial displacement capability

None

Number of rows

1

Locating feature, bearing outer ring

Without

Bore type

Cylindrical

Cage

Sheet metal

Number of flanges, outer ring

2

Number of flanges, inner ring

1

Loose flange

Inner ring loose flange

Radial internal clearance

CN

Tolerance class

Normal

Coating

Without

Sealing

Without

Lubricant

None

Relubrication feature

Without

Indicative carbon footprint for new product

4.2 kg CO2e

Product net weight

1.15 kg

eClass code

23-05-09-01

UNSPSC code

31171505

Dimensions (d × D × B)

60 × 110 × 28 mm

Standard

SKF designation convention

Material

As declared by SKF designation suffix

Temperature Range

Per SKF product data

HS Code

8482.20

• FAG 2212
• NSK 2212
• NTN 2212
• Timken 2212
• Koyo 2212
• Alt. designation NUP 2212 ECJ
• Equivalent: 2212 (FAG)
• Equivalent: 2212 (NSK)
• Equivalent: 2212 (NTN)
• Equivalent: 2212 (Timken)
• Equivalent: 2212 (Koyo)
