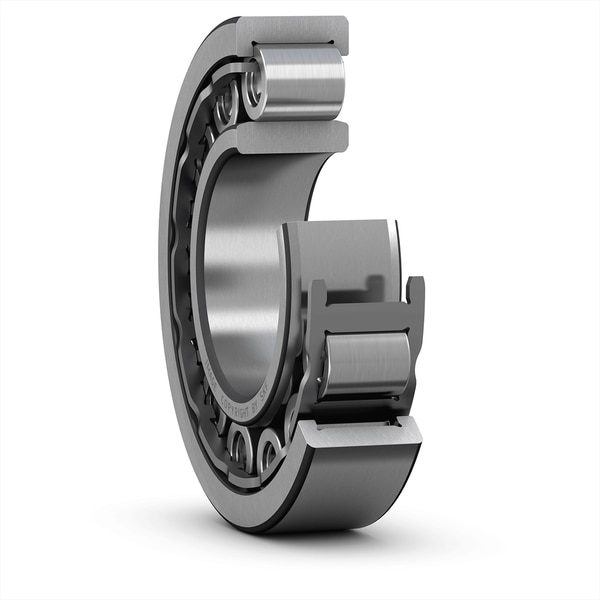

SKF NU219ECJ/C3 Single-row cylindrical roller bearing (NU / N / NJ / NUP)

SKF NU219ECJ/C3 single-row cylindrical roller bearing (nu / n / nj / nup). Single-row cylindrical roller bearing. Design executions NU / N / NJ / NUP set the axial-guidance capability by rib configuration on inner and outer ring. Standard cage ECP (glass-fibre-reinforced polyamide 6.6) for bores up to 100 mm; ECM (machined brass) above. Precision to ISO 492 Class Normal / P6 / P5. Very heavy radial-load capacity at moderate speed. Suitable for reduction-gear input shafts, marine deck-machinery drives, paper-mill dryer sections.

Type

Single-row cylindrical roller bearing (NU / N / NJ / NUP)

Designation

SKF NU219ECJ/C3

Bore d

95 mm

HS code

8482.20

Bore diameter

95 mm

Outside diameter

170 mm

Width

32 mm

Basic dynamic load rating

255 kN

Basic static load rating

265 kN

Reference speed

4300 r/min

Limiting speed

4800 r/min

SKF performance class

SKF Explorer

Bearing part

Complete bearing

Axial displacement capability

In both directions

Number of rows

1

Locating feature, bearing outer ring

Without

Bore type

Cylindrical

Cage

Sheet metal

Number of flanges, outer ring

2

Number of flanges, inner ring

0

Loose flange

None

Radial internal clearance

CN

Tolerance class

Normal

Coating

Without

Sealing

Without

Lubricant

None

Relubrication feature

Without

Indicative carbon footprint for new product

10.4 kg CO2e

Product net weight

2.81 kg

eClass code

23-05-09-01

UNSPSC code

31171505

Dimensions (d × D × B)

95 × 170 × 32 mm

Standard

SKF designation convention

Material

As declared by SKF designation suffix

Temperature Range

Per SKF product data

HS Code

8482.20

• FAG 2193
• NSK 2193
• NTN 2193
• Timken 2193
• Koyo 2193
• Alt. designation NU 219 ECJ/C3
• Equivalent: 2193 (FAG)
• Equivalent: 2193 (NSK)
• Equivalent: 2193 (NTN)
• Equivalent: 2193 (Timken)
• Equivalent: 2193 (Koyo)
