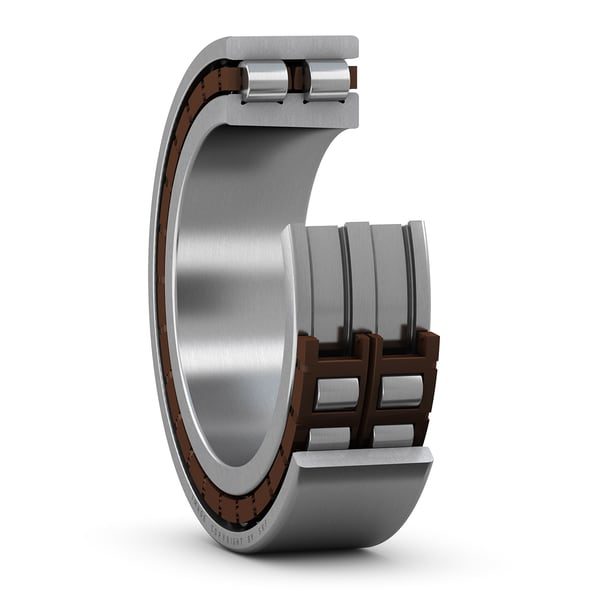

SKF NN3008KTN/SP Super-precision cylindrical roller bearing (NN 30XX / N 10XX)
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF NN3008KTN/SP super-precision cylindrical roller bearing (nn 30xx / n 10xx). Super-precision (ISO 492 P4A / P2A) double-row (NN 30xx) or single-row (N 10xx) cylindrical roller bearing designed as the non-locating position on a machine-tool spindle. Very high radial rigidity and running accuracy. Tapered bore (K suffix) allows radial preload to be set at assembly. Fitted with a machined brass cage.
Technical Specifications
- Type
- Super-precision cylindrical roller bearing (NN 30xx / N 10xx)
- Designation
- SKF NN3008KTN/SP
- Bore d
- 40 mm
- HS code
- 8482.20
- Bore diameter
- 40 mm
- Outside diameter
- 68 mm
- Width
- 21 mm
- Basic dynamic load rating
- 42.9 kN
- Basic static load rating
- 56 kN
- Attainable speed for grease lubrication
- 13000 r/min
- Attainable speed for oil-air lubrication
- 15000 r/min
- Bearing part
- Complete bearing
- Number of rows
- 2
- Bore type
- Tapered 1:12
- Cage
- Non-metallic
- Design
- NN
- Number of flanges, outer ring
- 0
- Number of flanges, inner ring
- 3
- Loose flange
- None
- Radial internal clearance
- C1
- Tolerance class
- Class SP (SP)
- Material, bearing
- Bearing steel
- Coating
- Without
- Sealing
- Without
- Lubricant
- None
- Relubrication feature
- Without
- Indicative carbon footprint for new product
- 1 kg CO2e
- Product net weight
- 0.278 kg
- eClass code
- 23-05-09-01
- UNSPSC code
- 31171505
Standards & Compliance
- Standard
- SKF designation convention
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8482.20
Cross References
- FAG 3008
- NSK 3008
- GMN 3008
- Timken 3008
- Koyo 3008
- Equivalent: 3008 (FAG)
- Equivalent: 3008 (NSK)
- Equivalent: 3008 (GMN)
- Equivalent: 3008 (Timken)
- Equivalent: 3008 (Koyo)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
