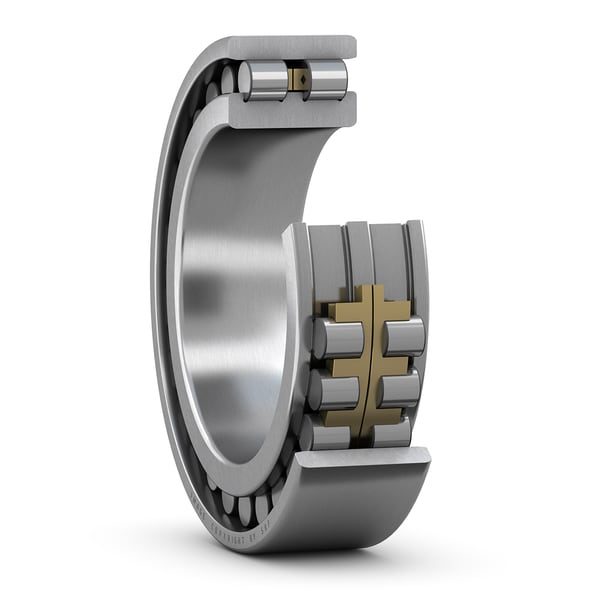

SKF NN3006/SP Super-precision cylindrical roller bearing (NN 30XX / N 10XX)

SKF NN3006/SP super-precision cylindrical roller bearing (nn 30xx / n 10xx). Super-precision (ISO 492 P4A / P2A) double-row (NN 30xx) or single-row (N 10xx) cylindrical roller bearing designed as the non-locating position on a machine-tool spindle. Very high radial rigidity and running accuracy. Tapered bore (K suffix) allows radial preload to be set at assembly. Fitted with a machined brass cage.

Type

Super-precision cylindrical roller bearing (NN 30xx / N 10xx)

Designation

SKF NN3006/SP

Bore d

30 mm

HS code

8482.20

Bore diameter

30 mm

Outside diameter

55 mm

Width

19 mm

Basic dynamic load rating

30.8 kN

Basic static load rating

37.5 kN

Attainable speed for grease lubrication

16000 r/min

Attainable speed for oil-air lubrication

18000 r/min

Bearing part

Complete bearing

Number of rows

2

Bore type

Cylindrical

Cage

Machined metal

Design

NN

Number of flanges, outer ring

0

Number of flanges, inner ring

3

Loose flange

None

Radial internal clearance

C1

Tolerance class

Class SP (SP)

Material, bearing

Bearing steel

Coating

Without

Sealing

Without

Lubricant

None

Relubrication feature

Without

Indicative carbon footprint for new product

0.72 kg CO2e

Product net weight

0.194 kg

eClass code

23-05-09-01

UNSPSC code

31171505

Standard

SKF designation convention

Material

As declared by SKF designation suffix

Temperature Range

Per SKF product data

HS Code

8482.20

• FAG 3006
• NSK 3006
• GMN 3006
• Timken 3006
• Koyo 3006
• Equivalent: 3006 (FAG)
• Equivalent: 3006 (NSK)
• Equivalent: 3006 (GMN)
• Equivalent: 3006 (Timken)
• Equivalent: 3006 (Koyo)
