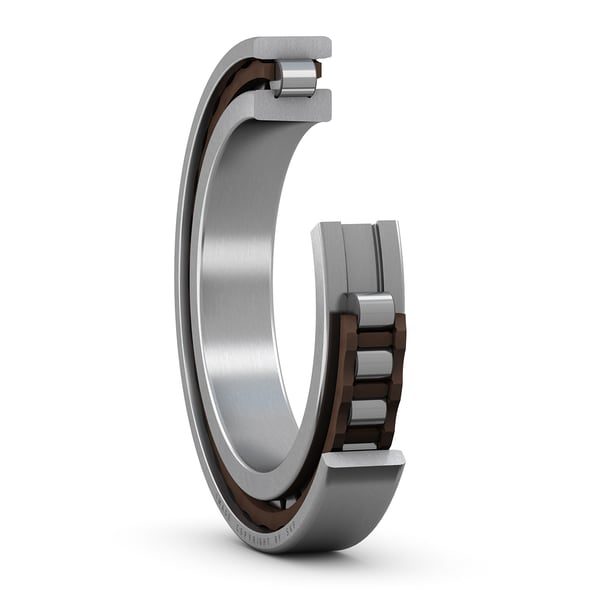

SKF N1013KPHA/SP Super-precision cylindrical roller bearing (NN 30XX / N 10XX)

SKF N1013KPHA/SP super-precision cylindrical roller bearing (nn 30xx / n 10xx). Super-precision (ISO 492 P4A / P2A) double-row (NN 30xx) or single-row (N 10xx) cylindrical roller bearing designed as the non-locating position on a machine-tool spindle. Very high radial rigidity and running accuracy. Tapered bore (K suffix) allows radial preload to be set at assembly. Fitted with a machined brass cage.

Type

Super-precision cylindrical roller bearing (NN 30xx / N 10xx)

Designation

SKF N1013KPHA/SP

Bore d

65 mm

HS code

8482.20

Bore diameter

65 mm

Outside diameter

100 mm

Width

18 mm

Basic dynamic load rating

42.9 kN

Basic static load rating

54 kN

Attainable speed for grease lubrication

20000 r/min

Attainable speed for oil-air lubrication

24000 r/min

Bearing part

Complete bearing

Number of rows

1

Bore type

Tapered 1:12

Cage

Non-metallic

Number of flanges, outer ring

0

Number of flanges, inner ring

2

Loose flange

None

Radial internal clearance

C1

Tolerance class

Class SP (SP)

Material, bearing

Bearing steel

Coating

Without

Sealing

Without

Lubricant

None

Relubrication feature

Without

Indicative carbon footprint for new product

1.6 kg CO2e

Product net weight

0.434 kg

eClass code

23-05-09-01

UNSPSC code

31171505

Standard

SKF designation convention

Material

As declared by SKF designation suffix

Temperature Range

Per SKF product data

HS Code

8482.20
