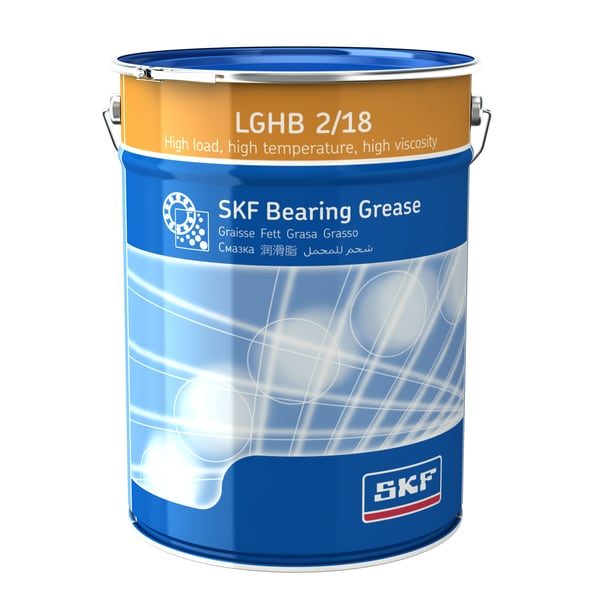

SKF High Load High Temperature Grease 18 kg Pail

SKF LGHB 2 high-viscosity, mineral-oil bearing grease on a complex calcium-sulphonate thickener for bearings under high load and high temperature in cement, mining and metals applications. 18 kg pail (designation LGHB 2/18).

SKF LGHB 2 high-load, high-temperature, high-viscosity bearing grease. High-viscosity mineral base oil thickened with a complex calcium-sulphonate soap; NLGI consistency class 2, DIN 51825 code KP2N-20. Its extreme-pressure and corrosion-protection performance comes from the soap structure rather than added EP agents. Used for heavily loaded bearings at high temperature in the cement, mining and metals segments, with good pumpability in centralised systems. Operating temperature range -20 to +150 degC, withstanding peak temperatures around 200 degC; dropping point 300 degC (DIN ISO 2176); base oil viscosity 425 mm2/s at 40 degC; penetration 265-295 (DIN ISO 2137). Supplied in the 18 kg pail, SKF order designation LGHB 2/18.

Suitable for High load applications

5 of 5

Suitable for Vertical shaft applications

3 of 5

Suitable for applications with Oscilating movements

5 of 5

Suitable for applications with Severe vibrations

4 of 5

Suitable for applications that require Rust protection

5 of 5

Suitable for applications that require Water resistance

5 of 5

Suitable for applications that require Frequent start-up

5 of 5

Operating temperature range

-20–150 °C

Load Range

Low - Very High C/P >0

Speed Range

Very low - Medium

Dropping point (min) ISO 2176

300 °C

Penetration DIN ISO 2137, Worked, 60 strokes (10⁻¹mm)

265 - 295

Mechanical stability, V2F test, 144 hrs

M

Corrosion protection, Emcor, ISO 11007, Distilled water

0-0

Corrosion protection, Emcor, ISO 11007 modified, 0.5% NaCl

0-0

Water resistance (max.) DIN 51807/1, 3 hrs at 90 °C

1

Oil separation DIN 51817, 40°C, %

1-3 at 60°C

Lubrication ability, R2F test B at 120°C

Pass at 140°C

EP performance - 4 ball - Weld load (min.) DIN 51350/4

4000 N

Recommended applications

Plain bearings;Conveyors;Applications with high loads and low speed

Category

Bearing grease

Lubricant

LGHB 2

NLGI consistency class

2

Base oil viscosity DIN 51562 at 40 °C

425 mm²/s

Base oil viscosity DIN 51562 at 100 °C

27.5 mm²/s

Biodegradable

No

Food Grade

No

DIN 51825 code

KP2N-20

Thickener

Calcium sulphonate complex

Colour

Brown

Base oil type

Mineral

Shelf life

5 year

Available for single point lubrication

yes

Country of Manufacturing (COM code)

16 - Netherlands

Product net weight

18 kg

eClass code

23-06-01-01

UNSPSC code

15121902

Temperature Range

-20 to +150 degC

HS Code

3403.19
