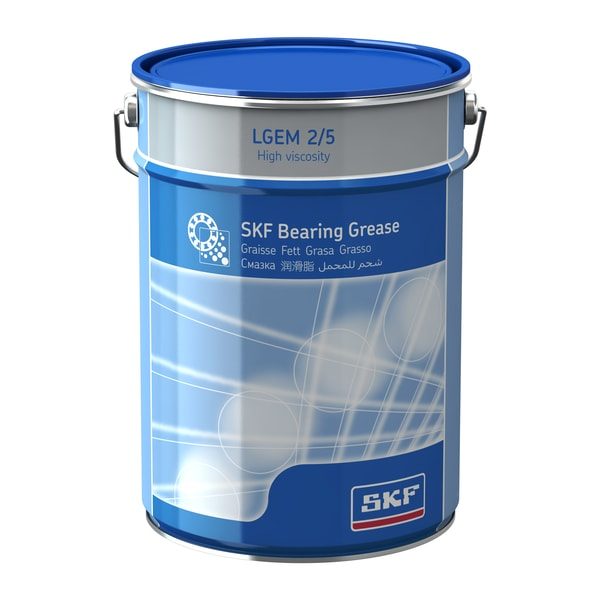

SKF High Viscosity Bearing Grease 5kg Can

SKF LGEM 2 high-viscosity mineral-oil bearing grease on a lithium/calcium soap, with molybdenum disulphide and graphite solid lubricants, NLGI 2, for high-load, heavy-vibration, slow-rotation bearings. 5 kg can (designation LGEM 2/5).

SKF LGEM 2 high-viscosity bearing grease with solid lubricants. High-viscosity mineral base oil thickened with a lithium/calcium soap, containing molybdenum disulphide (MoS2) and graphite for protection if the oil film breaks down; black, NLGI consistency class 2, DIN 51825 code KPF2K-20. Suited to rolling-element bearings running at low speed and very high loads, jaw crushers, track-laying machines, lift-mast wheels and building machines such as mechanical rams, crane arms and crane hooks. Operating temperature range -20 to +120 degC; dropping point >180 degC (DIN ISO 2176); base oil viscosity 500 mm2/s at 40 degC and 32 mm2/s at 100 degC; penetration 265-295 (DIN ISO 2137). Supplied in the 5 kg can, SKF order designation LGEM 2/5.

Weight

5 kg

Suitable for High load applications

5 of 5

Suitable for Vertical shaft applications

4 of 5

Suitable for applications with Oscilating movements

3 of 5

Suitable for applications with Severe vibrations

4 of 5

Suitable for applications that require Rust protection

4 of 5

Suitable for applications that require Water resistance

4 of 5

Suitable for applications that require Frequent start-up

5 of 5

Operating temperature range

-20–120 °C

Load Range

High - Very high C/P < 6

Speed Range

Low - Medium

Dropping point (min) ISO 2176

180 °C

Penetration DIN ISO 2137, Worked, 60 strokes (10⁻¹mm)

265 - 295

Mechanical stability, V2F test, 144 hrs

M

Corrosion protection, Emcor, ISO 11007, Distilled water

0-0

Corrosion protection, Emcor, ISO 11007 modified, 0.5% NaCl

2-2

Water resistance (max.) DIN 51807/1, 3 hrs at 90 °C

1

Oil separation DIN 51817, 40°C, %

1-5

Lubrication ability, R2F test B at 120°C

Pass at 100°C

EP performance - 4 ball - Weld load (min.) DIN 51350/4

3400 N

Recommended applications

Rolling element bearings running at kow speed and very high loads;Jaw crushers;Crane arms

Category

Bearing grease

Lubricant

LGEM 2

NLGI consistency class

2

Base oil viscosity DIN 51562 at 40 °C

500 mm²/s

Base oil viscosity DIN 51562 at 100 °C

32 mm²/s

Biodegradable

No

Food Grade

No

DIN 51825 code

KPF2K-20

Thickener

Lithium calcium

Colour

Black

Base oil type

Mineral

Shelf life

5 year

Available for single point lubrication

Yes

Country of Manufacturing (COM code)

11 - Sweden

Product net weight

5 kg

eClass code

23-06-01-01

UNSPSC code

15121902

Temperature Range

-20 to +120 degC

HS Code

3403.19
