SKF HM88649/VA983 Single-row tapered roller bearing
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF HM88649/VA983 single-row tapered roller bearing. Single-row tapered roller bearing designed to take combined heavy radial and one-direction axial load. Cone (inner ring), cup (outer ring) and rollers converge at a common apex on the bearing axis. Two bearings are always mounted in opposition. Metric dimensions per ISO 355; imperial to ANSI/ABMA 19.1.
Technical Specifications
- Type
- Single-row tapered roller bearing
- Designation
- SKF HM88649/VA983
- HS code
- 8482.20
- Bore diameter
- 34.925 mm
- Width, total
- 25.4 mm
- Width, inner ring
- 25.4 mm
- Basic dynamic load rating
- 66.7 kN
- Basic static load rating
- 80 kN
- Bearing part
- Inner ring, cage and roller assembly (cone assembly)
- Bore type
- Cylindrical
- Cage
- Sheet metal
- Coating
- Without
- Sealing
- Without
- Lubricant
- None
- Relubrication feature
- Without
- Indicative carbon footprint for new product
- 1.1 kg CO2e
- Product net weight
- 0.303 kg
- eClass code
- 23-05-09-10
- UNSPSC code
- 31171516
Standards & Compliance
- Standard
- SKF designation convention
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8482.20
Cross References
- Timken 88649983
- NSK 88649983
- NTN 88649983
- FAG 88649983
- Koyo 88649983
- Equivalent: 88649983 (Timken)
- Equivalent: 88649983 (NSK)
- Equivalent: 88649983 (NTN)
- Equivalent: 88649983 (FAG)
- Equivalent: 88649983 (Koyo)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
Product Documentation
More from SKF
SKF
SKF NJ311ECP/C4 Single-row cylindrical roller bearing (NU / N / NJ / NUP)
SKF
SKF FY30WF Flanged ball bearing unit (UCF / UCFC / UCFL)
SKF

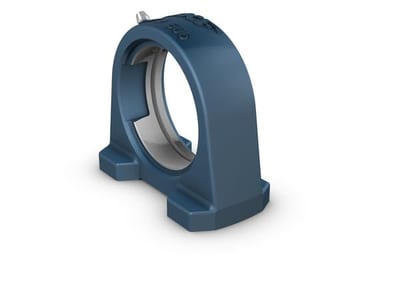

SKF SYFJ504 Pillow block ball bearing unit (UCP / UEP / UKP)
