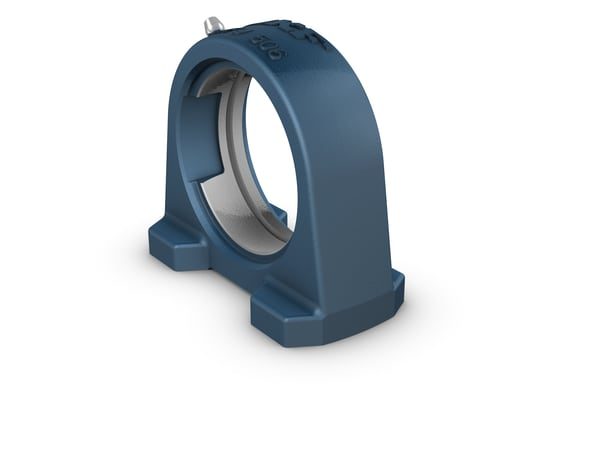

SKF SYFJ505 Pillow block ball bearing unit (UCP / UEP / UKP)
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF SYFJ505 pillow block ball bearing unit (ucp / uep / ukp). Two-bolt pillow-block cast-iron, SG-iron or thermoplastic housing pre-assembled with a spherical-outer-ring insert bearing. Absorbs shaft-to-support misalignment during assembly and in service. Standard shaft attachment is set-screw (UCP); eccentric locking collar (UEP) and adapter-sleeve (UKP) variants available. Dimensioned to ISO 3228 / DIN 626.
Technical Specifications
- Type
- Pillow block ball bearing unit (UCP / UEP / UKP)
- Designation
- SKF SYFJ505
- HS code
- 8483.20
- Spherical seating diameter
- 52 mm
- Centre height (pillow block)
- 36.5 mm
- Housing overall width
- 38 mm
- Centre distance between bolt holes
- 56 mm
- Housing type
- Pillow block, short base
- Number of bolt holes for fasteners
- 2
- Fastening bolt hole type
- Threaded
- Material, housing
- Cast iron
- Coating
- Without
- Relubrication hole
- With
- Grease fitting
- With
- Product net weight
- 0.504 kg
- eClass code
- 23-05-16-02
- UNSPSC code
- 31171536
Standards & Compliance
- Standard
- SKF designation convention
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8483.20
Cross References
- NTN 505
- NSK 505
- FAG 505
- Koyo 505
- ASAHI 505
- Equivalent: 505 (NTN)
- Equivalent: 505 (NSK)
- Equivalent: 505 (FAG)
- Equivalent: 505 (Koyo)
- Equivalent: 505 (ASAHI)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
Product Documentation
More from SKF
SKF
SKF HM89446/2/QCL7C Single-row tapered roller bearing
SKF
SKF NJ312ECJ/C3 Single-row cylindrical roller bearing (NU / N / NJ / NUP)
SKF
SKF FY35LF Flanged ball bearing unit (UCF / UCFC / UCFL)
SKF
SKF SYFJ506 Pillow block ball bearing unit (UCP / UEP / UKP)
SKF
SKF HM89449/2/QCL7C Single-row tapered roller bearing
SKF
SKF NJ312ECM Single-row cylindrical roller bearing (NU / N / NJ / NUP)
SKF
SKF SYFJ507 Pillow block ball bearing unit (UCP / UEP / UKP)
SKF
SKF HM903249/2/210/2/Q Single-row tapered roller bearing
Technical guides
Catalogue entry last verified: 2026-08-13. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy SYFJ505?
- SYFJ505 can be ordered from cballast.com as a SKF catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this SKF product?
- The manufacturer part number is SYFJ505.
- What is the HS code for SYFJ505?
- The customs tariff (HS) code for SYFJ505 is 8483.20.
- Who manufactures SYFJ505?
- SYFJ505 is a SKF product in the Bearings & Power Transmission range.
- Is a datasheet available for SYFJ505?
- Yes — the SYFJ505 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for SYFJ505?
- The minimum order quantity is 1.
- Is SYFJ505 available?
- Yes — SYFJ505 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
