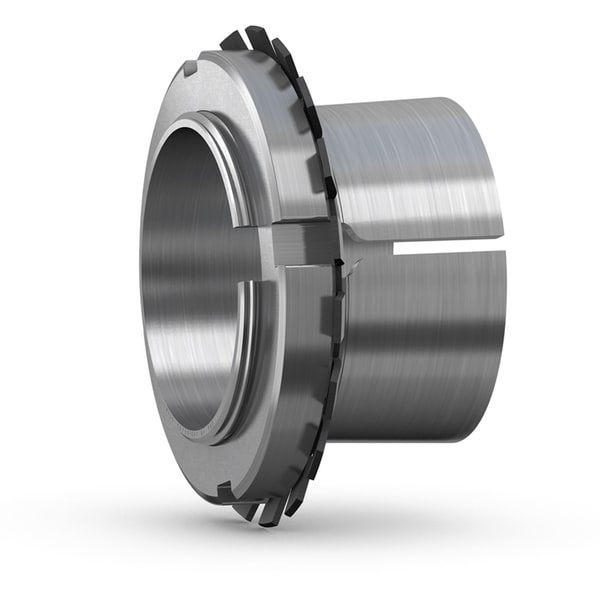

SKF HA2309 Adapter sleeve
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF HA2309 adapter sleeve. Tapered sleeve fitting between a straight shaft and a tapered-bore bearing (spherical roller, self-aligning ball, CARB toroidal roller). Combined with a lock nut and locking device, provides tight fit and correct radial internal clearance without shaft shoulders. Standard designation prefix H (metric H2xxx / H3xxx / H30xx / H31xx / H32xx / HE3xx). Dimensioned to ISO 113.
Technical Specifications
- Type
- Adapter sleeve Designation: SKF HA2309 Bore d: 45 mm HS code: 8483.30 Bore diameter: 36.513 mm Width: 50 mm Thread designation: M 45x1.5 Taper: 1:12 Holes for oil injection: Without Product net weight: 0.35 kg eClass code: 23-11-07-05 UNSPSC code: 31163218
Standards & Compliance
- Standard
- SKF designation convention (see description for governing ISO / DIN)
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8483.30
Cross References
- FAG 2309
- NSK 2309
- Timken 2309
- NTN 2309
- Koyo 2309
- Equivalent: 2309 (FAG)
- Equivalent: 2309 (NSK)
- Equivalent: 2309 (Timken)
- Equivalent: 2309 (NTN)
- Equivalent: 2309 (Koyo)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
Product Documentation
More from SKF
SKF
SKF KDN.JG140XP0K Thin-section ball bearing (Reali-Slim)
SKF
SKF NK45/20 Needle roller bearing (machined rings)
SKF
SKF PCM202325M Plain sleeve bushing
SKF
SKF OR126.67X2.62-N70 O-ring / back-up ring
SKF
SKF P2B315-SRB-SRH Roller-bearing pillow-block unit
SKF
SKF PGR280X272X60-PF Hydraulic guide ring / wear ring / bearing strip
SKF
SKF PHC100-1C/L-XP Roller chain
SKF
SKF PHFJA-1-1/8 QD (Quick Disconnect) bushing
Technical guides
- Adapter Sleeve and Withdrawal Sleeve Finder — H 2xx / H 3xx, HA, HE, OH, SNW (inch), AH / AHX / AOH by Shaft Diameter (SKF)
- SKF 81xxx Cylindrical Roller Thrust Bearing — Dimensions, Load Ratings & Interchange (81102 to 81140)
- SKF Deep Groove Ball Bearing Reference — 6000 / 6200 / 6300 / 6400 Series (Dimensions, Load Ratings, Interchange to FAG NSK NTN Timken)
Catalogue entry last verified: 2026-08-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy HA2309?
- HA2309 can be ordered from cballast.com as a SKF catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this SKF product?
- The manufacturer part number is HA2309.
- What is the HS code for HA2309?
- The customs tariff (HS) code for HA2309 is 8483.30.
- Who manufactures HA2309?
- HA2309 is a SKF product in the Bearings & Power Transmission range.
- Is a datasheet available for HA2309?
- Yes — the HA2309 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for HA2309?
- The minimum order quantity is 1.
- Is HA2309 available?
- Yes — HA2309 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
