SKF H310E Adapter sleeve
Pricing
Request a quote
We reply within 24 hours
Product Description

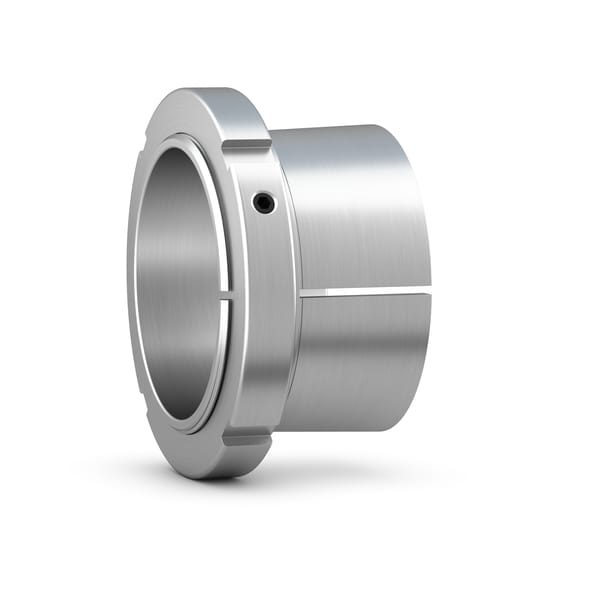

SKF H310E adapter sleeve. Tapered sleeve fitting between a straight shaft and a tapered-bore bearing (spherical roller, self-aligning ball, CARB toroidal roller). Combined with a lock nut and locking device, provides tight fit and correct radial internal clearance without shaft shoulders. Standard designation prefix H (metric H2xxx / H3xxx / H30xx / H31xx / H32xx / HE3xx). Dimensioned to ISO 113.
Technical Specifications
- Type
- Adapter sleeve Designation: SKF H310E Bore d: 50 mm HS code: 8483.30 Bore diameter: 45 mm Width: 42 mm Thread designation: M50x1.5 Taper: 1:12 Holes for oil injection: Without Product net weight: 0.32 kg eClass code: 23-11-07-05 UNSPSC code: 31163218
Standards & Compliance
- Standard
- SKF designation convention (see description for governing ISO / DIN)
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8483.30
Cross References
- FAG 310
- NSK 310
- Timken 310
- NTN 310
- Koyo 310
- Equivalent: 310 (FAG)
- Equivalent: 310 (NSK)
- Equivalent: 310 (Timken)
- Equivalent: 310 (NTN)
- Equivalent: 310 (Koyo)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
