SKF H309C — Adapter sleeve
SKF · Bearings & Power Transmission · Adapter Sleeves

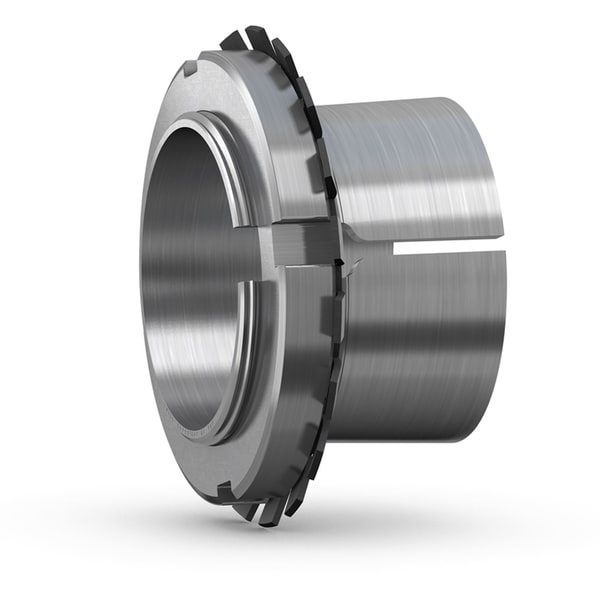

SKF H309C adapter sleeve. Tapered sleeve fitting between a straight shaft and a tapered-bore bearing (spherical roller, self-aligning ball, CARB toroidal roller). Combined with a lock nut and locking device, provides tight fit and correct radial internal clearance without shaft shoulders. Standard designation prefix H (metric H2xxx / H3xxx / H30xx / H31xx / H32xx / HE3xx). Dimensioned to ISO 113. Designation follows the SKF alphanumeric identification convention where the numeric block encodes the boundary plan and the suffix declares execution options (material, sealing, cage, precision, clearance, lubricant). Genuine SKF supply carries the SKF logo etch or moulded mark and hologram-authenticated packaging.
Specifications
- Part number
- H309C
- HS code
- 8483.30
- Material
- As declared by SKF designation suffix
- Temperature range
- Per SKF product data
- Standard
- SKF designation convention (see description for governing ISO / DIN)
Compatibility
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
Also known as — OEM cross-references & superseded numbers
- FAG 309
- NSK 309
- Timken 309
- NTN 309
- Koyo 309
- Competitor equivalent: 309 (FAG)
- Competitor equivalent: 309 (NSK)
- Competitor equivalent: 309 (Timken)
- Competitor equivalent: 309 (NTN)
- Competitor equivalent: 309 (Koyo)
