SKF H2328 Adapter sleeve
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF H2328 adapter sleeve. Tapered sleeve fitting between a straight shaft and a tapered-bore bearing (spherical roller, self-aligning ball, CARB toroidal roller). Combined with a lock nut and locking device, provides tight fit and correct radial internal clearance without shaft shoulders. Standard designation prefix H (metric H2xxx / H3xxx / H30xx / H31xx / H32xx / HE3xx). Dimensioned to ISO 113.
Technical Specifications
- Type
- Adapter sleeve Designation: SKF H2328 Bore d: 140 mm HS code: 8483.30 Bore diameter: 125 mm Width: 131 mm Thread designation: M140x2 Taper: 1:12 Holes for oil injection: Without Product net weight: 5.38 kg eClass code: 23-11-07-05 UNSPSC code: 31163218
Standards & Compliance
- Standard
- SKF designation convention (see description for governing ISO / DIN)
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8483.30
Cross References
- FAG 2328
- NSK 2328
- Timken 2328
- NTN 2328
- Koyo 2328
- Equivalent: 2328 (FAG)
- Equivalent: 2328 (NSK)
- Equivalent: 2328 (Timken)
- Equivalent: 2328 (NTN)
- Equivalent: 2328 (Koyo)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
Product Documentation
More from SKF
SKF
SKF KDN.JA042XP0A Thin-section ball bearing (Reali-Slim)
SKF

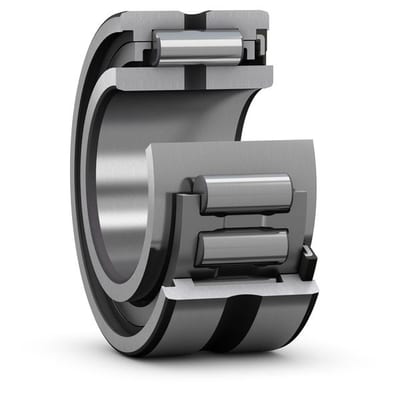

SKF NA4907RS Needle roller bearing (machined rings)
SKF
SKF PCM081010E Plain sleeve bushing
SKF
SKF OR106.0X4.0-N70 O-ring / back-up ring
SKF
SKF P2B115-SRB-SRH Roller-bearing pillow-block unit
SKF
SKF PGR125X119X40-PF Hydraulic guide ring / wear ring / bearing strip
SKF
SKF PHC05B-2O/L Roller chain
SKF
SKF PHFE-60MM QD (Quick Disconnect) bushing
Technical guides
- Adapter Sleeve and Withdrawal Sleeve Finder — H 2xx / H 3xx, HA, HE, OH, SNW (inch), AH / AHX / AOH by Shaft Diameter (SKF)
- SKF 81xxx Cylindrical Roller Thrust Bearing — Dimensions, Load Ratings & Interchange (81102 to 81140)
- SKF Deep Groove Ball Bearing Reference — 6000 / 6200 / 6300 / 6400 Series (Dimensions, Load Ratings, Interchange to FAG NSK NTN Timken)
Catalogue entry last verified: 2026-08-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy H2328?
- H2328 can be ordered from cballast.com as a SKF catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this SKF product?
- The manufacturer part number is H2328.
- What is the HS code for H2328?
- The customs tariff (HS) code for H2328 is 8483.30.
- Who manufactures H2328?
- H2328 is a SKF product in the Bearings & Power Transmission range.
- Is a datasheet available for H2328?
- Yes — the H2328 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for H2328?
- The minimum order quantity is 1.
- Is H2328 available?
- Yes — H2328 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
