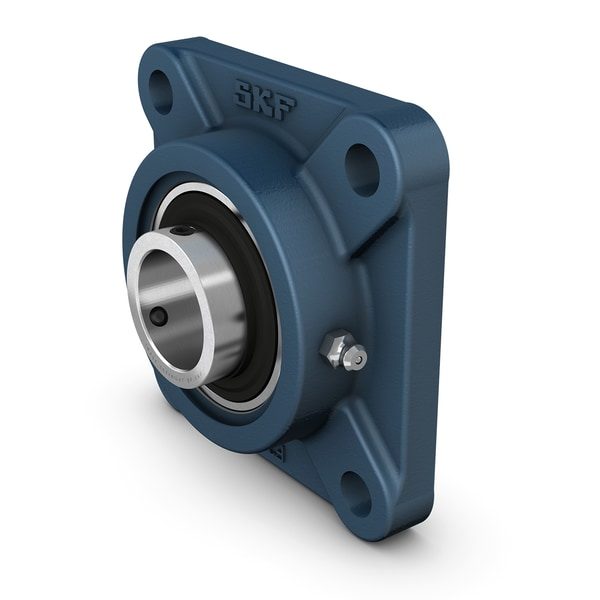

SKF FY17TF Flanged ball bearing unit (UCF / UCFC / UCFL)
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF FY17TF flanged ball bearing unit (ucf / ucfc / ucfl). Square four-bolt (UCF), round three-bolt (UCFC) or oval two-bolt (UCFL) flanged housing pre-assembled with a spherical-outer-ring insert bearing. Absorbs shaft-to-housing misalignment on assembly. Set-screw shaft attachment on standard UC-series insert; eccentric-collar (UEL) or adapter-sleeve (UK) variants available. Dimensioned to ISO 3228 / DIN 626.
Technical Specifications
- Type
- Flanged ball bearing unit (UCF / UCFC / UCFL)
- Designation
- SKF FY17TF
- HS code
- 8483.20
- Shaft diameter
- 17 mm
- Housing overall width
- 26 mm
- Width, total
- 32.9 mm
- Centre distance between bolt holes
- 54 mm
- Bearing width, total
- 27.4 mm
- Attachment bolt diameter
- 10 mm
- Basic dynamic load rating
- 9.56 kN
- Basic static load rating
- 4.75 kN
- Limiting speed
- 9500 r/min
- Note
- Limiting speed with shaft tolerance h6
- Housing type
- Flanged
- Flanged housing type
- Square
- Number of bolt holes for fasteners
- 4
- Fastening bolt hole type
- Plain
- Retaining feature, inner ring
- Set screws
- Bore type
- Cylindrical
- Rubber seating ring
- Without
- Material, housing
- Cast iron
- Material, bearing
- Bearing steel
- Coating
- Without
- Sealing, bearing
- Seal and flinger on both sides
- Sealing type
- Contact, standard
- Sealing, unit
- Optional end cover
- Lubricant
- Grease
- Relubrication hole
- With
- Grease fitting
- With
- Product net weight
- 0.373 kg
- eClass code
- 23-05-08-02
- UNSPSC code
- 31171536
Standards & Compliance
- Standard
- SKF designation convention
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8483.20
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
Product Documentation
More from SKF
SKF

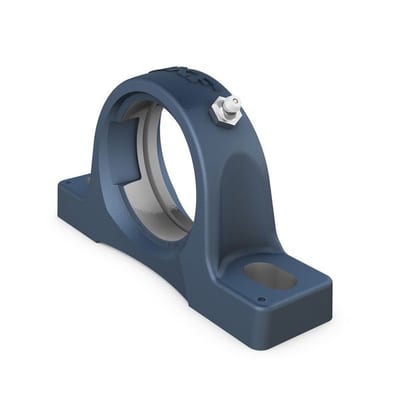

SKF SY510M Pillow block ball bearing unit (UCP / UEP / UKP)
SKF
SKF H913849/810/CL7CVK318 Single-row tapered roller bearing
SKF

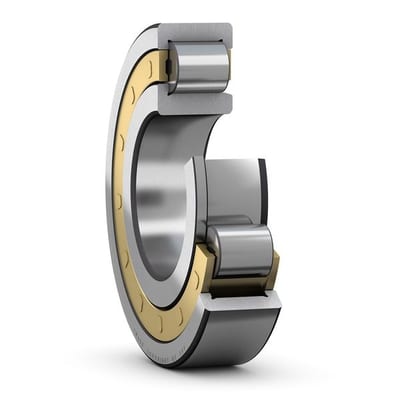

SKF NJ306ECM Single-row cylindrical roller bearing (NU / N / NJ / NUP)
SKF

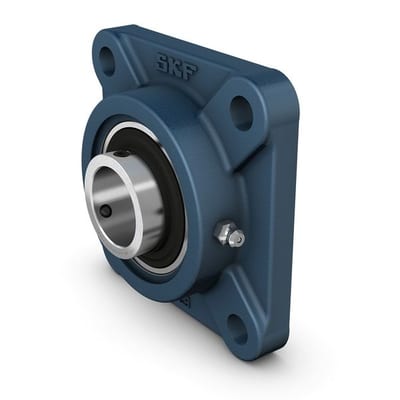

SKF FY2.1/2TF Flanged ball bearing unit (UCF / UCFC / UCFL)
SKF
SKF SY511M Pillow block ball bearing unit (UCP / UEP / UKP)
SKF
SKF HH224335/310 Single-row tapered roller bearing
SKF

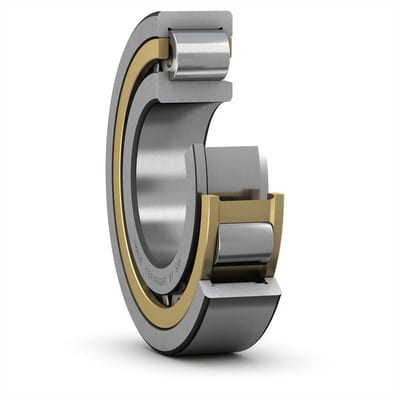

SKF NJ306ECML Single-row cylindrical roller bearing (NU / N / NJ / NUP)
