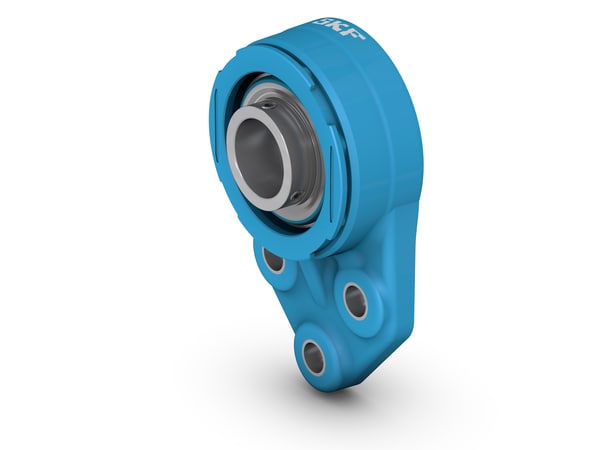

SKF F3BBC015-TPZM Flanged ball bearing unit (UCF / UCFC / UCFL)

SKF F3BBC015-TPZM flanged ball bearing unit (ucf / ucfc / ucfl). Square four-bolt (UCF), round three-bolt (UCFC) or oval two-bolt (UCFL) flanged housing pre-assembled with a spherical-outer-ring insert bearing. Absorbs shaft-to-housing misalignment on assembly. Set-screw shaft attachment on standard UC-series insert; eccentric-collar (UEL) or adapter-sleeve (UK) variants available. Dimensioned to ISO 3228 / DIN 626.

Type

Flanged ball bearing unit (UCF / UCFC / UCFL)

Designation

SKF F3BBC015-TPZM

HS code

8483.20

Shaft diameter

23.813 mm

Housing overall width

29 mm

Bearing width, total

34.1 mm

Attachment bolt diameter

9.525 mm

Basic dynamic load rating

14 kN

Basic static load rating

7.8 kN

Limiting speed

4300 r/min

Note

Limiting speed with shaft tolerance h6

Housing type

Flanged

Flanged housing type

3-bolt bracket

Number of bolt holes for fasteners

3

Fastening bolt hole type

Plain

Retaining feature, inner ring

Set screws

Bore type

Cylindrical

Rubber seating ring

Without

Material, housing

Composite for the SKF Food Line

Material, bearing

Bearing steel

Coating

Zinc-coated bearing

Sealing, bearing

Seal and flinger on both sides

Sealing type

Contact, gutter

Sealing, unit

Optional end cover

Lubricant

Grease

Relubrication hole

Without

Grease fitting

Without

Product net weight

0.3 kg

eClass code

23-05-08-02

UNSPSC code

31171536

Standard

SKF designation convention

Material

As declared by SKF designation suffix

Temperature Range

Per SKF product data

HS Code

8483.20

• NTN 3015
• NSK 3015
• FAG 3015
• Koyo 3015
• ASAHI 3015
• Equivalent: 3015 (NTN)
• Equivalent: 3015 (NSK)
• Equivalent: 3015 (FAG)
• Equivalent: 3015 (Koyo)
• Equivalent: 3015 (ASAHI)
