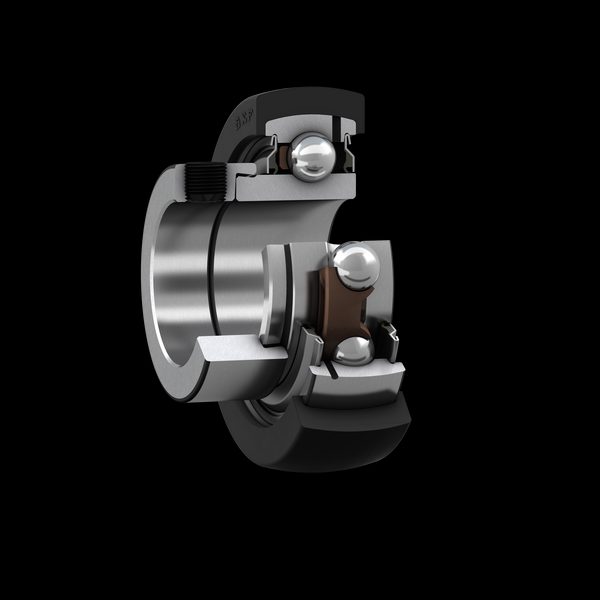

SKF CYS40FM Insert bearing (YAR / YET / YSA / YEL)
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF CYS40FM insert bearing (yar / yet / ysa / yel). Spherical-outer-ring insert ball bearing suited to drop-in mounting in a pillow-block, flanged, take-up or tapped-base housing. Set-screw (YAR), eccentric locking collar (YET), adapter-sleeve (YSA), or grub-screw double-lock (YEL) shaft attachment per suffix. Sealed for life with grease; regreasable variants add a lubrication nipple to the outer ring.
Technical Specifications
- Type
- Insert bearing (YAR / YET / YSA / YEL)
- Designation
- SKF CYS40FM
- HS code
- 8482.10
- Bore diameter
- 40 mm
- Outside diameter
- 85.3 mm
- Width, total
- 44.7 mm
- Width, inner ring
- 29.7 mm
- Width, outer ring
- 21 mm
- Basic dynamic load rating
- 30.7 kN
- Basic static load rating
- 19 kN
- Limiting speed
- 4800 r/min
- Note
- Limiting speed with shaft tolerance h6
- Retaining feature, inner ring
- Eccentric collar
- Bore type
- Cylindrical
- Rolling elements
- Balls
- Outer ring type
- Spherical
- Inner ring extension
- On one side
- Cage
- Non-metallic
- Rubber seating ring
- With
- Material, bearing
- Bearing steel
- Coating
- Without
- Sealing
- Seal on both sides
- Sealing type
- Contact, standard
- Lubricant
- Grease
- Relubrication feature
- With
- Product net weight
- 0.614 kg
- eClass code
- 23-05-08-02
- UNSPSC code
- 31171536
Standards & Compliance
- Standard
- SKF designation convention (see description for governing ISO / DIN)
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8482.10
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
Product Documentation
More from SKF
SKF
SKF GE120ES-2RS Radial spherical plain bearing
SKF
SKF DTW-170X183X8-J2G Hydraulic rod wiper seal
SKF
SKF 7000CEGA/P4A Super-precision angular contact ball bearing
SKF
SKF HM30/800 Bearing lock nut (keyway type)
SKF

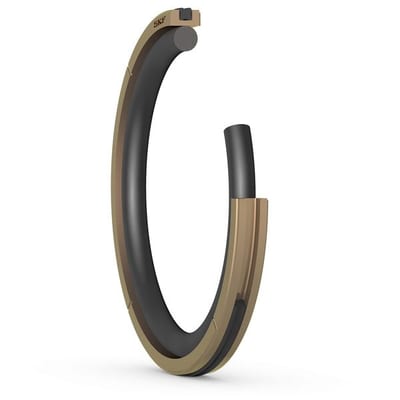

SKF APR2-1750-AD1 Hydraulic piston seal
