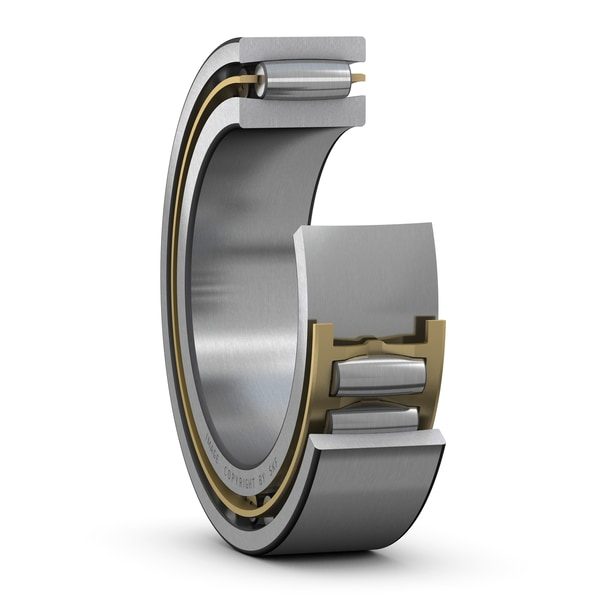

SKF C39/560KM CARB toroidal roller bearing (C xxxx)
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF C39/560KM carb toroidal roller bearing (c xxxx). Single-row roller bearing with long, slightly crowned rollers rolling in a toroidal outer raceway — combines the self-alignment of a spherical roller bearing with the axial-displacement capability of a cylindrical roller bearing. Fitted on the non-locating shaft position of a paired shaft arrangement so shaft thermal expansion is absorbed internally.
Technical Specifications
- Type
- CARB toroidal roller bearing (C xxxx)
- Designation
- SKF C39/560KM
- Bore d
- 560 mm
- HS code
- 8482.20
- Bore diameter
- 560 mm
- Outside diameter
- 750 mm
- Width
- 140 mm
- Basic dynamic load rating
- 3600 kN
- Basic static load rating
- 7350 kN
- Reference speed
- 600 r/min
- Limiting speed
- 850 r/min
- SKF performance class
- SKF Explorer
- Number of rows
- 1
- Locating feature, bearing outer ring
- Without
- Bore type
- Tapered 1:12
- Cage
- Machined brass
- Radial internal clearance
- CN
- Tolerance class
- Normal
- Sealing
- Without
- Lubricant
- None
- Relubrication feature
- Without
- Candidate for remanufacturing
- Yes
- Indicative carbon footprint for new product
- 629 kg CO2e
- Indicative carbon footprint for remanufactured product
- 209 kg CO2e
- Product net weight
- 170 kg
- eClass code
- 23-05-09-13
- UNSPSC code
- 31171505
Standards & Compliance
- Standard
- SKF designation convention
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8482.20
Cross References
- FAG 39560
- NSK 39560
- SKF-only design 39560
- Equivalent: 39560 (FAG)
- Equivalent: 39560 (NSK)
- Equivalent: 39560 (SKF-only design)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
