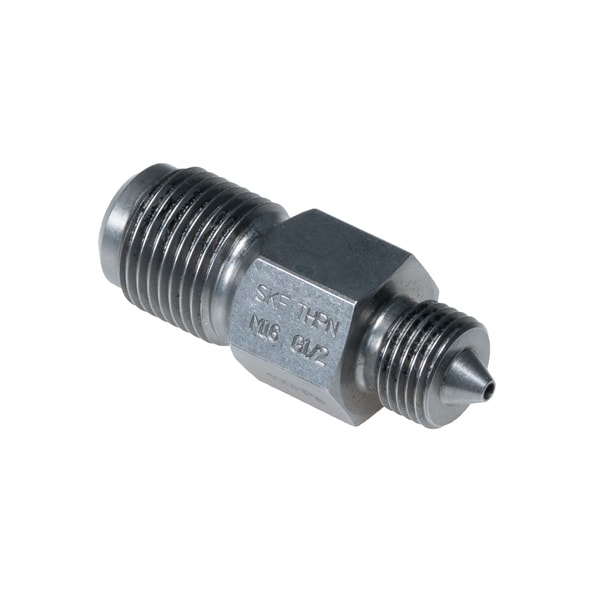

SKF THPNM16G1/2 Hydraulic bearing mounting / dismounting tool
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF THPNM16G1/2 hydraulic bearing mounting / dismounting tool. Hydraulic pump, oil injector, or hydraulically-driven nut used to mount a large tapered-bore bearing to its correct radial internal clearance, and to dismount it without shaft damage. SKF HMV-E hydraulic nut, TMHP / THAP pump, or SKF Drive-up-Method oil-pressure kit.
Technical Specifications
- Type
- Hydraulic bearing mounting / dismounting tool
- Designation
- SKF THPNM16G1/2
- HS code
- 8412.29
- Connecting thread 1
- M16x1.5
- Connecting thread 2
- G 1/2
- Width across flats
- 22 mm
- Connecting cone diameter
- 13 mm
- Total length
- 60 mm
- Length of connecting thread 2
- 20 mm
- Maximum pressure
- 4000 bar
- Series
- Hydraulic connection nipple
- Version
- THPN
- Suitable for use with quick connection nipple
- Yes
- Type of connecting thread 1
- Male
- Type of connecting thread 2
- Male
- Maximum pressure (MPa)
- 400 MPa
- Connection type
- Straight
- Material
- Chromium molybdenum steel, hardened and tempered
- Colour
- Metallic
- Country of Manufacturing (COM code)
- 16 - Netherlands
- Product net weight
- 0.128 kg
- eClass code
- 23-05-19-01
- UNSPSC code
- 27112908
Standards & Compliance
- Standard
- SKF designation convention
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8412.29
Cross References
- Enerpac 1612
- Simatec 1612
- Equivalent: 1612 (Enerpac)
- Equivalent: 1612 (Simatec)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
