SKF AOH3040 Withdrawal sleeve
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF AOH3040 withdrawal sleeve. Tapered sleeve installed between a stepped shaft shoulder and a tapered-bore bearing, then pushed on by a lock nut against the shaft shoulder. Designed to dismount the bearing hydraulically (oil-injection groove and thread) — no puller required. Standard series AH / AHX. Dimensioned to ISO 113.
Technical Specifications
- Type
- Withdrawal sleeve
- Designation
- SKF AOH3040
- HS code
- 8483.30
- Bore diameter
- 190 mm
- Width
- 170 mm
- Thread designation
- Tr 215x4
- Taper
- 1:12
- Holes for oil injection
- With
- Product net weight
- 3.81 kg
- eClass code
- 23-11-07-05
- UNSPSC code
- 31163218
Standards & Compliance
- Standard
- SKF designation convention
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8483.30
Cross References
- FAG 3040
- NSK 3040
- Timken 3040
- NTN 3040
- Koyo 3040
- Equivalent: 3040 (FAG)
- Equivalent: 3040 (NSK)
- Equivalent: 3040 (Timken)
- Equivalent: 3040 (NTN)
- Equivalent: 3040 (Koyo)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
Product Documentation
More from SKF
SKF
SKF C3080M CARB toroidal roller bearing (C xxxx)
SKF

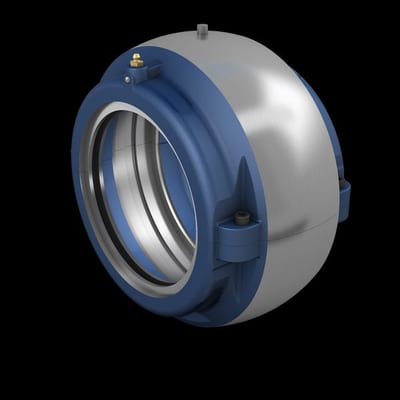

SKF COP.100C100MEX Cooper split roller bearing
SKF
SKF F2BC20M-TPSS Flanged ball bearing unit (UCF / UCFC / UCFL)
SKF

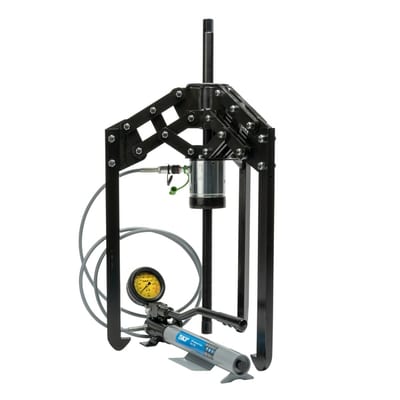

SKF TMHP30/350 Bearing mounting / dismounting tool
