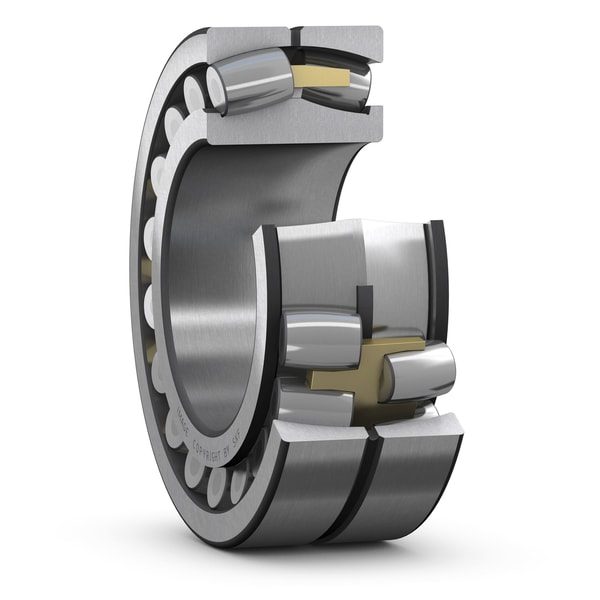

SKF 24188ECAK30/W77 Spherical roller bearing

SKF 24188ECAK30/W77 spherical roller bearing. Self-aligning double-row spherical roller bearing designed for very heavy radial load with concurrent axial load in either direction, and inherent tolerance for shaft-to-housing misalignment. Two rows of symmetrical rollers ride on a common concave outer-ring raceway. Common execution suffixes cover CC (window-type cage), CA (machined brass cage), EK (tapered bore for adapter-sleeve mount), and W33 (annular groove and three lubrication holes in outer ring). Manufactured to ISO 492 Class Normal / P6. Bore diameter d = 385 mm per ISO 15.

Type

Spherical roller bearing

Designation

SKF 24188ECAK30/W77

Standard

ISO 15 / DIN 623 dimension plan; ISO 492 Class Normal precision

HS code

8482.20

Bore diameter

440 mm

Outside diameter

720 mm

Width

280 mm

Basic dynamic load rating

7777 kN

Basic static load rating

13200 kN

Reference speed

300 r/min

Limiting speed

450 r/min

SKF performance class

SKF Explorer

Number of rows

2

Locating feature, bearing outer ring

Without

Bore type

Tapered 1:30

Cage

Machined brass

Radial internal clearance

CN

Tolerance class for dimensions

Normal

Tolerance class for run-out

Normal

Sealing

Without

Lubricant

None

Relubrication feature

With

Candidate for remanufacturing

Yes

Indicative carbon footprint for new product

1621 kg CO2e

Indicative carbon footprint for remanufactured product

539 kg CO2e

Product net weight

438 kg

eClass code

23-05-09-11

UNSPSC code

31171510

Standard

ISO 15 / ISO 492 / DIN 623

Material

Bearing steel — 100Cr6 (through-hardened) or SNR-nitrided; cage as declared by suffix

Temperature Range

-30 to +120 °C standard grease

HS Code

8482.20

• Timken 241883077
• NSK 241883077
• NTN 241883077
• FAG 241883077
• Koyo 241883077
• SKF 24188ECAK30
• Equivalent: 241883077 (Timken)
• Equivalent: 241883077 (NSK)
• Equivalent: 241883077 (NTN)
• Equivalent: 241883077 (FAG)
• Equivalent: 241883077 (Koyo)
• Supersedes: 24188ECAK30 (SKF)
