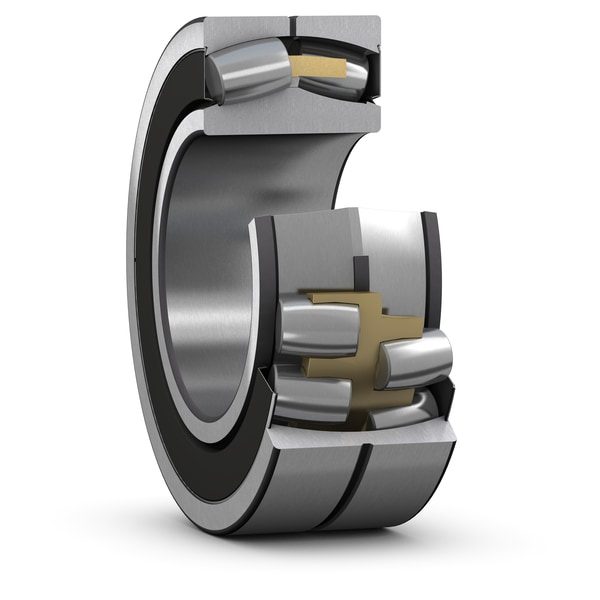

SKF 24196-2CS5K30/C3HGEA8 Spherical roller bearing

SKF 24196-2CS5K30/C3HGEA8 spherical roller bearing. Self-aligning double-row spherical roller bearing designed for very heavy radial load with concurrent axial load in either direction, and inherent tolerance for shaft-to-housing misalignment. Two rows of symmetrical rollers ride on a common concave outer-ring raceway. Common execution suffixes cover CC (window-type cage), CA (machined brass cage), EK (tapered bore for adapter-sleeve mount), and W33 (annular groove and three lubrication holes in outer ring). Manufactured to ISO 492 Class Normal / P6.

Type

Spherical roller bearing

Designation

SKF 24196-2CS5K30/C3HGEA8

Standard

ISO 15 / DIN 623 dimension plan; ISO 492 Class Normal precision

Bore d

480 mm

HS code

8482.20

Bore diameter

480 mm

Outside diameter

790 mm

Width

308 mm

Basic dynamic load rating

9215 kN

Basic static load rating

15600 kN

Limiting speed

47 r/min

SKF performance class

SKF Explorer

Number of rows

2

Locating feature, bearing outer ring

Without

Bore type

Tapered 1:30

Cage

Machined brass

Radial internal clearance

C3H

Tolerance class for dimensions

Normal

Tolerance class for run-out

Normal

Sealing

Seal on both sides

Sealing type

Contact

Lubricant

Grease

Relubrication feature

With

Candidate for remanufacturing

Yes

Indicative carbon footprint for new product

2187 kg CO2e

Indicative carbon footprint for remanufactured product

727 kg CO2e

Product net weight

591 kg

eClass code

23-05-09-11

UNSPSC code

31171510

Standard

ISO 15 / ISO 492 / DIN 623

Material

Bearing steel — 100Cr6 (through-hardened) or SNR-nitrided; cage as declared by suffix

Temperature Range

-30 to +120 °C standard grease

HS Code

8482.20
