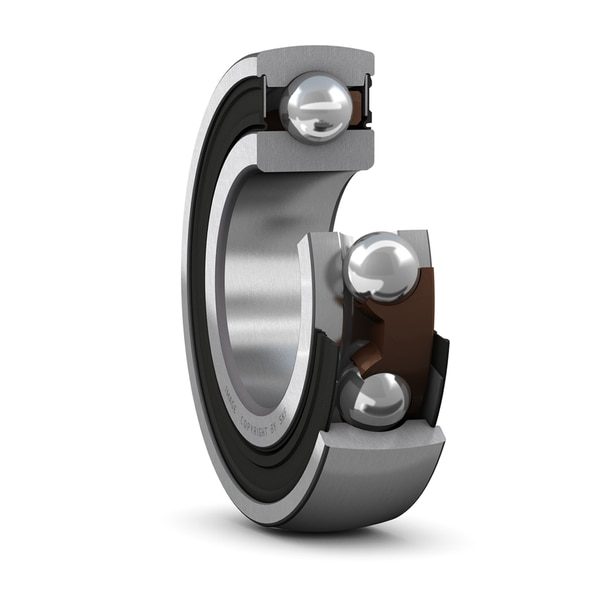

SKF 1726308-2RS1 Insert bearing (YAR / YET / YSA / YEL)

SKF 1726308-2RS1 insert bearing (yar / yet / ysa / yel). Spherical-outer-ring insert ball bearing suited to drop-in mounting in a pillow-block, flanged, take-up or tapped-base housing. Set-screw (YAR), eccentric locking collar (YET), adapter-sleeve (YSA), or grub-screw double-lock (YEL) shaft attachment per suffix. Sealed for life with grease; regreasable variants add a lubrication nipple to the outer ring.

Type

Insert bearing (YAR / YET / YSA / YEL)

Designation

SKF 1726308-2RS1

Bore d

40 mm

HS code

8482.10

Shaft diameter

40 mm

Bore diameter

40 mm

Outside diameter

90 mm

Width, total

23 mm

Width, inner ring

23 mm

Width, outer ring

23 mm

Basic dynamic load rating

41 kN

Basic static load rating

24 kN

Limiting speed

5000 r/min

Retaining feature, inner ring

Interference fit

Bore type

Cylindrical

Rolling elements

Balls

Outer ring type

Spherical

Inner ring extension

None (standard ring)

Cage

Non-metallic

Rubber seating ring

Without

Material, bearing

Bearing steel

Coating

Without

Sealing

Seal on both sides

Sealing type

Contact, RS1

Lubricant

Grease

Relubrication feature

Without

Product net weight

0.588 kg

eClass code

23-05-08-02

UNSPSC code

31171536

Standard

SKF designation convention (see description for governing ISO / DIN)

Material

As declared by SKF designation suffix

Temperature Range

Per SKF product data

HS Code

8482.10

• NTN 172630821
• NSK 172630821
• FAG 172630821
• Koyo 172630821
• ASAHI 172630821
• Equivalent: 172630821 (NTN)
• Equivalent: 172630821 (NSK)
• Equivalent: 172630821 (FAG)
• Equivalent: 172630821 (Koyo)
• Equivalent: 172630821 (ASAHI)
