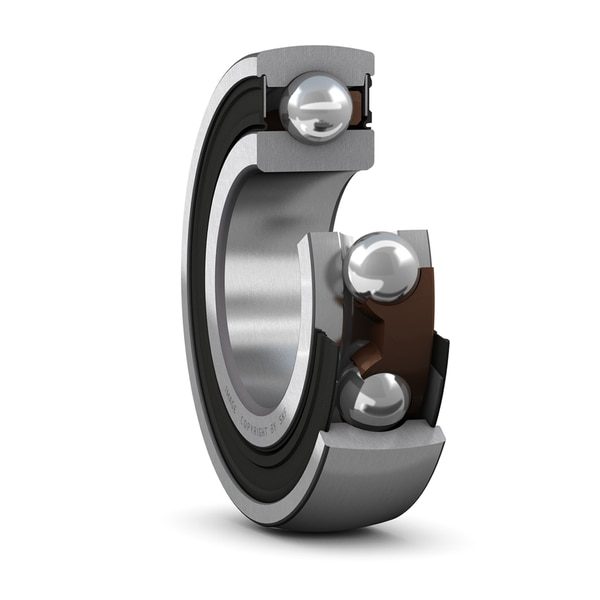

SKF 1726205-2RS1 Insert bearing (YAR / YET / YSA / YEL)

SKF 1726205-2RS1 insert bearing (yar / yet / ysa / yel). Spherical-outer-ring insert ball bearing suited to drop-in mounting in a pillow-block, flanged, take-up or tapped-base housing. Set-screw (YAR), eccentric locking collar (YET), adapter-sleeve (YSA), or grub-screw double-lock (YEL) shaft attachment per suffix. Sealed for life with grease; regreasable variants add a lubrication nipple to the outer ring.

Type

Insert bearing (YAR / YET / YSA / YEL)

Designation

SKF 1726205-2RS1

Bore d

25 mm

HS code

8482.10

Shaft diameter

25 mm

Bore diameter

25 mm

Outside diameter

52 mm

Width, total

15 mm

Width, inner ring

15 mm

Width, outer ring

15 mm

Basic dynamic load rating

14 kN

Basic static load rating

7.8 kN

Limiting speed

8500 r/min

Retaining feature, inner ring

Interference fit

Bore type

Cylindrical

Rolling elements

Balls

Outer ring type

Spherical

Inner ring extension

None (standard ring)

Cage

Non-metallic

Rubber seating ring

Without

Material, bearing

Bearing steel

Coating

Without

Sealing

Seal on both sides

Sealing type

Contact, RS1

Lubricant

Grease

Relubrication feature

Without

Product net weight

0.115 kg

eClass code

23-05-08-02

UNSPSC code

31171536

Standard

SKF designation convention (see description for governing ISO / DIN)

Material

As declared by SKF designation suffix

Temperature Range

Per SKF product data

HS Code

8482.10
