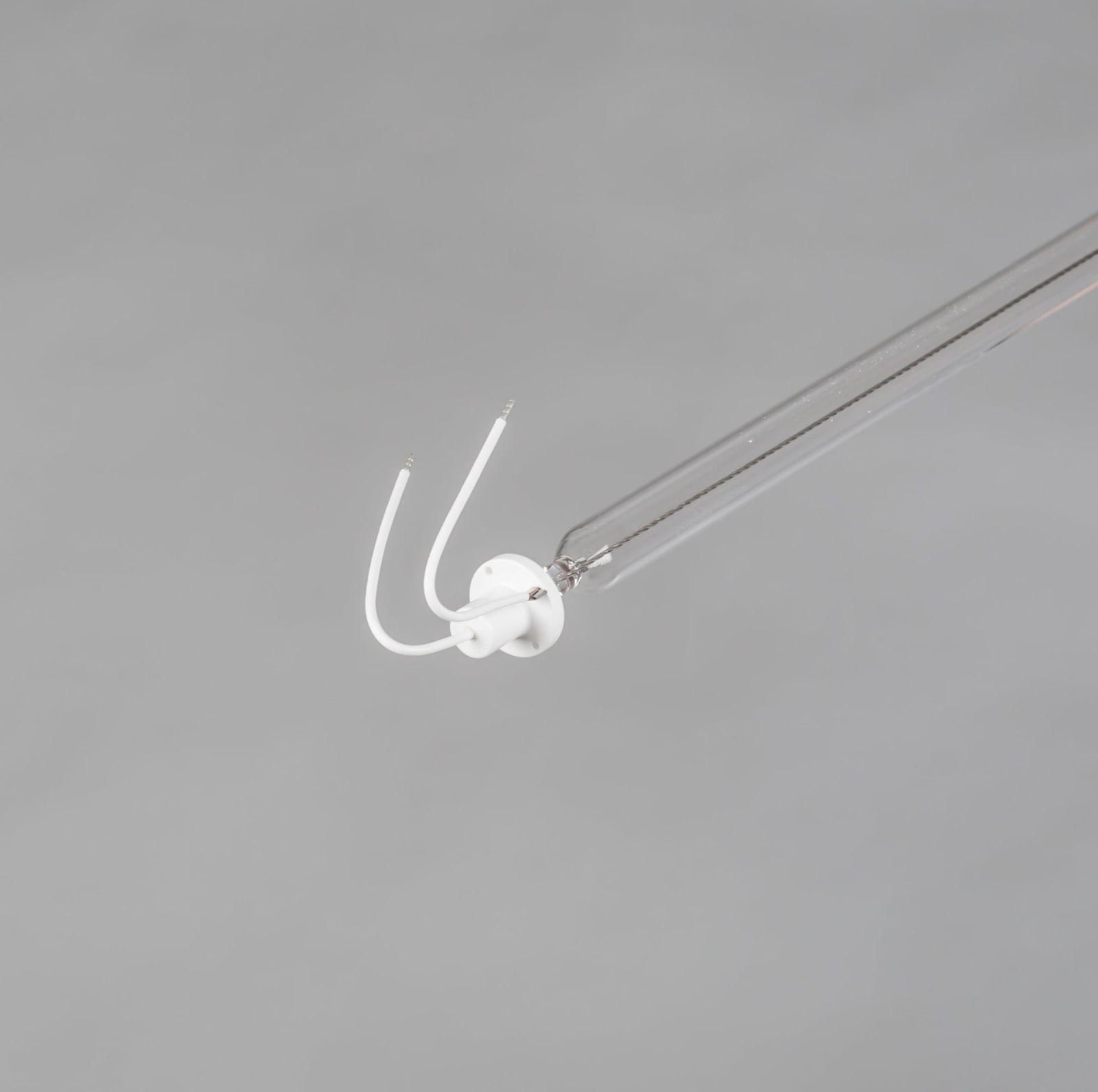

Replacement Medium-Pressure UV Lamp for SITA SMP 35 / 50 / 70 / 105, MP1413, 465 mm

Replacement Medium-Pressure UV Lamp for SITA SMP 35 / 50 / 70 / 105, MP1413, 465 mm, article 3818-0111. Data: overall length 465 mm, tube diameter 22 mm. OEM reference: MP1413. Fits: SITA SMP 35, SITA SMP 50, SITA SMP 70, SITA SMP 105. Supplied as a replacement part made to the dimensions and electrical data of the original; the OEM reference is given for identification. Medium-pressure lamps run at high power density with a polychromatic emission (about 180-600 nm), which is why SMP units are used for combined-chlorine reduction in pool water as well as disinfection. The replacement lamp must match the power supply rating of the unit. Handle with clean gloves; the lamp contains mercury and is disposed of as hazardous waste under local regulations. SITA SMP series data: medium-pressure lamps from 300 W to 12 kW, lamp life up to 10,000 h, in-line chamber in AISI 316L, 10 bar. Spare part for UV disinfection systems of S.I.T.A. srl, Genoa, Italy, which builds low-pressure, amalgam and medium-pressure UV units for drinking water, food and beverage, aquaculture, swimming pool, marine and wastewater duty (series AL, LCD / Rack LCD, AM, IT, 440, HDPE, SBT, SMP, SSD, TOC, GR and Pool).

Part number

MP1413

Article number

3818-0111

OEM reference

MP1413

System manufacturer

S.I.T.A. srl (SITA UV), Italy

Component type

UV disinfection lamp, medium pressure

Lamp type

Medium pressure

Overall length

465 mm

Tube diameter

22 mm

Fits

SITA SMP 35, SITA SMP 50, SITA SMP 70, SITA SMP 105

Supply

Replacement part, equivalent to the OEM reference

HS code

8539.49

HS Code

8539.49

• SITA MP1413
• Article 3818-0111
