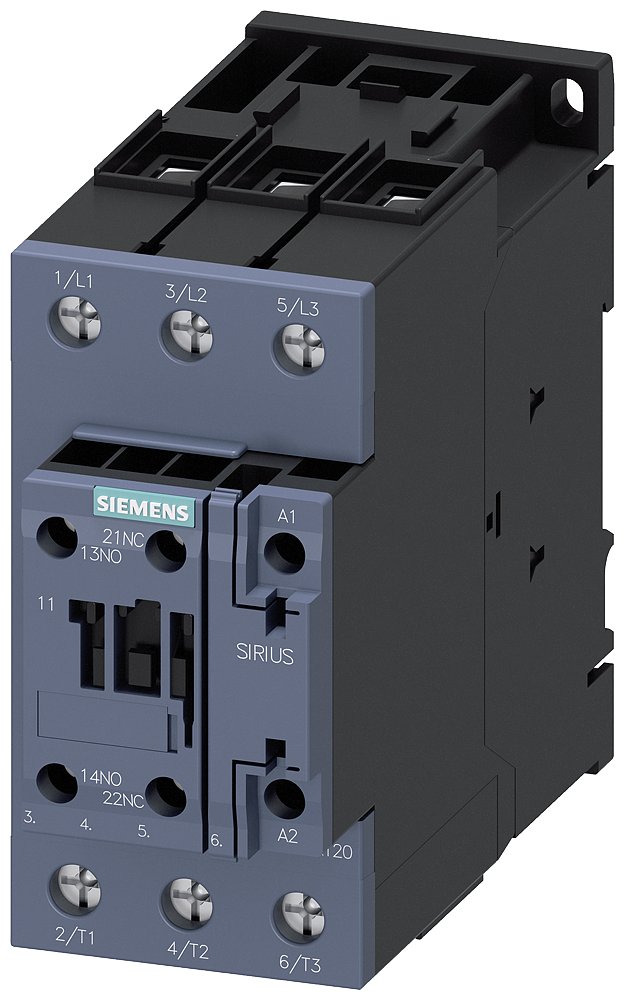

Siemens SIRIUS 3RT2038-1AL20 Power Contactor, 80 A / 37 kW at 400 V AC-3, 230 V AC Coil

Siemens 3RT2038-1AL20 is a SIRIUS three-pole power contactor rated 80 A / 37 kW at AC-3, 400 V with a 230 V AC 50/60 Hz control coil. The screw-terminal contactor measures 55 x 114 x 130 mm and is supplied with one NO and one NC auxiliary contact. It is used to switch three-phase motor loads in industrial control panels and machinery.

Manufacturer part number (MPN)

3RT2038-1AL20

EAN / GTIN

4011209940734

Sales unit

pcs

Voltage

400 V

Power

37 kW

Rated current

80 A

Width

55 mm

Height

114 mm

Depth

130 mm

Suitable for distribution board

Yes

Rated operation power at AC-3, 400 V

37 kW

Number of normally open contacts as main contact

3

Number of auxiliary contacts as normally open contact

1

Number of auxiliary contacts as normally closed contact

1

Rated operation current Ie at AC-3, 400 V

80 A

Rated operation current Ie at AC-1, 400 V

90 A

Rated control supply voltage AC 50 Hz

230 V

Rated control supply voltage AC 60 Hz

230 V

Type of electrical connection of main circuit

Screw connection

Operating voltage AC 50 Hz

690 V

Operating voltage AC 60 Hz

690 V

Voltage type for actuating

AC

Rated operation current Ie at AC-4, 400 V

55 A

Rated operation power at AC-4, 400 V

30 kW

Rated operation power NEMA

50 kW

Country of origin

Germany

HS Code

8536.49
