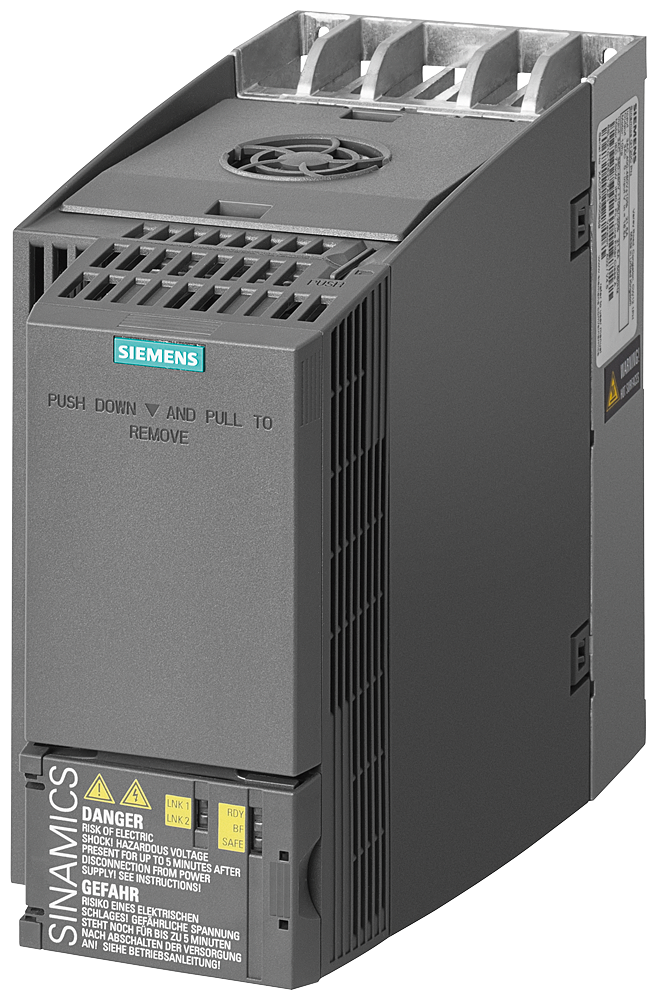

Siemens Sinamics G120C PN 3AC 400V 7,5kW with integrated filter kl
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 6SL3210-1KE21-7AF1 Sinamics G120C PN 3AC 400V 7,5kW with integrated filter kl. A.
Technical Specifications
- Manufacturer part number (MPN)
- 6SL3210-1KE21-7AF1
- EAN / GTIN
- 4042948663851
- Sales unit
- pcs
- Voltage
- 400 V
- Power
- 7.5 kW
- Width
- 100 mm
- Height
- 196 mm
- Depth
- 225 mm
- With control element
- No
- Number of digital inputs
- 6
- Number of digital outputs
- 2
- Number of analogue inputs
- 1
- Number of analogue outputs
- 1
- Number of HW-interfaces industrial Ethernet
- 2
- Number of HW-interfaces RS-232
- 1
- Number of HW-interfaces serial TTY
- 1
- Number of HW-interfaces USB
- 1
- Number of HW-interfaces other
- 6
- Degree of protection (IP)
- IP20
- Mains frequency
- 50/60 Hz
- Number of interfaces PROFINET
- 2
- Type of converter
- U converter
- Number of phases output
- 3
- Number of phases input
- 3
- Max. output frequency
- 550 Hz
- Max. output at linear load at rated output voltage
- 5.5 kW
- Max. output at quadratic load at rated output voltage
- 7.5 kW
- Relative symmetric net voltage tolerance
- -20 %
- Relative symmetric net frequency tolerance
- 5 %
- Max. output voltage
- 480 V
- Nominal output current I2N
- 17 A
- Supporting protocol for BACnet
- No
- Country of origin
- United Kingdom
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 4042948663851
- SAP 1000350805
- Code 81290254
Product Documentation
More from Siemens
Siemens
Siemens SENTRON 5SY4132-6 Miniature Circuit Breaker 1-Pole B32A 10KA
Siemens
Siemens 6XV1830-0GH10
Siemens
Siemens Wiring Kit for Star-Delta Assembly, Size S2, Screw Terminals
3RA2933-2BB1
Siemens
Siemens SIRIUS ACT Pushbutton 22mm Red Momentary 1NC Screw Terminal 3SU1100-0AB20-1CA0
Siemens
Siemens S3, Motor Protection Circuit Breaker FOR Motorprotection 3RV2041-4YA10
Siemens
Siemens Alpha 400/630 Din, mounting plate Steel for mounting on Vertical montasjerailr(Traverser) 8GK9531-4KK20
Siemens
Siemens SIRIUS Contactor, S2, 80A 1NO+1NC, 24V AC/DC, 3-Pole 3RT2038-1NB30
Siemens
Siemens SIMATIC ET 200SP, digital output module, DQ 4X 24..230V AC/2A Standard
6ES7132-6FD00-2BB1
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 6SL3210-1KE21-7AF1?
- 6SL3210-1KE21-7AF1 can be ordered from cballast.com as a Siemens catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Siemens product?
- The manufacturer part number is 6SL3210-1KE21-7AF1.
- What is the HS code for 6SL3210-1KE21-7AF1?
- The customs tariff (HS) code for 6SL3210-1KE21-7AF1 is 8504.40.
- Who manufactures 6SL3210-1KE21-7AF1?
- 6SL3210-1KE21-7AF1 is a Siemens product in the Drives & Controllers range.
- Is a datasheet available for 6SL3210-1KE21-7AF1?
- Yes — the 6SL3210-1KE21-7AF1 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 6SL3210-1KE21-7AF1?
- The minimum order quantity is 1.
- Is 6SL3210-1KE21-7AF1 available?
- Yes — 6SL3210-1KE21-7AF1 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
