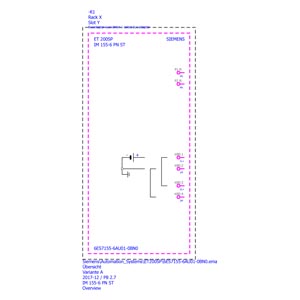

Siemens SIMATIC ET200SP interface module IM155-6PN ST

Siemens 6ES7155-6AU01-0BN0 — SIMATIC S7 automation module. Compact controller or expansion module for the S7-1200 or S7-1500 PLC platform. ET200SP IM155-6PN ST standard interface module for distributed I/O. PROFINET IO, up to 32 peripheral modules.

Standards

IEC 61131-2, IEC 61000-6-2, IEC 61000-6-4

Approvals

CE EMC 2014/30/EU, CE LVD 2014/35/EU, RoHS 2011/65/EU, CE

HS code

8537.10

Product type designation

IM 155-6 PN ST

HW functional status

From FS03

Firmware version

V4.2

FW update possible

Yes

Product function — I&M data

Yes; I&M0 to I&M3

Module swapping during operation (hot swapping)

Yes; Single hot swapping

Product function — Isochronous mode

No

STEP 7 TIA Portal configurable/integrated from version

V14

STEP 7 configurable/integrated from version

V5.5 SP4

PROFINET from GSD version/GSD revision

GSDML V2.35

Configuration control — via dataset

Yes

Supply voltage — Rated value (DC)

24 V

Supply voltage — permissible range, lower limit (DC)

19.2 V

Supply voltage — permissible range, upper limit (DC)

28.8 V

Reverse polarity protection

Yes

Supply voltage — Short-circuit protection

Yes

Mains/voltage failure stored energy time

10 ms

Current consumption (rated value)

450 mA

Current consumption, max.

550 mA

Inrush current, max.

3.7 A

Input current — I²t

0.09 A²·s

Power loss, typ.

1.9 W

Address space per module, max.

256 byte; For input and output data respectively

Address space per station, max.

512 byte

Rack — Quantity of operable ET 200SP modules, max.

32

Rack — Quantity of operable ET 200AL modules, max.

16

Submodules — Number of submodules per station, max.

256

Interfaces — Number of PROFINET interfaces

1; 2 ports (switch)

RJ 45 (Ethernet)

Yes; with BusAdapter

Interface types — Number of ports

2; with BusAdapter

Interface types — integrated switch

Yes

Interface types — BusAdapter (PROFINET)

Yes; BA 2x RJ45, BA 2x FC, BA 2x M12

PROFINET IO device

Yes

Open IE communication

Yes

Protocols — Media redundancy

Yes; PROFINET MRP client

Services — IRT

Yes; 250 µs to 4 ms in 125 µs frame

Services — PROFIenergy

Yes

Services — Prioritized startup

Yes

Services — Shared device

Yes

RJ 45 (Ethernet) — Transmission procedure

PROFINET with 100 Mbit/s full duplex (100BASE-TX)

RJ 45 (Ethernet) — Autonegotiation

Yes

RJ 45 (Ethernet) — Autocrossing

Yes

Supports protocol for PROFINET IO

Yes

HS Code

8537.10
