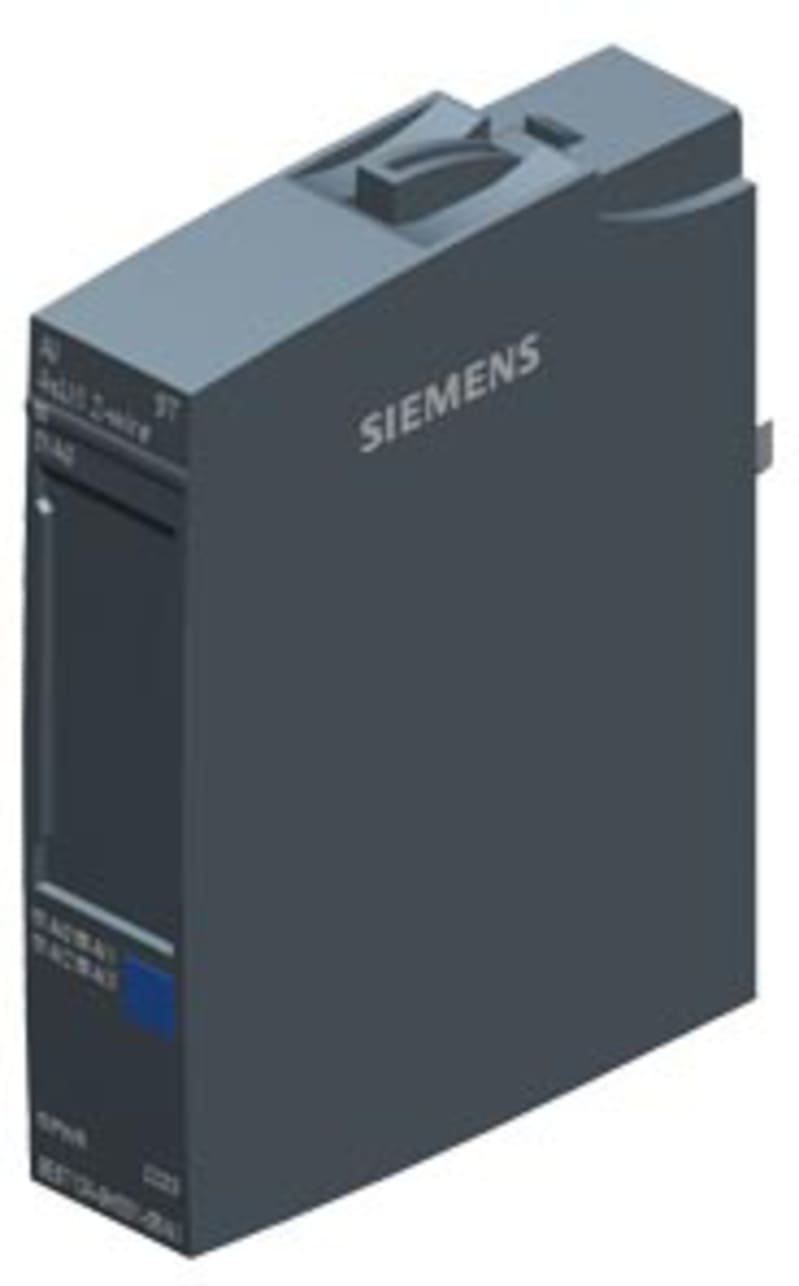

Siemens ET200SP AI 4XU/I 2-Wire ST
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 6ES7134-6HD01-0BA1 — SIMATIC S7 automation module. Compact controller or expansion module for the S7-1200 or S7-1500 PLC platform. ET200SP 4-channel analog input module. Configurable ±10V, 0-10V, ±5V, 1-5V, ±20mA, 4-20mA, 0-20mA per channel. 16-bit resolution.
Technical Specifications
- Standards
- IEC 61131-2, IEC 61000-6-2, IEC 61000-6-4
- Approvals
- CE EMC 2014/30/EU, CE LVD 2014/35/EU, RoHS 2011/65/EU, CE
- HS code
- 8537.10
- Product type designation
- AI 4x U/I 2-wire
- HW functional status
- From FS02
- FW update possible
- Yes
- usable BaseUnits
- BU type A0, A1
- Color code for module-specific color-coded label
- CC03
- Product function — I&M data
- Yes; I&M0 to I&M3
- Product function — Isochronous mode
- No
- Measuring range scalable
- No
- STEP 7 TIA Portal configurable/integrated from version
- V14 / -
- STEP 7 configurable/integrated from version
- V5.6 and higher
- PCS 7 configurable/integrated from version
- V8.1 SP1
- PROFIBUS from GSD version/GSD revision
- One GSD file each, Revision 3 and 5 and higher
- PROFINET from GSD version/GSD revision
- GSDML V2.3
- Reparameterization possible in RUN
- Yes
- Calibration possible in RUN
- No
- Supply voltage — Rated value (DC)
- 24 V
- Supply voltage — permissible range, lower limit (DC)
- 19.2 V
- Supply voltage — permissible range, upper limit (DC)
- 28.8 V
- Reverse polarity protection
- Yes
- Current consumption, max.
- 37 mA; without sensor supply
- 24 V encoder supply — Short-circuit protection
- Yes
- Output current, max.
- 20 mA; max. 50 mA per channel for a duration < 10 s
- Power loss, typ.
- 0.85 W; Without encoder supply voltage
- Address space per module, max.
- 8 byte; + 1 byte for QI information
- Hardware configuration — Automatic encoding
- Yes
- Hardware configuration — Type of mechanical coding element
- Type A
- Analog inputs — Number of analog inputs
- 4; Differential inputs
- permissible input voltage for voltage input (destruction limit), max.
- 30 V
- permissible input current for current input (destruction limit), max.
- 50 mA
- 0 to +10 V
- Yes; 15 bit
- Input resistance (0 to 10 V)
- 120 kΩ
- 1 V to 5 V
- Yes; 15 bit
- 10 V to +10 V
- Yes; 16 bit incl. sign
- 5 V to +5 V
- Yes; 16 bit incl. sign
- 0 to 20 mA
- Yes; 15 bit
- Input resistance (0 to 20 mA)
- 100 Ω; + approx. 0.7 V diode forward voltage
Standards & Compliance
- HS Code
- 8537.10
