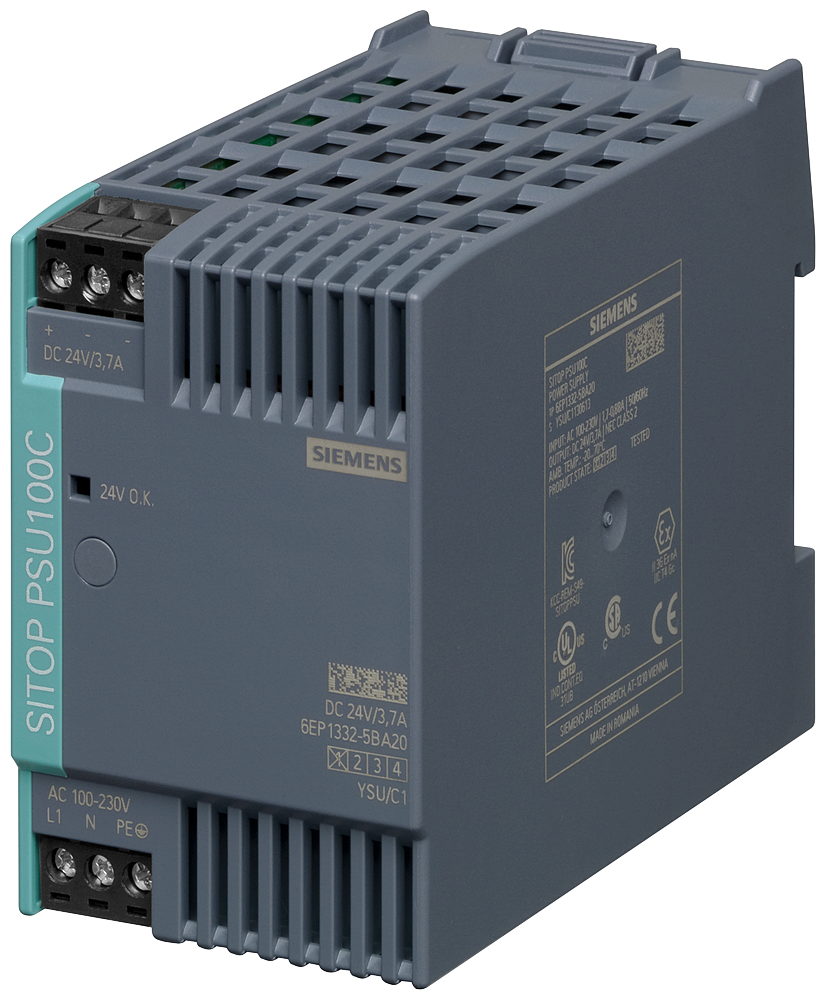

Siemens SITOP PSU100C/1ACDC/24VDC/4A/NECCLASS2

Siemens 6EP1332-5BA20 — SITOP DC power supply. DIN-rail primary-switched regulated 24 VDC power supply for automation panels. SITOP PSU100c 24 V/3.7 A stabilised power supply, input voltage: 120/230 V AC (110-300 V DC).

Manufacturer part number (MPN)

6EP1332-5BA20 EAN / GTIN: 4025515153528 Sales unit: pcs Type of the power supply network: 1-phase AC or DC Supply voltage at AC — minimum rated value: 100 V Supply voltage at AC — maximum rated value: 230 V Supply voltage at AC — initial value: 85 V Supply voltage at AC — full-scale value: 264 V Input voltage at DC: 110 ... 300 V Overvoltage overload capability: 2.3 × Vin rated, 1.3 ms Buffering time for rated value of the output current in the event of power failure minimum: 20 ms Operating condition of the mains buffering: at Vin = 230 V Line frequency: 50/60 Hz Input current — at rated input voltage 100 V: 1.88 A Input current — at rated input voltage 230 V: 0.95 A Current limitation of inrush current at 25 °C maximum: 30 A I2t value maximum: 3 A²·s Fuse protection type in the feeder: Recommended miniature circuit breaker: from 16 A characteristic B or from 10 A characteristic C Output voltage at DC rated value: 24 V Output voltage — at output 1 at DC

HS Code

8504.40

• EAN 4025515153528
• SAP 1000350942
• Code 81127682
