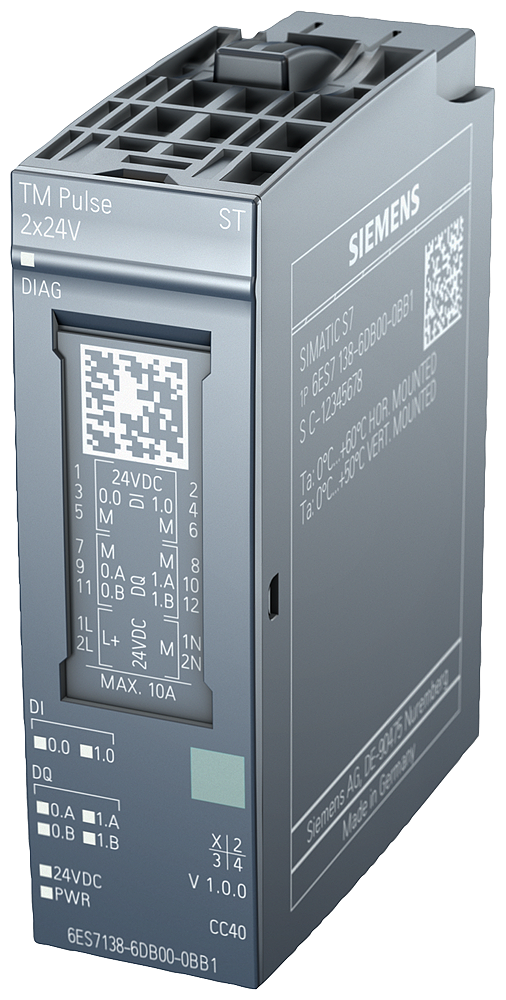

Siemens SIMATIC ET 200SP, TM Pulse 2X24V PWM and pulse output 2 channels 2 A for proportional valves and DC motors

Siemens 6ES7138-6DB00-0BB1 — SIMATIC S7 automation module. Compact controller or expansion module for the S7-1200 or S7-1500 PLC platform. SIMATIC ET 200SP, TM PULSE 2X24V PWM and pulsutgang.

Manufacturer part number (MPN)

6ES7138-6DB00-0BB1 EAN / GTIN: 4047623406334 Sales unit: pcs Product type designation: TM Pulse 2x24 V Firmware version: V1.0 Engineering with — STEP 7 TIA Portal configurable/integrated from version: V13 SP1 + HSP Engineering with — STEP 7 configurable/integrated from version: V5.5 SP4 and higher Rated value (DC): 24 V Load voltage L+ — Rated value (DC): 24 V Load voltage L+ — permissible range, lower limit (DC): 19.2 V Load voltage L+ — permissible range, upper limit (DC): 28.8 V Current consumption, max.: 70 mA; without load Number of outputs: 2; A common 24V encoder supply for both channels 24 V encoder supply — 24 V: Yes; L+ (-0.8 V) 24 V encoder supply — Output current, max.: 300 mA Power loss, typ.: 1.7 W Address space per module — Inputs: 16 byte; 8 per channel Address space per module — Outputs: 24 byte; 12 per channel Number of digital inputs: 2; 1 per channel Input voltage — Rated value (DC): 24 V Input voltage — for signal "0": -5 ... +5 V Input voltage — for signal "1": +11 to +30V Input voltage — permissible voltage at input, min.: -30 V; -5 V continuous, -30 V brief reverse polarity protection Input voltage — permissible voltage at input, max.: 30 V Input current — for signal "1", typ.: 2.5 mA For standard inputs — Parameterizable: Yes; none / 0.05 / 0.1 / 0.4 / 0.8 / 1.6 / 3.2 / 12.8 / 20 ms Number of digital outputs: 2; 1 per channel Short-circuit protection — Response threshold, typ.: 6.8 A with Standard output, 2 A with High Speed output Limitation of inductive shutdown voltage to: -0.8 V Accuracy of pulse duration: ±100 ppm ±0.5 µs with High Speed output, ±100 ppm ±9 µs with Standard output minimum pulse duration: 1.5 µs; With High Speed output, 10 µs with Standard output digital output functions, parameterizable — Number, max.: 2; 1 per channel digital output functions, parameterizable — Cycle duration, parameterizable: Yes; Max. 85 s digital output functions, parameterizable — ON period, min.: 0 % digital output functions, parameterizable — ON period, max.: 100 % digital output functions, parameterizable — Resolution of the duty cycle: 0.0036 %; For S7 analogue format, min. 20 ns Switching capacity of the outputs — with resistive load, max.: 2 A Switching capacity of the outputs — on lamp load, max.: 10 W; 1 W with High Speed output Load resistance range — lower limit: 12 Ω; 240 ohm with High Speed output Output voltage — for signal "0", max.: 1 V Output voltage — for signal "1", min.: 23.2 V; L+ (-0.8 V) Output current — for signal "1" rated value: 2 A; 0.1 A with High Speed output, observe derating Output delay with resistive load — "0" to "1", typ.: 0 µs; With High Speed output, 4.5 µs with Standard output Output delay with resistive load — "0" to "1", max.: 0.8 µs; With High Speed output, 9 µs with Standard output Output delay with resistive load — "1" to "0", typ.: 0 µs; With High Speed output, 4.5 µs with Standard output Output delay with resistive load — "1" to "0", max.: 0.8 µs; With High Speed output, 9 µs with Standard output Switching frequency — with resistive load, max.: 100 kHz; With High Speed output, 10 kHz with standard output Switching frequency — with inductive load, max.: 100 kHz; With High Speed output, 10 kHz with standard output Switching frequency — on lamp load, max.: 10 Hz Total current of the outputs — Current per channel, max.: 2 A Total current of the outputs — Current per group, max.: 4 A Total current of the outputs — Current per module, max.: 4 A Isolation tested with: 707 V DC (type test) Ambient temperature during operation — horizontal installation, min.: -30 °C Ambient temperature during operation — horizontal installation, max.: 60 °C; Observe derating Ambient temperature during operation — vertical installation, min.: -30 °C Ambient temperature during operation — vertical installation, max.: 50 °C; Observe derating Altitude during operation relating to sea level — Installation altitude above sea level, max.: 5 000 m; restrictions for installation altitudes > 2 000 m, see ET 200SP system manual Absolute humidity — dew point, min.: -60 °C; suitable for dry room applications Dimensions — Width: 20 mm Dimensions — Height: 73 mm Dimensions — Depth: 58 mm Weight, approx.: 50 g Supporting protocol for EtherCAT: No Supply voltage DC: 19.2–28.8 V Voltage type (supply voltage): DC Number of functions: 1 Suitable for counting: No Suitable for electronic positioning: No Suitable for SSI: No Suitable for single-axis controller: No Suitable for multi-axis positioning: No Suitable for single-axis positioning: Yes Degree of protection (IP): IP20 Fieldbus connection over separate bus coupler possible: Yes Frequency measurement: No Suitable for rail mounting: Yes Wall mounting/direct mounting: No Front built-in possible: No Rack-assembly possible: No Explosion safety category for gas: None Explosion safety category for dust: None Width: 20 mm Height: 73 mm Depth: 58 mm Country of origin: Germany
