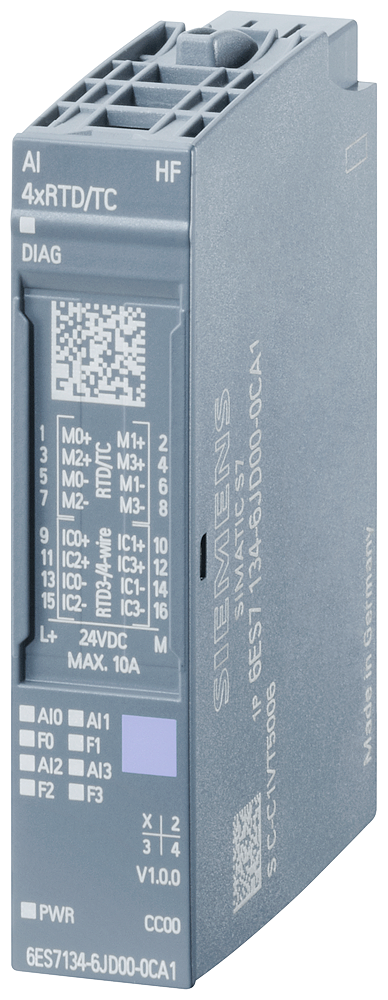

Siemens SIMATIC ET 200SP AI 4XRTD/TC 2-/3-/4-WIRE
Part number6ES7134-6JD00-2CA1EAN / GTIN4047623406785HS code8538.90
Control & Automation
PLCs & Industrial Networking
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 6ES7134-6JD00-2CA1 — SIMATIC S7 automation module. Compact controller or expansion module for the S7-1200 or S7-1500 PLC platform. SIMATIC ET 200SP, Analog input module, AI 4XRTD/TC High feature, packaging unit: 10 pcs.
Technical Specifications
- Manufacturer part number (MPN)
- 6ES7134-6JD00-2CA1
- EAN / GTIN
- 4047623406785
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Rated value (DC)
- 24 V
- Current consumption (rated value)
- 34 mA
- Current consumption, max.
- 35 mA
- Power loss, typ.
- 0.75 W
- Permissible input voltage for voltage input (destruction limit), max.
- 30 V
- Constant measurement current for resistance-type transmitter, typ.
- 0.7 mA; 1.7 mA for Cu10 sensors
- Input ranges (rated values), voltages — -1 V to +1 V
- Yes; 16 bit incl. sign
- Input ranges (rated values), voltages — Input resistance (-1 V to +1 V)
- 1 MΩ
- Input ranges (rated values), voltages — -250 mV to +250 mV
- Yes; 16 bit incl. sign
- Input ranges (rated values), voltages — Input resistance (-250 mV to +250 mV)
- 1 MΩ
- Input ranges (rated values), voltages — -50 mV to +50 mV
- Yes; 16 bit incl. sign
- Input ranges (rated values), voltages — Input resistance (-50 mV to +50 mV)
- 1 MΩ
- Input ranges (rated values), voltages — -80 mV to +80 mV
- Yes; 16 bit incl. sign
- Input ranges (rated values), voltages — Input resistance (-80 mV to +80 mV)
- 1 MΩ
- Input ranges (rated values), thermocouples — type B
- Yes; 16 bit incl. sign
- Input ranges (rated values), thermocouples — Input resistance (Type B)
- 1 MΩ
- Input ranges (rated values), thermocouples — type C
- Yes; 16 bit incl. sign
- Input ranges (rated values), thermocouples — Input resistance (Type C)
- 1 MΩ
- Input ranges (rated values), thermocouples — Type E
- Yes; 16 bit incl. sign
- Input ranges (rated values), thermocouples — Input resistance (Type E)
- 1 MΩ
- Input ranges (rated values), thermocouples — Type J
- Yes; 16 bit incl. sign
- Input ranges (rated values), thermocouples — Input resistance (type J)
- 1 MΩ
- Input ranges (rated values), thermocouples — Type K
- Yes; 16 bit incl. sign
- Input ranges (rated values), thermocouples — Input resistance (Type K)
- 1 MΩ
- Input ranges (rated values), thermocouples — Type L
- Yes; 16 bit incl. sign
- Input ranges (rated values), thermocouples — Input resistance (Type L)
- 1 MΩ
- Input ranges (rated values), thermocouples — Type N
- Yes; 16 bit incl. sign
- Input ranges (rated values), thermocouples — Input resistance (Type N)
- 1 MΩ
- Input ranges (rated values), thermocouples — Type R
- Yes; 16 bit incl. sign
- Input ranges (rated values), thermocouples — Input resistance (Type R)
- 1 MΩ
- Input ranges (rated values), thermocouples — Type S
- Yes; 16 bit incl. sign
- Input ranges (rated values), thermocouples — Input resistance (Type S)
- 1 MΩ
- Input ranges (rated values), thermocouples — Type T
- Yes; 16 bit incl. sign
- Input ranges (rated values), thermocouples — Input resistance (Type T)
- 1 MΩ
- Input ranges (rated values), thermocouples — Type U
- Yes; 16 bit incl. sign
- Input ranges (rated values), thermocouples — Input resistance (Type U)
- 1 MΩ
- Input ranges (rated values), thermocouples — Type TXK/TXK(L) to GOST
- Yes; 16 bit incl. sign
- Input ranges (rated values), thermocouples — Input resistance (Type TXK/TXK(L) to GOST)
- 1 MΩ
- Input ranges (rated values), resistance thermometer — Cu 10
- Yes; 16 bit incl. sign
- Input ranges (rated values), resistance thermometer — Input resistance (Cu 10)
- 1 MΩ
- Input ranges (rated values), resistance thermometer — Ni 100
- Yes; 16 bit incl. sign
- Input ranges (rated values), resistance thermometer — Input resistance (Ni 100)
- 1 MΩ
- Input ranges (rated values), resistance thermometer — Ni 1000
- Yes; 16 bit incl. sign
- Input ranges (rated values), resistance thermometer — Input resistance (Ni 1000)
- 1 MΩ
- Input ranges (rated values), resistance thermometer — LG-Ni 1000
- Yes; 16 bit incl. sign
- Input ranges (rated values), resistance thermometer — Input resistance (LG-Ni 1000)
- 1 MΩ
- Input ranges (rated values), resistance thermometer — Ni 120
- Yes; 16 bit incl. sign
- Input ranges (rated values), resistance thermometer — Input resistance (Ni 120)
- 1 MΩ
- Input ranges (rated values), resistance thermometer — Ni 200
- Yes; 16 bit incl. sign
- Input ranges (rated values), resistance thermometer — Input resistance (Ni 200)
- 1 MΩ
- Input ranges (rated values), resistance thermometer — Ni 500
- Yes; 16 bit incl. sign
- Input ranges (rated values), resistance thermometer — Input resistance (Ni 500)
- 1 MΩ
- Input ranges (rated values), resistance thermometer — Pt 100
- Yes; 16 bit incl. sign
- Input ranges (rated values), resistance thermometer — Input resistance (Pt 100)
- 1 MΩ
- Input ranges (rated values), resistance thermometer — Pt 1000
- Yes; 16 bit incl. sign
- Input ranges (rated values), resistance thermometer — Input resistance (Pt 1000)
- 1 MΩ
- Input ranges (rated values), resistance thermometer — Pt 200
- Yes; 16 bit incl. sign
- Input ranges (rated values), resistance thermometer — Input resistance (Pt 200)
- 1 MΩ
- Input ranges (rated values), resistance thermometer — Pt 500
- Yes; 16 bit incl. sign
- Input ranges (rated values), resistance thermometer — Input resistance (Pt 500)
- 1 MΩ
- Supporting protocol for EtherCAT
- No
- Voltage type (supply voltage)
- DC
- Resolution of the analogue inputs
- 16 Bit
- Number of analogue inputs
- 4
- Degree of protection (IP)
- IP20
- Explosion safety category for gas
- ATEX gas-ex-protection, Cat. 3G
- Explosion safety category for dust
- None
- Width
- 15 mm
- Height
- 73 mm
- Depth
- 58 mm
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4047623406785
- SAP 1000731315
- Code 8313640
Product Documentation
Document preview: Siemens 6ES7134-6JD00-2CA1 — OEM Datasheet
