Siemens Residual current circuit breaker, 2-Pole, type A, In: 25 A, 30 mA, Un AC: 24-125V
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 5SV3312-6KK13 Residual current circuit breaker, 2-pole, type A, In: 25 A, 30 mA, Un AC: 24-125V.
Technical Specifications
- Manufacturer part number (MPN)
- 5SV3312-6KK13
- EAN / GTIN
- 4001869435633
- HS code
- 8536.90
- Sales unit
- pcs
- Rated current
- 25 A
- Number of poles
- 2P
- Mounting method
- DIN rail
- Voltage type
- AC
- Built-in depth
- 70 mm
- Rated voltage
- 125 V
- Rated insulation voltage Ui
- 2000 V
- Rated fault current
- 30 A
- Leakage current type
- A
- Short-circuit breaking capacity (Icw)
- 10 kA
- Surge current capacity
- 1 kA
- Pollution degree
- 2
- Width in number of modular spacings
- 2
- RAL-number (similar)
- 7035
- Explosion-proof
- No
- Power loss
- 1 W
- Frequency
- 50 Hz
- Degree of protection (IP)
- IP20
- Device width
- 36 mm
- Device height
- 90 mm
- Device depth
- 70 mm
- Rated impulse withstand voltage Uimp
- 6000 kV
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4001869435633
- SAP 1000792104
- Code 81406838
Product Documentation
More from Siemens
Siemens
Siemens SIMATIC, electronic module for ET200ISP, 4 AO HART, 4 - 20 mA, for connecting HART field devices
6ES7135-7TD00-0AB0
Siemens
Siemens 3VA11, TM110M, 3P, 8A, with Bolt Connection, 70KA, II=128A, short-circuit protection/starter protection
3VA1108-6MG32-0AA0
Siemens
Siemens Accessory for 3KD st 3KD9103-6
Siemens
Siemens Earth-fault RCD 5SU1354-7LB10
Siemens
Siemens SIRIUS 3RT20 contactor, frame size S0 3RT2024-2AB00
Siemens

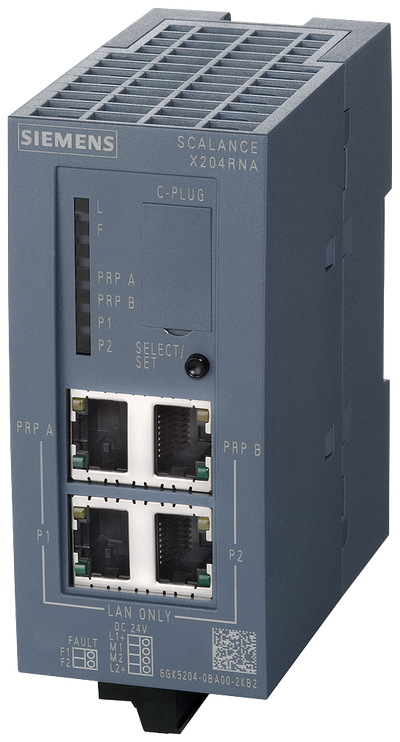

Siemens Scalance X204RNA; PRP network; 4 x 100MBIT/s RJ45 porter
6GK52040BA002KB2
Siemens

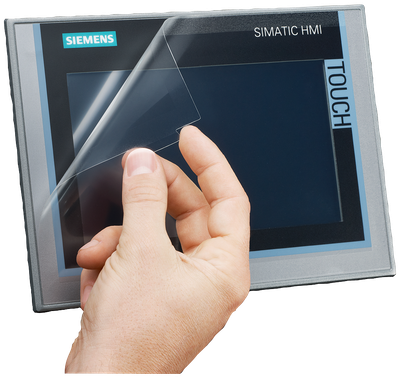

Siemens Protective Film 12" Widescreen Type 1
6AV2124-6MJ00-0AX0
Siemens

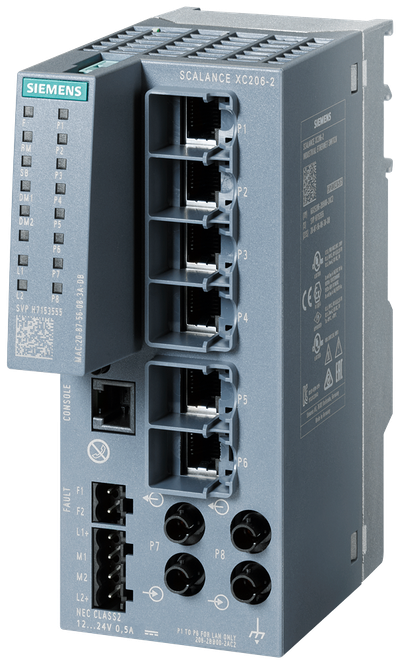

Siemens SCALANCE XC206-2 6 x 100 Mbps RJ45 porter + 2 x 100 Mbps ST-port multimode
