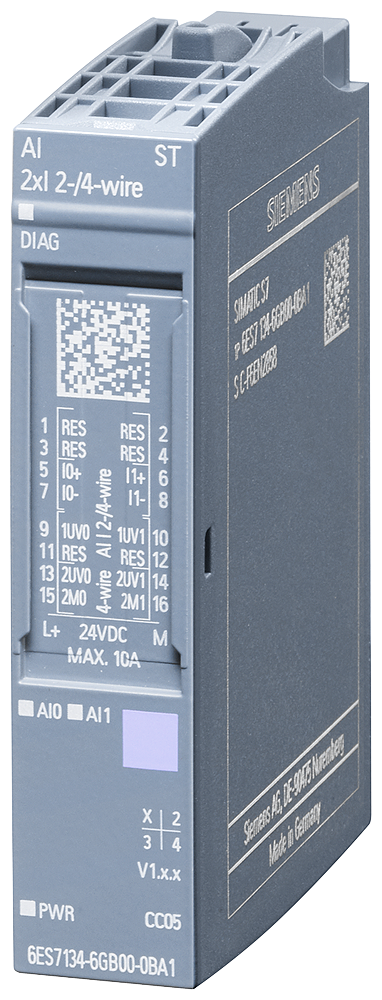

SIMATIC ET 200SP Analog Input Module, AI 2xI 2-/4-Wire ST

Siemens SIMATIC ET 200SP analog input module with two current channels supporting 2-wire and 4-wire transmitter connections. Mounts on BaseUnit types A0 and A1 with an integrated 24 V DC sensor supply (up to 50 mA per 2-wire pair, 200 mA per 4-wire pair). Configurable via STEP 7 TIA Portal V13 SP1 and later, or classic STEP 7 V5.5 SP3, over PROFIBUS or PROFINET.

Manufacturer part number (MPN)

6ES7134-6GB00-0BA1

EAN / GTIN

4047623406655

Sales unit

pcs

Product type designation

AI 2xI 2-/4-wire ST

HW functional status

from FS04

Usable BaseUnits

BU type A0, A1

Color code for module-specific color-coded label

CC05

Product function — I&M data

Yes; I&M0 to I&M3

Engineering with — STEP 7 TIA Portal configurable/integrated from version

V13 SP1

Engineering with — STEP 7 configurable/integrated from version

V5.5 SP3

Engineering with — PROFIBUS from GSD version/GSD revision

One GSD file each, Revision 3 and 5 and higher

Engineering with — PROFINET from GSD version/GSD revision

V2.3 / -

Rated value (DC)

24 V

Permissible range, lower limit (DC)

19.2 V

Permissible range, upper limit (DC)

28.8 V

Current consumption, max.

45 mA; without sensor supply

24 V encoder supply — Output current, max.

50 mA; Total current for both channels (two-wire)

Additional 24 V encoder supply — Output current, max.

200 mA; Total current for both channels (four-wire)

Power loss, typ.

1.1 W

Address space per module — Address space per module, max.

4 byte; + 1 byte for QI information

Selection of BaseUnit for connection variants — 1-wire connection

BU type A0, A1

Selection of BaseUnit for connection variants — 2-wire connection

BU type A0, A1

Selection of BaseUnit for connection variants — 4-wire connection

BU type A0, A1

Number of analog inputs

2

Number of analog inputs — For current measurement

2

Permissible input current for current input (destruction limit), max.

50 mA

Cycle time (all channels), min.

500 µs

Input ranges (rated values), currents — 0 to 20 mA

Yes; 15 bit

Input ranges (rated values), currents — Input resistance (0 to 20 mA)

130 Ω; 90 ohms with two wires

Input ranges (rated values), currents — -20 mA to +20 mA

Yes; 16 bit incl. sign

Input ranges (rated values), currents — Input resistance (-20 mA to +20 mA)

130 Ω

Input ranges (rated values), currents — 4 mA to 20 mA

Yes; 15 bit

Input ranges (rated values), currents — Input resistance (4 mA to 20 mA)

130 Ω; 90 ohms with two wires

Cable length — shielded, max.

1 000 m

Integration and conversion time/resolution per channel — Resolution with overrange (bit including sign), max.

16 bit

Integration and conversion time/resolution per channel — Conversion time (per channel)

50 ms @ 60 Hz, 60 ms @ 50 Hz, 180 ms @ 16.6 Hz, 500 µs without filter

Smoothing of measured values — Number of smoothing levels

4

Smoothing of measured values — Step

None: Yes; 1x conversion time

Connection of signal encoders — Burden of 2-wire transmitter, max.

650 Ω

Linearity error (relative to input range), (+/-)

0.01 %

Temperature error (relative to input range), (+/-)

0.005 %/K

Crosstalk between the inputs, min.

-50 dB

Repeat accuracy in steady state at 25 °C (relative to input range), (+/-)

0.05 %

Operational error limit in overall temperature range — Current, relative to input range, (+/-)

0.5 %

Basic error limit (operational limit at 25 °C) — Current, relative to input range, (+/-)

0.3 %

Interference voltage suppression for f = n x (f1 +/- 1 %), f1 = interference frequency — Common mode voltage, max.

10 V

Interference voltage suppression for f = n x (f1 +/- 1 %), f1 = interference frequency — Common mode interference, min.

90 dB

Diagnoses — Wire break

Yes; at 4 to 20 mA

Between the inputs (UCM)

10 Vpp

Isolation tested with

707 V DC (type test)

Ambient temperature during operation — horizontal installation, min.

-30 °C; < 0 °C as of FS04

Ambient temperature during operation — horizontal installation, max.

60 °C

Ambient temperature during operation — vertical installation, min.

-30 °C; < 0 °C as of FS04

Ambient temperature during operation — vertical installation, max.

50 °C

Altitude during operation relating to sea level — Installation altitude above sea level, max.

5 000 m; Restrictions for installation altitudes > 2 000 m, see manual

Absolute humidity — dew point, min.

-60 °C; suitable for dry room applications

Dimensions — Width

15 mm

Dimensions — Height

73 mm

Dimensions — Depth

58 mm

Weight, approx.

32 g

Supporting protocol for EtherCAT

No

Supply voltage DC

19.2–28.8 V

Voltage type (supply voltage)

DC

Input, current

Yes

Input, voltage

No

Input, resistor

No

Input, resistance thermometer

No

Input, thermocouple

No

Input signal, configurable

Yes

Resolution of the analogue inputs

16 Bit

Number of analogue inputs

2

Analogue inputs configurable

Yes

Supporting protocol for TCP/IP

No

Supporting protocol for PROFIBUS

No

Supporting protocol for CAN

No

Supporting protocol for INTERBUS

No

Supporting protocol for ASI

No

Supporting protocol for KNX

No

Supporting protocol for Modbus

No

Supporting protocol for Data-Highway

No

Supporting protocol for DeviceNet

No

Supporting protocol for SUCONET

No

Supporting protocol for LON

No

Supporting protocol for PROFINET IO

No

Supporting protocol for PROFINET CBA

No

Supporting protocol for SERCOS

No

Supporting protocol for Foundation Fieldbus

No

Supporting protocol for EtherNet/IP

No

Supporting protocol for AS-Interface Safety at Work

No

Supporting protocol for DeviceNet Safety

No

Supporting protocol for INTERBUS-Safety

No

Supporting protocol for PROFIsafe

No

Supporting protocol for SafetyBUS p

No

Supporting protocol for other bus systems

No

Radio standard Bluetooth

No

Radio standard WLAN 802.11

No

Radio standard GPRS

No

Radio standard GSM

No

Mobile communications standard 3G (UMTS)

No

IO link master

No

System accessory

Yes

Degree of protection (IP)

IP20

Fieldbus connection over separate bus coupler possible

Yes

Suitable for rail mounting

Yes

Wall mounting/direct mounting

No

Front built-in possible

Yes

Rack-assembly possible

Yes

Suitable for safety functions

No

Appendant operation agent (Ex ia)

No

Explosion safety category for gas

ATEX gas-ex-protection, Cat. 3G

Explosion safety category for dust

None

Width

15 mm

Height

73 mm

Depth

58 mm

Country of origin

Germany

HS Code

8538.90
