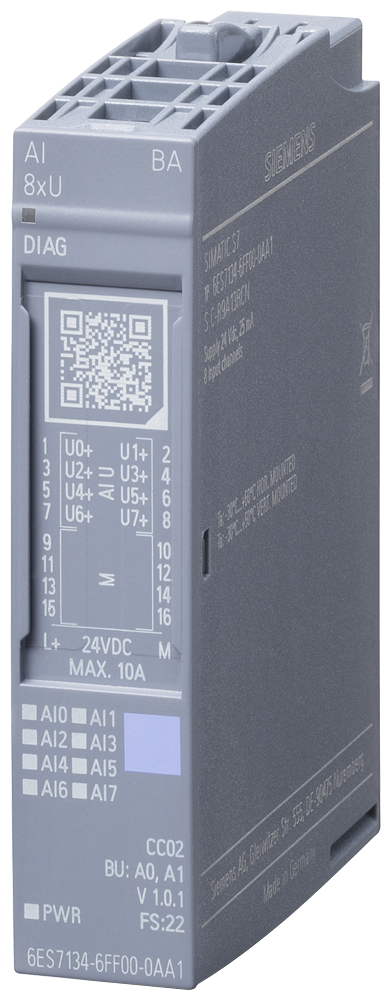

Siemens SIMATIC ET 200SP, Analog input module, AI 8XU Basic

Siemens 6ES7134-6FF00-0AA1 — SIMATIC S7 automation module. Compact controller or expansion module for the S7-1200 or S7-1500 PLC platform. SIMATIC ET 200SP, Analog input module, AI 8XU basic.

Manufacturer part number (MPN)

6ES7134-6FF00-0AA1

EAN / GTIN

4047623405528

Sales unit

pcs

Product type designation

AI 8xU BA

HW functional status

FS23 or higher

Firmware version

V2.0.0

Firmware version — FW update possible

Yes

Usable BaseUnits

BU type A0, A1

Color code for module-specific color-coded label

CC02

Product function — I&M data

Yes; I&M0 to I&M3

Engineering with — STEP 7 TIA Portal configurable/integrated from version

TIA Portal V21

Engineering with — STEP 7 configurable/integrated from version

V5.7 SP3

Engineering with — PROFIBUS from GSD version/GSD revision

One GSD file each, Revision 3 and 5 and higher

Engineering with — PROFINET from GSD version/GSD revision

GSDML V2.45

Rated value (DC)

24 V

Permissible range, lower limit (DC)

19.2 V

Permissible range, upper limit (DC)

28.8 V

Reverse polarity protection

Yes

Current consumption (rated value)

25 mA

Current consumption, max.

25 mA

Power loss, typ.

0.7 W

Address space per module — Address space per module, max.

16 byte

Selection of BaseUnit for connection variants — 1-wire connection

BU type A0, A1

Selection of BaseUnit for connection variants — 2-wire connection

BU type A0, A1

Number of analog inputs

8; Single-ended

Number of analog inputs — For voltage measurement

8

Permissible input voltage for voltage input (destruction limit), max.

30 V

Cycle time (all channels), min.

1 ms; per channel

Input ranges (rated values), voltages — 0 to +10 V

Yes; 15 bit

Input ranges (rated values), voltages — Input resistance (0 to 10 V)

100 kΩ

Input ranges (rated values), voltages — -10 V to +10 V

Yes; 16 bit incl. sign

Input ranges (rated values), voltages — Input resistance (-10 V to +10 V)

100 kΩ

Cable length — shielded, max.

200 m

Integration and conversion time/resolution per channel — Resolution with overrange (bit including sign), max.

16 bit

Integration and conversion time/resolution per channel — Conversion time (per channel)

180 / 60 / 50 / 0.625 (67.5 / 22.5 / 18.75) ms

Smoothing of measured values — Number of smoothing levels

4

Smoothing of measured values — Step

low: Yes; 4x smoothing

Connection of signal encoders — for voltage measurement

Yes

Connection of signal encoders — for current measurement as 4-wire transducer

No

Linearity error (relative to input range), (+/-)

0.01 %

Temperature error (relative to input range), (+/-)

0.005 %/K

Crosstalk between the inputs, min.

-50 dB

Repeat accuracy in steady state at 25 °C (relative to input range), (+/-)

0.05 %

Operational error limit in overall temperature range — Voltage, relative to input range, (+/-)

0.5 %

Basic error limit (operational limit at 25 °C) — Voltage, relative to input range, (+/-)

0.3 %

Diagnostics indication LED — Monitoring of the supply voltage (PWR-LED)

Yes; green PWR LED

Diagnostics indication LED — Channel status display

Yes; green LED

Isolation tested with

707 V DC (type test)

Signed firmware update

Yes; firmware V2.0.0 or higher

Safely removing data

Yes; firmware V2.0.0 or higher

Data integrity

Yes; firmware V2.0.0 or higher

Ambient temperature during operation — horizontal installation, min.

-30 °C; < 0 °C as of FS04

Ambient temperature during operation — horizontal installation, max.

60 °C

Ambient temperature during operation — vertical installation, min.

-30 °C; < 0 °C as of FS04

Ambient temperature during operation — vertical installation, max.

50 °C

Altitude during operation relating to sea level — Installation altitude above sea level, max.

5 000 m; restrictions for installation altitudes > 2 000 m, see ET 200SP system manual

Absolute humidity — dew point, min.

-60 °C; suitable for dry room applications

Dimensions — Width

15 mm

Dimensions — Height

73 mm

Dimensions — Depth

58 mm

Weight, approx.

31 g

Supporting protocol for EtherCAT

No

Voltage type (supply voltage)

DC

Resolution of the analogue inputs

16 Bit

Output, current

No

Output, voltage

No

Output signal configurable

No

Number of analogue inputs

8

Analogue outputs configurable

No

Degree of protection (IP)

IP20

Explosion safety category for gas

ATEX gas-ex-protection, Cat. 3G

Explosion safety category for dust

None

Width

15 mm

Height

73 mm

Depth

58 mm

Country of origin

Germany

HS Code

8538.90
