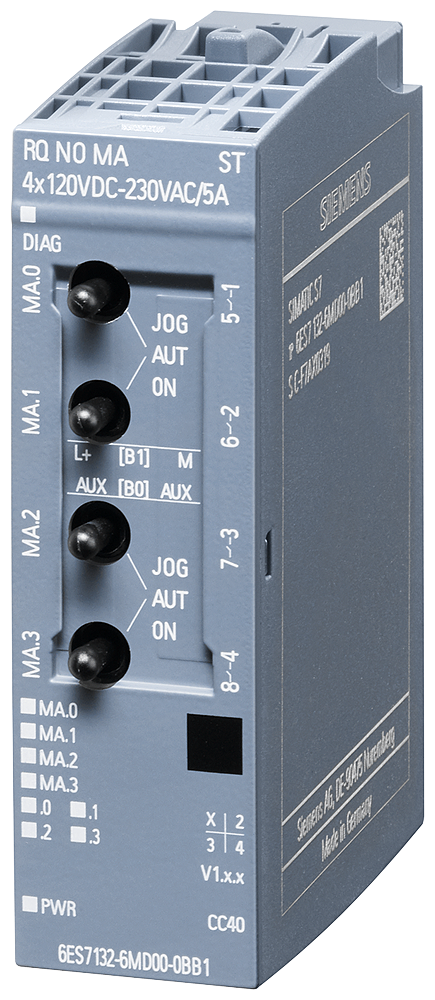

Siemens SIMATIC ET 200SP RQ NO-mA 4X120VDC..230VAC/5A ST

Siemens 6ES7132-6MD00-0BB1 — SIMATIC S7 automation module. Compact controller or expansion module for the S7-1200 or S7-1500 PLC platform. SIMATIC ET 200SP, Relay Module normally open, RQ NO-MA4X120VDC.230VAC/5A ST, with manual actuation.

Manufacturer part number (MPN)

6ES7132-6MD00-0BB1

EAN / GTIN

4047623406624

Sales unit

pcs

Product type designation

RQ 4x120 V DC ... 230 V AC/5 A NO MA ST

HW functional status

From FS03

Firmware version — FW update possible

Yes

Usable BaseUnits

BU type B0, B1

Color code for module-specific color-coded label

CC40

Product function — I&M data

Yes; I&M0 to I&M3

Engineering with — STEP 7 TIA Portal configurable/integrated from version

V13 SP1

Engineering with — STEP 7 configurable/integrated from version

V5.5 SP3 / -

Engineering with — PROFIBUS from GSD version/GSD revision

One GSD file each, Revision 3 and 5 and higher

Engineering with — PROFINET from GSD version/GSD revision

GSDML V2.3

Rated value (DC)

24 V

Permissible range, lower limit (DC)

19.2 V

Permissible range, upper limit (DC)

28.8 V

Current consumption, max.

100 mA; without load

Power loss, typ.

1.5 W

Address space per module — Inputs

1 byte; + 1 byte for QI information

Address space per module — Outputs

1 byte

Selection of BaseUnit for connection variants — 2-wire connection

BU type B1

Selection of BaseUnit for connection variants — 3-wire connection

BU type B0

Type of digital output

Relays

Number of digital outputs

4

Switching frequency — with resistive load, max.

2 Hz

Switching frequency — with inductive load (acc. to IEC 60947-5-1, DC13), max.

0.5 Hz; provide one freewheeling diode for switching frequencies higher than 0.1 Hz

Switching frequency — with inductive load (acc. to IEC 60947-5-1, AC15), max.

0.5 Hz

Switching frequency — on lamp load, max.

2 Hz

Total current of the outputs — Current per channel, max.

5 A

Total current of the outputs — Current per module, max.

20 A

Horizontal installation — up to 50 °C, max.

20 A

Horizontal installation — up to 60 °C, max.

16 A

Vertical installation — up to 40 °C, max.

20 A

Vertical installation — up to 50 °C, max.

16 A

Relay outputs — Number of relay outputs

4

Relay outputs — Rated supply voltage of relay coil L+ (DC)

24 V

Relay outputs — Current consumption of relays (coil current of all relays), max.

40 mA

Relay outputs — external protection for relay outputs

Yes, with miniature fuse max. 6 A tripping current and quick-response tripping characteristic

Relay outputs — Number of operating cycles, max.

7 000 000; see additional description in the manual

Switching capacity of contacts — with inductive load, max.

2 A; see additional description in the manual

Switching capacity of contacts — with resistive load, max.

5 A; see additional description in the manual

Switching capacity of contacts — Thermal continuous current, max.

5 A

Switching capacity of contacts — Switching current, min.

100 mA; 5 V DC

Switching capacity of contacts — Rated switching voltage (DC)

24 V DC to 120 V DC

Switching capacity of contacts — Rated switching voltage (AC)

24V AC to 230V AC

Cable length — shielded, max.

1 000 m

Cable length — unshielded, max.

200 m

Diagnostics indication LED — Monitoring of the supply voltage (PWR-LED)

Yes; green PWR LED

Diagnostics indication LED — Channel status display

Yes; green LED

Between channels and backplane bus/supply voltage

240 V AC

Isolation tested with

2 500 V DC (type test)

Tested with — between channels and backplane bus/supply voltage

2 500 V DC

Tested with — between backplane bus and supply voltage

707 V DC (type test)

Ambient temperature during operation — horizontal installation, min.

-30 °C

Ambient temperature during operation — horizontal installation, max.

60 °C

Ambient temperature during operation — vertical installation, min.

-30 °C

Ambient temperature during operation — vertical installation, max.

50 °C

Altitude during operation relating to sea level — Installation altitude above sea level, max.

2 000 m; On request: Installation altitudes greater than 2 000 m

Absolute humidity — dew point, min.

-60 °C; suitable for dry room applications

Dimensions — Width

20 mm

Dimensions — Height

73 mm

Dimensions — Depth

58 mm

Weight, approx.

45 g

Supporting protocol for EtherCAT

Yes

Voltage type (supply voltage)

DC

Digital inputs configurable

No

Type of voltage (input voltage)

DC

Permitted voltage at output

20.4–264 V

Type of output voltage

AC/DC

Degree of protection (IP)

IP20

Explosion safety category for gas

ATEX gas-ex-protection, Cat. 3G

Explosion safety category for dust

None

Width

20 mm

Height

73 mm

Depth

58 mm

Country of origin

Netherlands

HS Code

8538.90

• EAN 4047623406624
• SAP 1000731311
• Code 8313632
