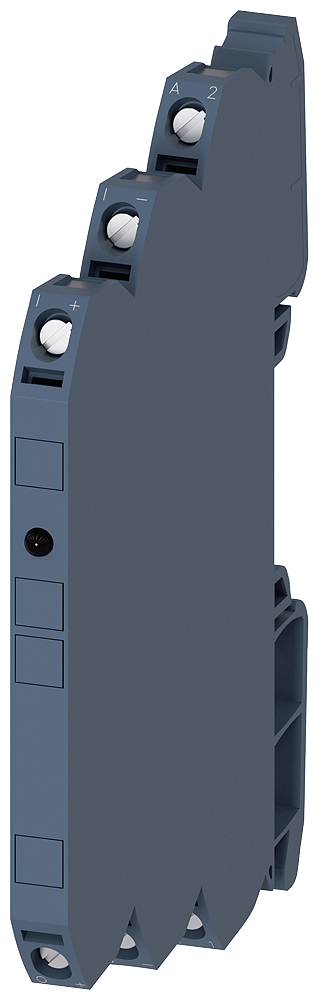

Siemens 3RS7005-1FE00 Signal Converter 24 V AC/DC, 3-Way Isolation
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3RS7005-1FE00 signal converter, 24 V AC/DC, with 3-way isolation. Input ranges cover 0-10 V and 0/4-20 mA; output ranges cover 0-10 V and 0/4-20 mA. Built-in device with screw connection for snap mounting on DIN support rail, rated IP20. Country of origin: Germany.
Technical Specifications
- Manufacturer part number (MPN)
- 3RS7005-1FE00
- EAN / GTIN
- 4047621001081
- Sales unit
- pcs
- Voltage
- 24 V
- Number of input ranges 0 V ... 10 V
- 1
- Number of input ranges 0 mA ... 20 mA
- 1
- Number of input ranges 4 mA ... 20 mA
- 1
- Number of output ranges 0 V ... 10 V
- 1
- Number of output ranges 0 mA ... 20 mA
- 1
- Number of output ranges 4 mA ... 20 mA
- 1
- Number of channels
- 1
- SIL according to IEC 61508
- None
- Height
- 93 mm
- Width
- 6.2 mm
- Depth
- 72.5 mm
- Power consumption
- 0.29 W
- Load
- 500 Ohm
- Load influence
- 0 %
- Temperature drift
- 0.015 %/K
- Construction type of device
- Built-in device
- Type of electric connection
- Screw connection
- Mounting method
- Snap mounting support rail
- Degree of protection (IP)
- IP20
- Device construction
- Built-in device
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4047621001081
- SAP 1200016189
- Code 81385063
Product Documentation
