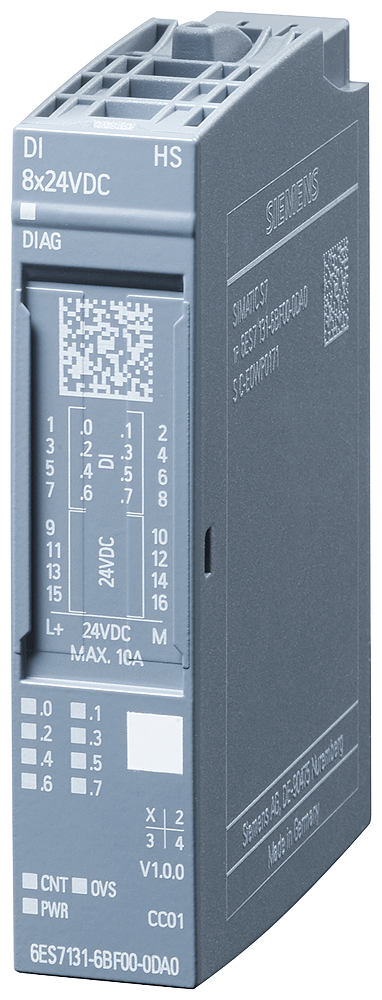

Siemens SIMATIC S7 automation module 6ES7131-6BF00-0DA0
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 6ES7131-6BF00-0DA0 — SIMATIC S7 automation module. Compact controller or expansion module for the S7-1200 or S7-1500 PLC platform. SIMATIC ET 200SP, Digital input module, DI 8X24VDC High speed.
Technical Specifications
- Manufacturer part number (MPN)
- 6ES7131-6BF00-0DA0
- EAN / GTIN
- 4047623405542
- Sales unit
- pcs
- Product type designation
- DI 8x24 V DC HS
- HW functional status
- from FS04
- Firmware version
- V1.0.2
- FW update possible
- Yes
- usable BaseUnits
- BU type A0
- Color code for module-specific color-coded label
- CC01
- Product function — I&M data
- Yes; I&M0 to I&M3
- Product function — Isochronous mode
- Yes; 125 µs
- suitable for operation on PROFINET R1 IMs
- Yes
- STEP 7 TIA Portal configurable/integrated from version
- V13 SP1
- PCS 7 configurable/integrated from version
- V10.0
- PROFINET from GSD version/GSD revision
- GSDML V2.3
- Operating mode — DI
- Yes
- Operating mode — Counter
- Yes
- Operating mode — Oversampling
- Yes
- Supply voltage — Rated value (DC)
- 24 V
- Supply voltage — permissible range, lower limit (DC)
- 19.2 V
- Supply voltage — permissible range, upper limit (DC)
- 28.8 V
- Reverse polarity protection
- Yes
- Current consumption, max.
- 70 mA; without sensor supply
- Encoder supply — Output current, max.
- 700 mA
- Power loss, typ.
- 1.5 W
- Number of digital inputs
- 8
- Sourcing/sinking input
- P-reading
- Counting frequency, max.
- 10 kHz
- Counting width
- 32 bit
- Input voltage — Rated value (DC)
- 24 V
- Input voltage — for signal 1
- +11 to +30V
- Input current — for signal 1, typ.
- 6 mA
- Cable length — shielded, max.
- 50 m
- Isochronous mode — Bus cycle time (TDP), min.
- 125 µs
- Diagnostics function
- Yes
- Diagnostic alarm
- Yes
- Hardware interrupt
- Yes
- Isolation tested with
- 707 V DC (type test)
- Ambient temperature during operation — horizontal installation, max.
- 60 °C
- Ambient temperature during operation — vertical installation, max.
- 50 °C
- Dimensions — Width
- 15 mm
- Dimensions — Height
- 73 mm
- Dimensions — Depth
- 58 mm
- Weights — Weight, approx.
- 28 g
- Supporting protocol for EtherCAT
- Yes
- Voltage type (supply voltage)
- DC
- Input current at signal 1
- 6 mA
- Type of voltage (input voltage)
- DC
- Type of digital output
- None
- Degree of protection (IP)
- IP20
- Time delay at signal change
- 0.05–20 ms
- Explosion safety category for gas
- ATEX gas-ex-protection, Cat. 3G
- Explosion safety category for dust
- None
- Width
- 15 mm
- Height
- 73 mm
- Depth
- 58 mm
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4047623405542
- SAP 1000721553
- Code 8278334
