Siemens Comfort panel KTP400

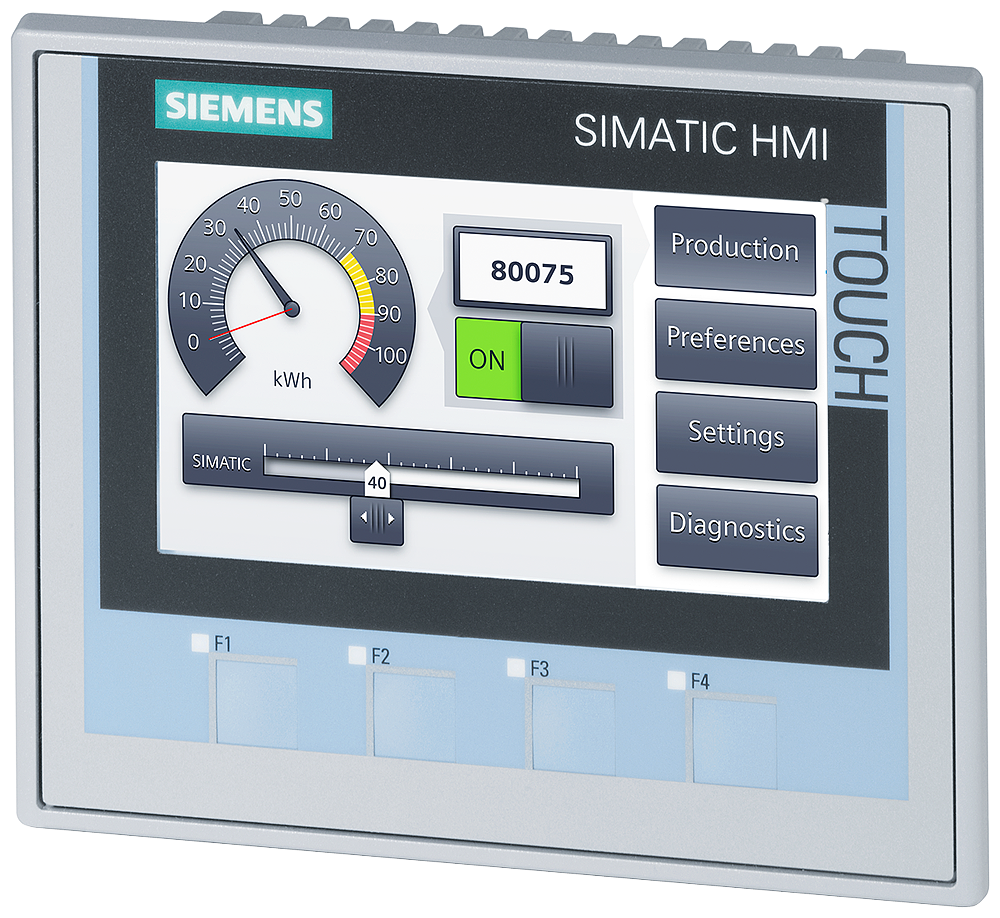

Siemens 6AV2124-2DC01-0AX0 Comfort panel KTP400.

Manufacturer part number (MPN)

6AV2124-2DC01-0AX0

EAN / GTIN

4025515078975

Sales unit

pcs

Product type designation

KTP400 Comfort

Screen diagonal

4.3 in

Display width

95 mm

Display height

53.8 mm

Number of colors

16 777 216

Resolution (pixels) — Horizontal image resolution

480 pixel

Resolution (pixels) — Vertical image resolution

272 pixel

Backlighting — MTBF backlighting (at 25 °C)

80 000 h

Backlighting — Backlight dimmable

Yes; 0-100 %

Keyboard — Number of function keys

4

Keyboard — Number of function keys with LEDs

4

Touch operation — Direct keys (touch buttons as S7 input I/O)

32

Maximum permissible angle of inclination without external ventilation

35°

Rated value (DC)

24 V

Permissible range, lower limit (DC)

19.2 V

Permissible range, upper limit (DC)

28.8 V

Current consumption (rated value)

0.13 A

Starting current inrush I²t

0.5 A²·s

Active power input, typ.

3.1 W

Memory available for user data

4 Mbyte

Clock

Hardware clock (real-time), retentive, back-up duration typically 6 weeks

Number of industrial Ethernet interfaces

1

Number of RS 485 interfaces

1; RS 422 / 485 combined

Number of RS 422 interfaces

1

Number of USB interfaces

1; USB 2.0

Number of SD card slots

2

IP (at the front)

IP65

IP (rear)

IP20

NEMA (front)

Enclosure Type 4 and Type 4x at the front

Use in hazardous areas

ATEX Zone 2, ATEX Zone 22, IECEx Zone 2, IECEx Zone 22, cULus Class I Zone 2 Division 2, FM Class I Division 2

Ambient temperature during operation — For vertical installation, min.

0 °C

Ambient temperature during operation — For vertical installation, max.

50 °C

Ambient temperature during operation — At maximum tilt angle, max.

40 °C

Ambient temperature during storage/transportation — min.

-20 °C

Ambient temperature during storage/transportation — max.

60 °C

Relative humidity — Operation, max.

90 %; no condensation

Configuration software

WinCC Comfort / Advanced / Professional (TIA Portal) from V11

Number of online/runtime languages

32

Number of variables per device

1 024

Number of configurable images

500

Number of recipes

100

Size of internal recipe memory

512 kbyte

Number of bit messages

2 000

Number of analog messages

50

Message buffer number of entries

256

Number of archives per device

10

Number of entries per archive

10 000

Number of users

50

SIMATIC HMI SD memory card

Yes; Up to 2 GB

Width of the housing front

140 mm

Height of housing front

116 mm

Mounting cutout, width

124 mm

Mounting cutout, height

100 mm

Mounting depth

48 mm

Weight (without packaging)

0.6 kg

Voltage type (supply voltage)

DC

Number of HW-interfaces industrial Ethernet

1

Number of interfaces PROFINET

1

Number of HW-interfaces RS-422

1

Number of HW-interfaces RS-485

1

Number of HW-interfaces USB

1

Type of display

TFT

Number of colours of the display

16777216

Number of pixels, horizontal

480

Number of pixels, vertical

272

Usable project memory/user memory

4000 kByte

Number of function buttons, programmable

4

Number of buttons with LED

4

Touch technology

Resistive touch

With touch screen

Yes

Number of password levels

50

Number of online languages

32

Degree of protection (IP), front side

IP65

Width of the front

140 mm

Height of the front

116 mm

Built-in depth

49 mm

Country of origin

Germany

HS Code

8537.10
