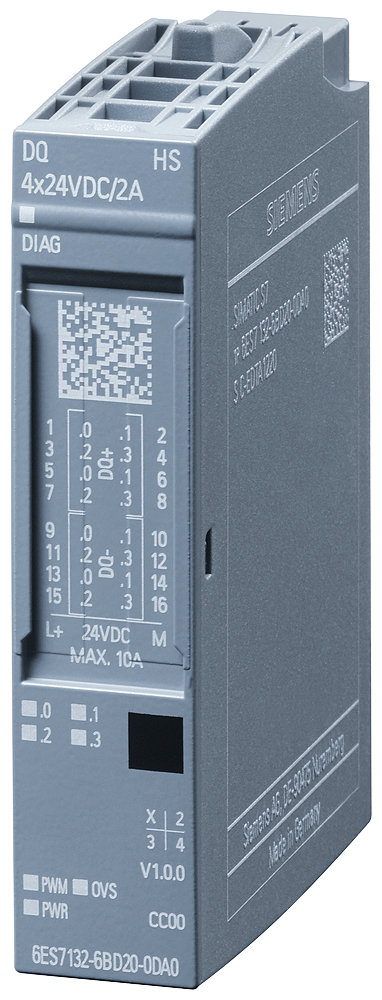

Siemens SIMATIC ET 200SP, digital output module, DQ 4X 24 V DC/2A High Speed

Siemens 6ES7132-6BD20-0DA0 — SIMATIC S7 automation module. Compact controller or expansion module for the S7-1200 or S7-1500 PLC platform. SIMATIC ET 200SP, Digital output module, DQ 4X24VDC/2A High speed.

Manufacturer part number (MPN)

6ES7132-6BD20-0DA0

EAN / GTIN

4047623405641

Sales unit

pcs

Product type designation

DQ 4x24 V DC/2 A HS

HW functional status

From FS05

Engineering with — STEP 7 TIA Portal configurable/integrated from version

STEP 7 V15.1 or higher

Engineering with — STEP 7 configurable/integrated from version

via GSD as of V5.6 HF4

Rated value (DC)

24 V

Permissible range, lower limit (DC)

19.2 V

Permissible range, upper limit (DC)

28.8 V

Current consumption, max.

50 mA; without load

Power loss, typ.

2.5 W; at 24 V, 25 °C, DQ mode, 2 A per channel

Address space per module — Inputs

1 byte; Max. 14 bytes in the cam control operating mode

Address space per module — Outputs

1 byte; Max. 16 bytes in the oversampling operating mode

Selection of BaseUnit for connection variants — 2-wire connection

BU type A0

Selection of BaseUnit for connection variants — 3-wire connection

BU type A0 with AUX terminals or potential distributor module

Selection of BaseUnit for connection variants — 4-wire connection

BU type A0 + Potential distributor module

Number of digital outputs

4

Short-circuit protection — Response threshold, typ.

6 A

Limitation of inductive shutdown voltage to

M (-1 V)

Digital output functions, parameterizable — Number of cam tracks, max.

4

Digital output functions, parameterizable — Number of cams per module, max.

16

Digital output functions, parameterizable — Number of cams per track, max.

16

Digital output functions, parameterizable — Range of values for comparison values, max.

-2,147,483,648 to 2,147,483,647 (user-specific within this range)

Digital output functions, parameterizable — Number, max.

4

Digital output functions, parameterizable — Cycle duration, parameterizable

Yes; 0 ms, 0.2 ms, 0.4 ms, 0.93 ms, 1.33 ms, 4.27 ms, 10.67 ms, 21.33 ms, 34.13 ms, 59.73 ms

Digital output functions, parameterizable — Resolution of the duty cycle

0.1 %

Digital output functions, parameterizable — Values per cycle, max.

32

Digital output functions, parameterizable — Resolution, min.

100 µs

Switching capacity of the outputs — with resistive load, max.

2 A

Switching capacity of the outputs — on lamp load, max.

10 W

Output current — for signal "1" rated value

2 A

Output current — for signal "0" residual current, max.

0.1 mA

Output delay with resistive load — "0" to "1", max.

1 µs

Output delay with resistive load — "1" to "0", max.

1 µs

Switching frequency — with resistive load, max.

5 kHz

Switching frequency — with inductive load, max.

5 kHz

Switching frequency — on lamp load, max.

5 kHz

Total current of the outputs — Current per channel, max.

2 A

Total current of the outputs — Current per module, max.

8 A

Horizontal installation — up to 30 °C, max.

8 A; DQ mode

Horizontal installation — up to 40 °C, max.

6.9 A; DQ mode

Horizontal installation — up to 50 °C, max.

4.7 A; DQ mode

Horizontal installation — up to 60 °C, max.

2.5 A; DQ mode

Vertical installation — up to 30 °C, max.

7.2 A; DQ mode

Vertical installation — up to 40 °C, max.

5.6 A; DQ mode

Vertical installation — up to 50 °C, max.

4 A; DQ mode

Cable length — shielded, max.

50 m

Cable length — unshielded, max.

50 m

Execution and activation time (TCO), min.

40 µs

Bus cycle time (TDP), min.

125 µs

Jitter, max.

1 µs

Isolation tested with

707 V DC (type test)

Ambient temperature during operation — horizontal installation, min.

-30 °C

Ambient temperature during operation — horizontal installation, max.

60 °C

Ambient temperature during operation — vertical installation, min.

-30 °C

Ambient temperature during operation — vertical installation, max.

50 °C

Altitude during operation relating to sea level — Installation altitude above sea level, max.

5 000 m; Restrictions for installation altitudes > 2 000 m, see manual

Absolute humidity — dew point, min.

-60 °C; suitable for dry room applications

Dimensions — Width

15 mm

Dimensions — Height

73 mm

Dimensions — Depth

58 mm

Weight, approx.

31 g

Supporting protocol for EtherCAT

Yes

Voltage type (supply voltage)

DC

Type of voltage (input voltage)

DC

Output current

2 A

Type of output voltage

DC

Degree of protection (IP)

IP20

Explosion safety category for gas

ATEX gas-ex-protection, Cat. 3G

Explosion safety category for dust

None

Width

15 mm

Height

73 mm

Depth

58 mm

Country of origin

Germany

HS Code

8538.90
