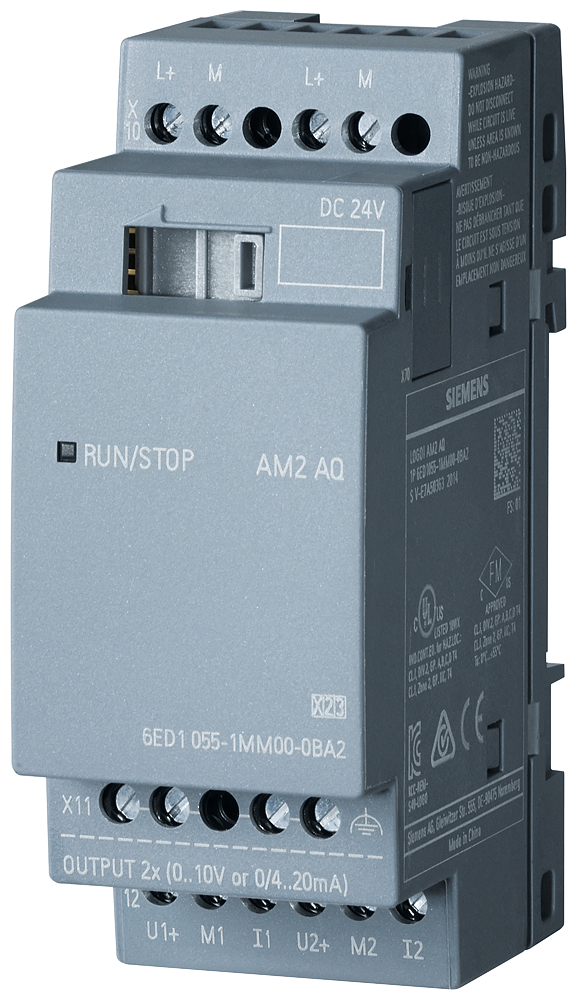

Siemens LOGO! logic module 6ED1055-1MM00-0BA2
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 6ED1055-1MM00-0BA2 — LOGO! logic module. Compact micro-controller for small automation and building-services tasks. AM2 AQ Expansion Module, PU: DC 24V, 0/4-20MA 2AQ, 0-10V.
Technical Specifications
- Manufacturer part number (MPN)
- 6ED1055-1MM00-0BA2
- EAN / GTIN
- 4034106029531
- Sales unit
- pcs
- Mounting
- on 35 mm DIN rail, 2 spacing units wide
- Supply voltage – Rated value (DC)
- 24 V
- Current consumption, typ.
- 82 mA
- Power loss, typ.
- 2 W; 0.4 ... 2.0 W
- Number of analog outputs
- 2
- Output range, voltage
- 0 to 10 V
- Output range, current
- 0 to 20 mA / 4 mA to 20 mA
- Emission of radio interference acc. to EN 55 011
- Limit class B, for use in residential areas
- IP degree of protection
- IP20
- CE mark
- Yes
- CSA approval
- Yes
- UL approval
- Yes
- FM approval
- Yes
- developed in accordance with IEC 61131
- Yes
- according to VDE 0631
- Yes
- Marine approval
- Yes
- Ambient temperature during operation – min.
- -20 °C; No condensation
- Ambient temperature during operation – max.
- 55 °C
- Dimensions – Width
- 35.5 mm
- Dimensions – Height
- 90 mm
- Dimensions – Depth
- 58 mm
- Number of analogue outputs
- 2
- Analogue inputs configurable
- No
- Input, current
- No
- Input, voltage
- No
- Input, resistor
- No
- Input, resistance thermometer
- No
- Input, thermocouple
- No
- Input signal, configurable
- No
- Resolution of the analogue outputs
- 10 Bit
- Type of electric connection
- Screw connection
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Width
- 35.5 mm
- Height
- 90 mm
- Depth
- 58 mm
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4034106029531
- SAP 1000635609
- Code 8578616
Product Documentation
