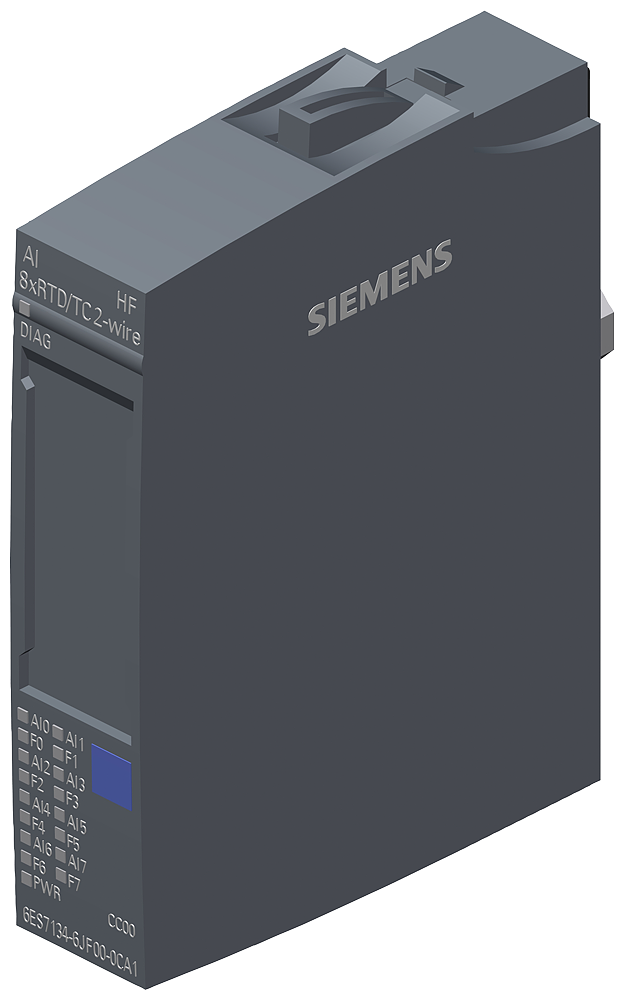

Siemens SIMATIC S7 automation module 6ES7134-6JF00-0CA1

Siemens 6ES7134-6JF00-0CA1 — SIMATIC S7 automation module. Compact controller or expansion module for the S7-1200 or S7-1500 PLC platform. ET200SP AI8x RTD/TC 2-wire HF.

Manufacturer part number (MPN)

6ES7134-6JF00-0CA1

EAN / GTIN

4047623403388

HS code

8544.42

Sales unit

pcs

Product type designation

AI 8xRTD/TC 2-wire HF

HW functional status

From FS05

Firmware version

V2.1

Usable BaseUnits

BU type A0, A1

Measuring range scalable

Yes

Engineering with STEP 7 TIA Portal from version

V16, V17 / V18

Rated value (DC)

24 V

Permissible range, lower limit (DC)

19.2 V

Permissible range, upper limit (DC)

28.8 V

Reverse polarity protection

Yes

Current consumption, max.

35 mA

Power loss, typ.

0.75 W

Number of analog inputs

8

Permissible input voltage for voltage input (destruction limit), max.

30 V

Constant measurement current for resistance-type transmitter, typ.

2 mA

Technical unit for temperature measurement adjustable

Yes; °C/°F/K

Input ranges, voltages

-1 V to +1 V, -250 mV, -80 mV, -50 mV (16 bit incl. sign, input resistance 1 MΩ)

Input ranges, thermocouples

Type B, C, E, J, K, L, N, R, S, T, U, TXK/TXK(L) (16 bit incl. sign)

Input ranges, resistance thermometers

Ni 100/120/200/500/1000, LG-Ni 1000, Pt 100/200/500/1000 (16 bit incl. sign)

Input ranges, resistors

0 to 150/300/600/3000/6000 ohms, PTC (15 bit)

Thermocouple temperature compensation

internal (BaseUnit A1), reference channel of module/group, fixed reference temperature

Cable length shielded, max.

200 m; 50 m with thermocouples

Measurement principle

integrating (Sigma-Delta)

Resolution with overrange (bit including sign), max.

16 bit

Interference voltage suppression for interference frequency

16.6 / 50 / 60 Hz

Conversion time (per channel)

180 / 60 / 50 (67.5 / 22.5 / 18.75) ms

Number of smoothing levels

4; None; 4/8/16 times

Linearity error (relative to input range), (+/-)

0.01 %; ±0.1 % for resistance thermometers

Repeat accuracy in steady state at 25 °C (relative to input range), (+/-)

0.05 %

Operational error limit, voltage, relative to input range, (+/-)

0.1 %

Basic error limit at 25 °C, voltage, relative to input range, (+/-)

0.05 %

Common mode interference, min.

90 dB

Diagnostic alarm

Yes

Limit value alarm

Yes; two upper and two lower limit values

Wire break diagnostics

Yes; channel by channel

Channel/module status display

green/red LEDs

Between the channels and backplane bus

Yes

Between the channels and the power supply of the electronics

Yes

Isolation tested with

707 V DC (type test)

Ambient temperature during operation, horizontal installation

-30 ... 60 °C

Ambient temperature during operation, vertical installation

-30 ... 50 °C

Installation altitude above sea level, max.

2 000 m

Dimensions — Width

15 mm

Dimensions — Height

73 mm

Dimensions — Depth

58 mm
