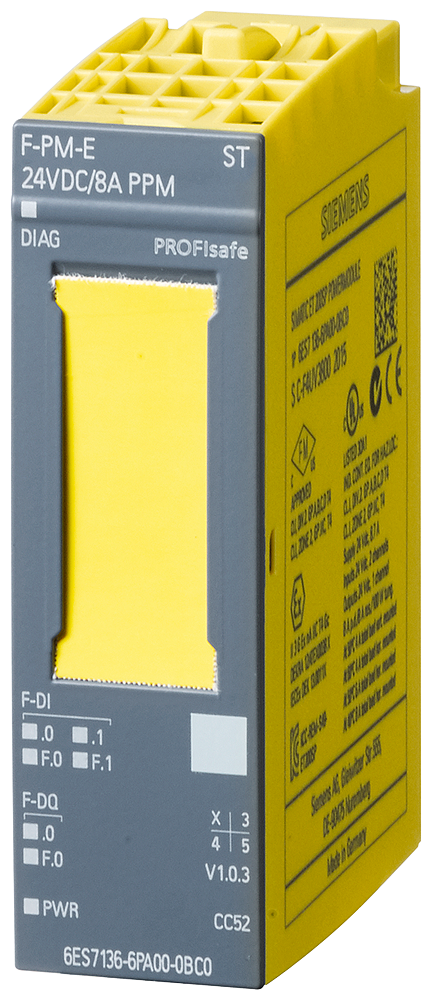

Siemens SIMATIC DP, POWER M. F-PM-E PPM PROFIsafe

Siemens 6ES7136-6PA00-0BC0 — SIMATIC S7 automation module. Compact controller or expansion module for the S7-1200 or S7-1500 PLC platform. Failsafe powermodul F-PM.

Manufacturer part number (MPN)

6ES7136-6PA00-0BC0

EAN / GTIN

4025515082767

Sales unit

pcs

Product type designation

F-PM-E 24 V DC/8 A PPM ST

Usable BaseUnits

BU type C0

Color code for module-specific color-coded label

CC52

Product function — I&M data

Yes; I&M0 to I&M3

Engineering with — STEP 7 TIA Portal configurable/integrated from version

V12

Engineering with — STEP 7 configurable/integrated from version

V5.5 SP3 / -

Engineering with — PROFINET from GSD version/GSD revision

V2.31

Rated value (DC)

24 V

Permissible range, lower limit (DC)

20.4 V

Permissible range, upper limit (DC)

28.8 V

Current consumption (rated value)

75 mA; without load

Current consumption, max.

21 mA; From the backplane bus

Number of outputs

2

Short-circuit protection

Yes; Electronic (response threshold 0.7 A to 2.1 A)

Output current — up to 60 °C, max.

0.3 A

24 V encoder supply — 24 V

Yes; min. L+ (-1.5 V)

24 V encoder supply — Output current, max.

600 mA; Total current of all encoders

Power consumption from the backplane bus

70 mW

Power loss, typ.

5 W

Address space per module — Inputs

7 byte

Address space per module — Outputs

5 byte

Number of digital inputs

2

Input voltage — Rated value (DC)

24 V

Input voltage — for signal "0"

-30 to +5 V

Input voltage — for signal "1"

+15 to +30 V

Input current — for signal "1", typ.

3.7 mA

For standard inputs — at "0" to "1", min.

0.4 ms

For standard inputs — at "0" to "1", max.

20 ms

For standard inputs — at "1" to "0", min.

0.4 ms

For standard inputs — at "1" to "0", max.

20 ms

Cable length — shielded, max.

1 000 m

Cable length — unshielded, max.

500 m

Number of digital outputs

1

Digital outputs, parameterizable — Response threshold, typ.

> 14.8 A

Open-circuit detection — Response threshold, typ.

8 mA

Overload protection — Response threshold, typ.

8.8 A

Limitation of inductive shutdown voltage to

Max. -1.5 V

Switching capacity of the outputs — with resistive load, max.

8 A

Switching capacity of the outputs — on lamp load, max.

100 W

Load resistance range — lower limit

3 Ω

Load resistance range — upper limit

2 000 Ω

Output voltage — for signal "1", min.

24 V; L+ (-0.5 V)

Output current — for signal "1" rated value

8 A

Output current — for signal "0" residual current, max.

1.5 mA; PP-switching: max. 1.5 mA; PM-switching: max. 1 mA

Switching frequency — with resistive load, max.

10 Hz; Symmetrical

Switching frequency — with inductive load, max.

0.1 Hz; according to IEC 60947-5-1, DC-13, symmetrical

Switching frequency — on lamp load, max.

4 Hz; Symmetrical

Total current of the outputs — Current per channel, max.

8 A; note derating data in the manual

Total current of the outputs — Current per module, max.

8 A; note derating data in the manual

Isolation tested with

707 V DC (type test)

Highest safety class achievable in safety mode — SIL acc. to IEC 61508

SIL 3

Ambient temperature during operation — horizontal installation, min.

0 °C

Ambient temperature during operation — horizontal installation, max.

60 °C

Ambient temperature during operation — vertical installation, min.

0 °C

Ambient temperature during operation — vertical installation, max.

50 °C

Altitude during operation relating to sea level — Installation altitude above sea level, max.

4 000 m; restrictions for installation altitudes > 2 000 m, see ET 200SP System Manual

Dimensions — Width

20 mm

Dimensions — Height

73 mm

Dimensions — Depth

58 mm

Weight, approx.

70 g

Width

20 mm

Height

73 mm

Depth

58 mm

Suitable for safety functions

Yes

Type of voltage (input voltage)

DC

Redundancy

No

Output voltage DC

20.4–28.8 V

Input voltage DC

20.4–28.8 V

Type of output voltage

DC

Country of origin

Germany

HS Code

8538.90
