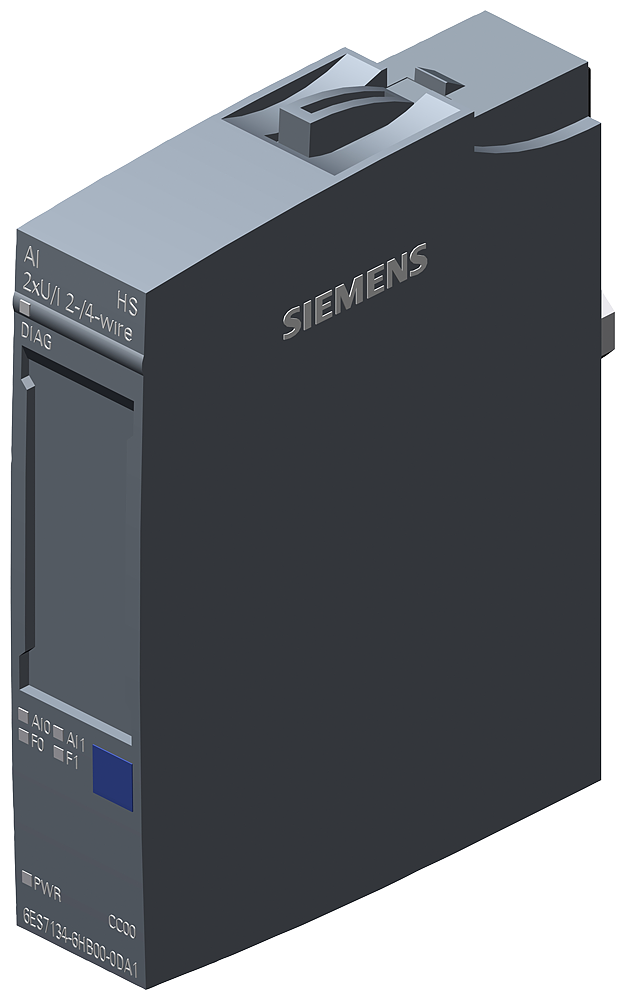

Siemens SIMATIC ET 200SP, Analog input module, AI 2X U/I 2-.4-WIRE High Speed

Siemens 6ES7134-6HB00-0DA1 — SIMATIC S7 automation module. Compact controller or expansion module for the S7-1200 or S7-1500 PLC platform. ET 200SP, Analog input module 2AI, High Speed.

Manufacturer part number (MPN)

6ES7134-6HB00-0DA1

EAN / GTIN

4025515082712

Sales unit

pcs

Product type designation

AI 2xU/I 2-/4-wire HS

Firmware version

V2.0.3

Product function — Isochronous mode

Yes; 125 µs

Engineering with — STEP 7 TIA Portal configurable/integrated from version

V13 SP1

Engineering with — STEP 7 configurable/integrated from version

V5.5 SP3 / -

Rated value (DC)

24 V

Permissible range, lower limit (DC)

19.2 V

Permissible range, upper limit (DC)

28.8 V

Current consumption (rated value)

39 mA; without sensor supply

24 V encoder supply — Output current, max.

20 mA; max. 50 mA per channel for a duration < 10 s

Power loss, typ.

0.95 W; without sensor supply

Address space per module — Address space per module, max.

4 byte; + 1 byte for QI information (32 bytes in the oversampling operating mode)

Selection of BaseUnit for connection variants — 2-wire connection

BU type A0, A1

Selection of BaseUnit for connection variants — 4-wire connection

BU type A0, A1

Number of analog inputs

2; Differential inputs

Number of analog inputs — For current measurement

2

Number of analog inputs — For voltage measurement

2

Permissible input voltage for voltage input (destruction limit), max.

30 V

Permissible input current for current input (destruction limit), max.

50 mA

Cycle time (all channels), min.

125 µs

Analog input with oversampling — Values per cycle, max.

16

Analog input with oversampling — Resolution, min.

50 µs

Input ranges (rated values), voltages — 0 to +10 V

Yes; 15 bit

Input ranges (rated values), voltages — Input resistance (0 to 10 V)

75 kΩ

Input ranges (rated values), voltages — 1 V to 5 V

Yes; 13 bit

Input ranges (rated values), voltages — Input resistance (1 V to 5 V)

75 kΩ

Input ranges (rated values), voltages — -10 V to +10 V

Yes; 16 bit incl. sign

Input ranges (rated values), voltages — Input resistance (-10 V to +10 V)

75 kΩ

Input ranges (rated values), voltages — -5 V to +5 V

Yes; 15 bit incl. sign

Input ranges (rated values), voltages — Input resistance (-5 V to +5 V)

75 kΩ

Input ranges (rated values), currents — 0 to 20 mA

Yes; 15 bit

Input ranges (rated values), currents — Input resistance (0 to 20 mA)

130 Ω

Input ranges (rated values), currents — -20 mA to +20 mA

Yes; 16 bit incl. sign

Input ranges (rated values), currents — Input resistance (-20 mA to +20 mA)

130 Ω

Input ranges (rated values), currents — 4 mA to 20 mA

Yes; 14 bit

Input ranges (rated values), currents — Input resistance (4 mA to 20 mA)

130 Ω

Cable length — shielded, max.

1 000 m; 200 m for voltage measurement

Integration and conversion time/resolution per channel — Resolution with overrange (bit including sign), max.

16 bit

Integration and conversion time/resolution per channel — Conversion time (per channel)

10 µs

Smoothing of measured values — Number of smoothing levels

7; none; 2-/4-/8-/16-/32-/64-fold

Linearity error (relative to input range), (+/-)

0.03 %

Temperature error (relative to input range), (+/-)

0.01 %/K

Repeat accuracy in steady state at 25 °C (relative to input range), (+/-)

0.1 %

Operational error limit in overall temperature range — Voltage, relative to input range, (+/-)

0.3 %

Operational error limit in overall temperature range — Current, relative to input range, (+/-)

0.3 %

Basic error limit (operational limit at 25 °C) — Voltage, relative to input range, (+/-)

0.2 %

Basic error limit (operational limit at 25 °C) — Current, relative to input range, (+/-)

0.2 %

Interference voltage suppression for f = n x (f1 +/- 1 %), f1 = interference frequency — Common mode voltage, max.

35 V

Filtering and processing time (TCI), min.

80 µs

Isolation tested with

707 V DC (type test)

Ambient temperature during operation — horizontal installation, min.

-30 °C; < 0 °C as of FS07

Ambient temperature during operation — horizontal installation, max.

60 °C

Ambient temperature during operation — vertical installation, min.

-30 °C; < 0 °C as of FS07

Ambient temperature during operation — vertical installation, max.

50 °C

Altitude during operation relating to sea level — Installation altitude above sea level, max.

5 000 m; restrictions for installation altitudes > 2 000 m, see ET 200SP system manual

Absolute humidity — dew point, min.

-60 °C; suitable for dry room applications

Dimensions — Width

15 mm

Dimensions — Height

73 mm

Dimensions — Depth

58 mm

Weight, approx.

32 g

Supporting protocol for EtherCAT

No

Voltage type (supply voltage)

DC

Resolution of the analogue inputs

16 Bit

Output, current

No

Output, voltage

No

Output signal configurable

No

Number of analogue inputs

2

Analogue outputs configurable

No

Degree of protection (IP)

IP20

Explosion safety category for gas

ATEX gas-ex-protection, Cat. 3G

Explosion safety category for dust

None

Width

15 mm

Height

73 mm

Depth

58 mm

Country of origin

Germany

HS Code

8538.90
