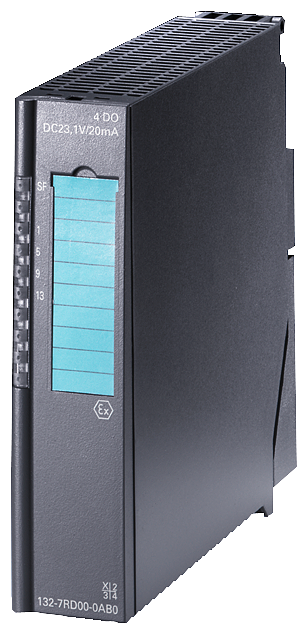

Siemens SIMATIC, electronic module for ET200ISP, 4 DO, 23.1 V DC/20 mA, "L"-shutdown, Ex ib (ia Ga) IIC T4 Gb

Siemens 6ES7132-7GD00-0AB0 — SIMATIC S7 automation module. Compact controller or expansion module for the S7-1200 or S7-1500 PLC platform. SIMATIC ET 200iSP 4DQ 23.1 V DC/20 mA SHUT DOWN "L".

Manufacturer part number (MPN)

6ES7132-7GD00-0AB0

EAN / GTIN

4019169150187

Sales unit

pcs

Product type designation

4DQ 23.1 V DC/20 mA

HW functional status

7

Firmware version

V3.0.0

Rack mounting

No

Front mounting

Yes

Rail mounting

Yes

Wall mounting/direct mounting

No

Type of supply voltage

DC

Current consumption, typ.

290 mA

From load voltage (power bus), max.

340 mA; with actuator supply

Power loss, typ.

2.5 W

Address space per module — Address space per module, max.

2 byte

Fieldbus connection via separate transceiver

Yes

Type of digital output

Transistor

Number of digital outputs

4; additionally 1 intrinsically-safe input for L shutdown

No-load voltage Uao (DC)

23.1 V

Internal resistor Ri

275 Ω

Trend key points E — Voltage Ue (DC)

17.6 V

Trend key points E — Current Ie

20 mA

Output voltage — Type of output voltage

DC

Output current — for signal "1" rated value

0.02 A

Output delay with resistive load — "0" to "1", max.

2 ms

Output delay with resistive load — "1" to "0", max.

1.5 ms

Parallel switching of two outputs — for uprating

No; for Ex reasons not possible; nor for predecessor

Switching frequency — with resistive load, max.

100 Hz

Switching frequency — with inductive load, max.

2 Hz

Cable length — shielded, max.

500 m

Cable length — unshielded, max.

500 m

Number of PROFINET interfaces

0

Number of RS 485 interfaces

0

Diagnoses — Wire break

Yes; R > 10 kohms, I < 100 µA

Diagnoses — Short-circuit

Yes; R< 80 Ohm (one output), R< 40 Ohm (outputs connected in parallel)

Module for Ex(i) protection

Yes; for more Co/Lo combinations, see certificate IECEx KEM 05.0011

Maximum values for connecting terminals for gas group IIC — Uo (no-load voltage), max.

25.6 V

Maximum values for connecting terminals for gas group IIC — Io (short-circuit current), max.

96 mA

Maximum values for connecting terminals for gas group IIC — Po (power output), max.

0.61 W

Maximum values for connecting terminals for gas group IIC — Co (permissible external capacity), max.

98 nF

Maximum values for connecting terminals for gas group IIC — Lo (permissible external inductivity), max.

3 mH

Maximum values for connecting terminals for gas group IIC — Ui (intrinsically safe input voltage), max.

28 V; switch input circuit

Maximum values for connecting terminals for gas group IIC — Pi (intrinsically safe input power), max.

1.2 W; switch input circuit

Maximum values for connecting terminals for gas group IIC — Ci (internal capacity), max.

3 nF; switch input circuit

IP degree of protection

IP30

CE mark

CE 0344

UKCA mark

DEKRA 21UKEX0085 Importer UK: Siemens plc Manchester M20 2UR

CULus

LISTED E334384

FM approval

CLASSIFIED 3025852

INMETRO certificate

UL-BR 12.0073

Use in hazardous areas — ATEX marking

II 2 G (1) G Ex ib [ia Ga] IIC T4 Gb II 2 G (1) D Ex ib [ia IIIC Da] IIC T4 Gb I M2 Ex ib [ia] I Mb

Use in hazardous areas — ATEX certificate

KEMA 04 ATEX 1249

Use in hazardous areas — IECEx

IECEx KEM 05.0011

Use in hazardous areas — CCC Ex

2020322316002945

Use in hazardous areas — EAC Ex

PB Ex ib [ia] I Mb 1Ex ib [ia Ga] IIC T4 Gb [Ex ia Da] IIIC

Use in hazardous areas — FM marking

Class I, Zone 1 AEx ib [ia] IIC T4 Ex ib IIC T4 NI, Class I, DIV.2, GP. A,B,C,D T4 AIS, Class I, DIV.1, GP. A,B,C,D T4 DIP Class II, III, GP. E,F,G

Use in hazardous areas — Explosion protection category for gas

ATEX gas explosion protection, Zone 1

Use in hazardous areas — Explosion protection category for dust

ATEX dust explosion protection, Zone 21 always install in corresponding enclosure

Design of electrical connection

Screw/spring-type terminal

Dimensions — Width

30 mm

Dimensions — Height

129 mm

Dimensions — Depth

136.5 mm

Weight, approx.

255 g

Voltage type (supply voltage)

DC

Type of voltage (input voltage)

DC

Output current

0.02 A

Type of output voltage

DC

Degree of protection (IP)

IP30

Type of electric connection

Screw-/spring clamp connection

SIL according to IEC 61508

None

Performance level according to EN ISO 13849-1

None

Explosion safety category for gas

ATEX gas-ex-protection, Cat. 2G

Width

30 mm

Height

129 mm

Depth

136.5 mm

Country of origin

Germany

HS Code

8538.90
