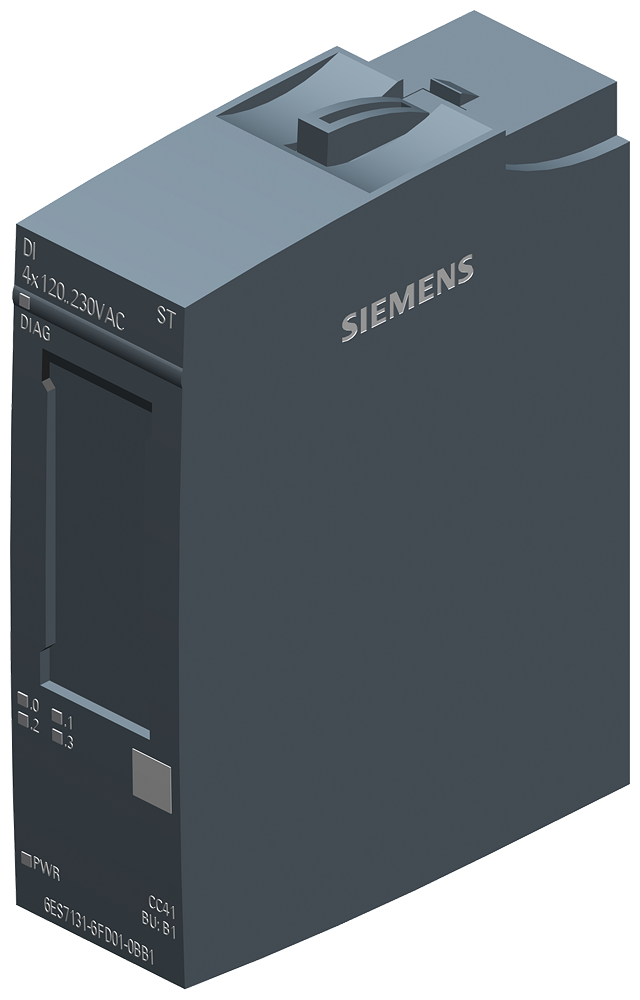

Siemens SIMATIC ET 200SP DI 4X 120..230V AC ST

Siemens 6ES7131-6FD01-0BB1 — SIMATIC S7 automation module. Compact controller or expansion module for the S7-1200 or S7-1500 PLC platform. SIMATIC ET 200SP, Digital input module, DI 4X120.230VAC Standard.

Manufacturer part number (MPN)

6ES7131-6FD01-0BB1

EAN / GTIN

4047623408765

Sales unit

pcs

Product type designation

DI 4x120...230VAC ST

HW functional status

from FS04

Firmware version

V0.0

Firmware version — FW update possible

No

Usable BaseUnits

BU type B1

Color code for module-specific color-coded label

CC41

Product function — I&M data

Yes; I&M0 to I&M3

Product function — Isochronous mode

No

Product function — suitable for operation on PROFINET R1 IMs

Yes

Engineering with — STEP 7 TIA Portal configurable/integrated from version

V14

Engineering with — STEP 7 configurable/integrated from version

V5.5 SP3

Engineering with — PROFIBUS from GSD version/GSD revision

One GSD file each, Revision 3 and 5 and higher

Engineering with — PROFINET from GSD version/GSD revision

GSDML V2.3

Operating mode — DI

Yes

Operating mode — Counter

No

Rated value (AC)

230 V

Permissible range, upper limit (AC)

264 V

Reverse polarity protection

No

Current consumption (rated value)

10 mA

Number of outputs

4

Short-circuit protection

No; when using BU type B1, a fuse with 10 A tripping current must be provided

Output current — up to 60 °C, max.

10 A

Power loss, typ.

1 W; Active power, load voltage 230 V, all inputs connected with 230 V, 50 Hz

Address space per module — Address space per module, max.

1 byte; + 1 byte for QI information

Automatic encoding — Type of mechanical coding element

type C

Selection of BaseUnit for connection variants — 1-wire connection

BU type B1

Selection of BaseUnit for connection variants — 2-wire connection

BU type B1

Selection of BaseUnit for connection variants — 3-wire connection

BU type B1

Selection of BaseUnit for connection variants — 4-wire connection

BU type B1 + potential distributor module

Number of digital inputs

4

Digital inputs, parameterizable

Yes

Sourcing/sinking input

P-reading

Input characteristic curve in accordance with IEC 61131, type 3

Yes

Input voltage — Rated value (AC)

230 V

Input voltage — for signal "0"

0V AC to 40V AC

Input voltage — for signal "1"

74 V AC to 264 V AC

Input current — for signal "1", typ.

10.8 mA

For standard inputs — parameterizable

No

For standard inputs — at "0" to "1", min.

1.5 ms

For standard inputs — at "0" to "1", max.

4 ms

For standard inputs — at "1" to "0", min.

10 ms

For standard inputs — at "1" to "0", max.

10 ms

Cable length — shielded, max.

1 000 m

Cable length — unshielded, max.

600 m

Diagnoses — Monitoring the supply voltage

No

Diagnostics indication LED — Monitoring of the supply voltage (PWR-LED)

Yes; green PWR LED

Diagnostics indication LED — Channel status display

Yes; green LED

Diagnostics indication LED — for module diagnostics

Yes; green/red DIAG LED

Potential separation channels — between the channels and the power supply of the electronics

No

Isolation tested with

2 545 V DC/2 s (routine test)

Ambient temperature during operation — horizontal installation, min.

-30 °C

Ambient temperature during operation — horizontal installation, max.

60 °C

Ambient temperature during operation — vertical installation, min.

-30 °C

Ambient temperature during operation — vertical installation, max.

50 °C

Altitude during operation relating to sea level — Installation altitude above sea level, max.

2 000 m; On request: Installation altitudes greater than 2 000 m

Absolute humidity — dew point, min.

-60 °C; suitable for dry room applications

Dimensions — Width

20 mm

Dimensions — Height

73 mm

Dimensions — Depth

58 mm

Weight, approx.

36 g

Supporting protocol for EtherCAT

Yes

Supply voltage AC 50 Hz

264 V

Supply voltage AC 60 Hz

264 V

Voltage type (supply voltage)

AC

Digital outputs configurable

No

Input current at signal 1

10.8 mA

Type of voltage (input voltage)

AC

Type of digital output

None

Degree of protection (IP)

IP20

Type of electric connection

Spring clamp connection

Explosion safety category for gas

ATEX gas-ex-protection, Cat. 3G

Explosion safety category for dust

None

Width

20 mm

Height

73 mm

Depth

58 mm

Country of origin

Germany

HS Code

8538.90
