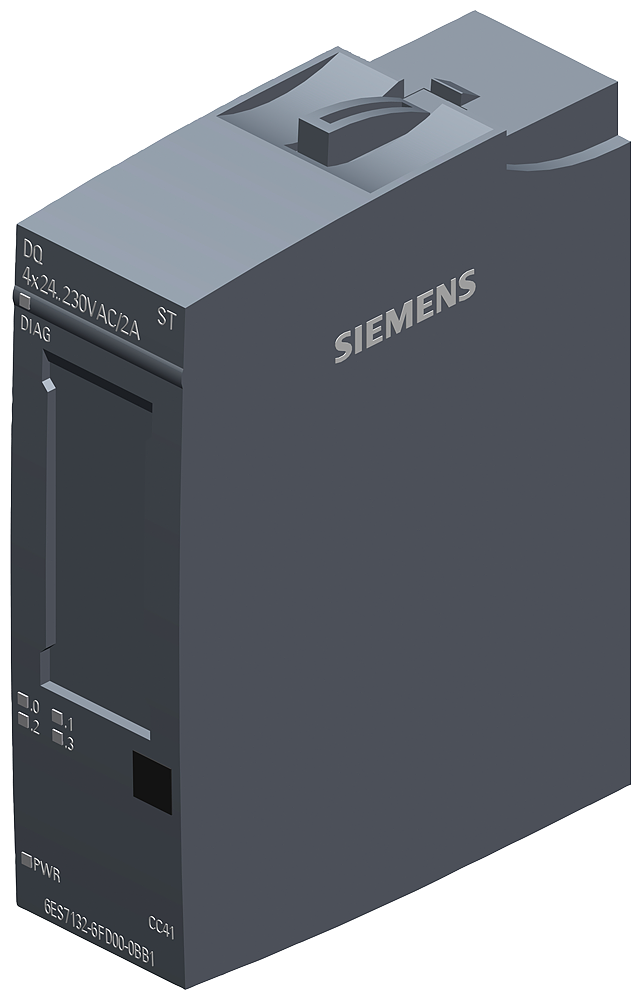

Siemens SIMATIC ET 200SP DQ 4X24..230VAC/2A ST

Siemens 6ES7132-6FD00-0BB1 — SIMATIC S7 automation module. Compact controller or expansion module for the S7-1200 or S7-1500 PLC platform. ET 200 SP, GQ 4x24.230VAC/2A Standard.

Manufacturer part number (MPN)

6ES7132-6FD00-0BB1

EAN / GTIN

4047623403333

Sales unit

pcs

Product type designation

DQ 4x24 ... 230 V AC/2 A ST

HW functional status

From FS05

Firmware version

V1.0

Firmware version — FW update possible

Yes

Usable BaseUnits

BU type B1

Color code for module-specific color-coded label

CC41

Product function — I&M data

Yes; I&M0 to I&M3

Engineering with — STEP 7 TIA Portal configurable/integrated from version

V13 / V13

Engineering with — STEP 7 configurable/integrated from version

V5.5 SP3 / -

Engineering with — PROFIBUS from GSD version/GSD revision

GSD Revision 5

Engineering with — PROFINET from GSD version/GSD revision

GSDML V2.3

Rated value (AC)

230 V

Permissible range, lower limit (AC)

20.4 V

Permissible range, upper limit (AC)

264 V

Current consumption (rated value)

11.5 mA

Power loss, typ.

9 W; Active power, load voltage 230 V, all outputs loaded with 2 A, 50 Hz

Address space per module — Address space per module, max.

1 byte; + 1 byte for QI information

Address space per module — Inputs

1 byte; With QI

Address space per module — Outputs

1 byte

Type of digital output

Triac with zero point detection

Number of digital outputs

4

Current-sinking

No

Current-sourcing

Yes

Short-circuit protection

No; When using BU type B1, a miniature, quick-response fuse with 10 A tripping current must be provided

Size of motor starters according to NEMA, max.

5

Switching capacity of the outputs — with resistive load, max.

2 A

Switching capacity of the outputs — on lamp load, max.

100 W

Output voltage — for signal "1", min.

20.4 V

Output current — for signal "1" rated value

2 A

Output current — for signal "1" permissible range, min.

10 mA

Output current — for signal "1" permissible range, max.

2 A

Output current — for signal "0" residual current, max.

460 µA

Output delay with resistive load — "0" to "1", max.

10 ms

Output delay with resistive load — "1" to "0", max.

10 ms

Switching frequency — with resistive load, max.

10 Hz

Switching frequency — with inductive load, max.

0.5 Hz; Higher frequencies are possible, see Equipment Manual / Product Information

Switching frequency — on lamp load, max.

1 Hz

Total current of the outputs — Current per channel, max.

2 A

Total current of the outputs — Current per module, max.

8 A

Horizontal installation — up to 40 °C, max.

8 A

Horizontal installation — up to 50 °C, max.

6 A

Horizontal installation — up to 60 °C, max.

4 A

Vertical installation — up to 30 °C, max.

8 A

Vertical installation — up to 40 °C, max.

6 A

Vertical installation — up to 50 °C, max.

4 A

Cable length — shielded, max.

1 000 m

Cable length — unshielded, max.

600 m

Diagnostics indication LED — Monitoring of the supply voltage (PWR-LED)

Yes; green PWR LED

Diagnostics indication LED — Channel status display

Yes; green LED

Isolation tested with

2 545 V DC/2 s (routine test)

Ambient temperature during operation — horizontal installation, min.

-30 °C

Ambient temperature during operation — horizontal installation, max.

60 °C

Ambient temperature during operation — vertical installation, min.

-30 °C

Ambient temperature during operation — vertical installation, max.

60 °C

Altitude during operation relating to sea level — Installation altitude above sea level, max.

2 000 m; On request: Installation altitudes greater than 2 000 m

Absolute humidity — dew point, min.

-60 °C; suitable for dry room applications

Dimensions — Width

20 mm

Dimensions — Height

73 mm

Dimensions — Depth

58 mm

Weight, approx.

50 g

Supporting protocol for EtherCAT

Yes

Voltage type (supply voltage)

AC

Digital inputs configurable

No

Type of voltage (input voltage)

AC

Output current

2 A

Type of output voltage

AC

Degree of protection (IP)

IP20

Explosion safety category for gas

ATEX gas-ex-protection, Cat. 3G

Explosion safety category for dust

None

Width

20 mm

Height

73 mm

Depth

58 mm

Country of origin

Germany

HS Code

8538.90
