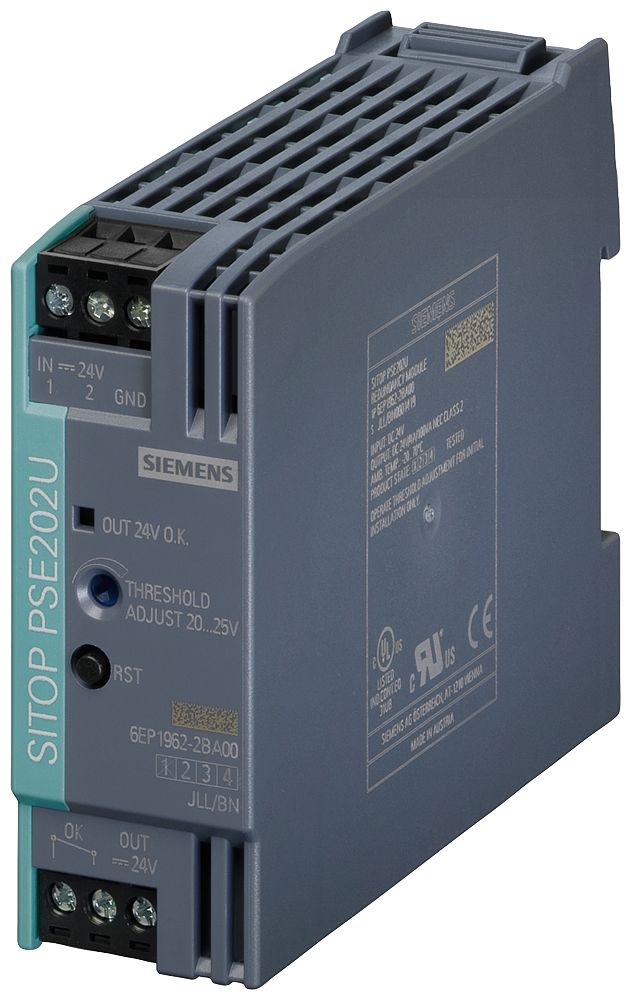

Siemens SITOP PSE202U/Red. M./24VDC/100VA/NECCL2

Siemens 6EP1962-2BA00 — SITOP DC power supply. DIN-rail primary-switched regulated 24 VDC power supply for automation panels. SITOP PSE202U Redundansmodul, In:/Out: 24 V DC Wattage <100 VA.

Manufacturer part number (MPN)

6EP1962-2BA00

EAN / GTIN

4025515153047

Sales unit

pcs

Type of the power supply network

DC voltage

Supply voltage at DC

24 V

Input voltage at DC

19 ... 29 V

Voltage curve at output

Controlled, isolated DC voltage

Output voltage at DC rated value

24 V

Formula for output voltage

Vin - approx. 0.5 V

Output voltage — at output 1 at DC rated value

24 V

Output voltage adjustable

No

Display version for normal operation

Green LED for "both input voltages > switching threshold"; red LED for "at least one input voltage < switching threshold" or "output switched off"

Type of signal at output

Isolated relay contact (contact rating 6 A/42 V AC, 30 V DC, but max. 100 VA): Contact closed if one or both input voltages < switching threshold or output is switched off. Setting range of switching threshold 20 V ±0.5 V to 25 V ±0.5 V

Output current — rated value

3.8 A

Output current — rated range

3.5 A; 4.3 A at 19 V, 2.8 A at 28.5 V; maximum aggregate current in the event of an error according to NEC class 2 limit 8 A

Efficiency in percent

94.8 %

Power loss [W] — at rated output voltage for rated value of the output current typical

5 W

Power loss [W] — during no-load operation maximum

2 W

Galvanic isolation between input and output

No

Galvanic isolation

relay contact: SELV, ES1 (IEC 62368-1), DVC As (IEC 61204-7)

Operating resource protection class

Class III

Protection class IP

IP20

Standard — for emitted interference

EN 55022 Class B

Standard — for interference immunity

EN 61000-6-2

Shipbuilding approval

No

Ambient temperature — during operation

-20 ... +70 °C; with natural convection

Ambient temperature — during transport

-40 ... +85 °C

Ambient temperature — during storage

-40 ... +85 °C

Type of electrical connection

screw terminal

Type of electrical connection — at input

Input, output and ground: removable screw terminal, each 1 x 0.5 ... 2.5 mm² single-core/finely stranded

Type of electrical connection — for auxiliary contacts

Relay contact: 2 screw terminals for 0.5 ... 2.5 mm² single-core/finely stranded

Width × height × depth of the enclosure

30 × 80 × 100 mm

Installation width × mounting height

30 mm × 180 mm

Required spacing — top

50 mm

Required spacing — bottom

50 mm

Fastening method

Snaps onto DIN rail EN 60715 35x7.5/15

Fastening method — DIN-rail mounting

Yes

Fastening method — S7 rail mounting

No

Fastening method — wall mounting

No

Housing can be lined up

Yes

Mechanical data — net weight

0.125 kg

Electrical accessories

Removable spring-type terminal 6EP1971-5BA00

Other information

Specifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified)

Voltage type (supply voltage)

DC

1st secondary output voltage

24 V

Max. output current 1

3.5 A

Secondary voltage adjustable

No

Nominal value output voltage 1

24 V

Nominal value output current 1

3.8 A

Rated supply voltage DC

24 V

Output voltage stabilized

Yes

Type of electric connection

Screw connection

Suitable for rail mounting

Yes

Wall mounting possible

No

Suitable for distribution board

Yes

Built-in width

30 mm

Built-in height

180 mm

Direct mounting possible

No

Width

30 mm

Height

80 mm

Depth

100 mm

Suitable for safety functions

No

Degree of protection (IP)

IP20

Suitable for wall mounting

No

Country of origin

Germany

HS Code

8504.90
