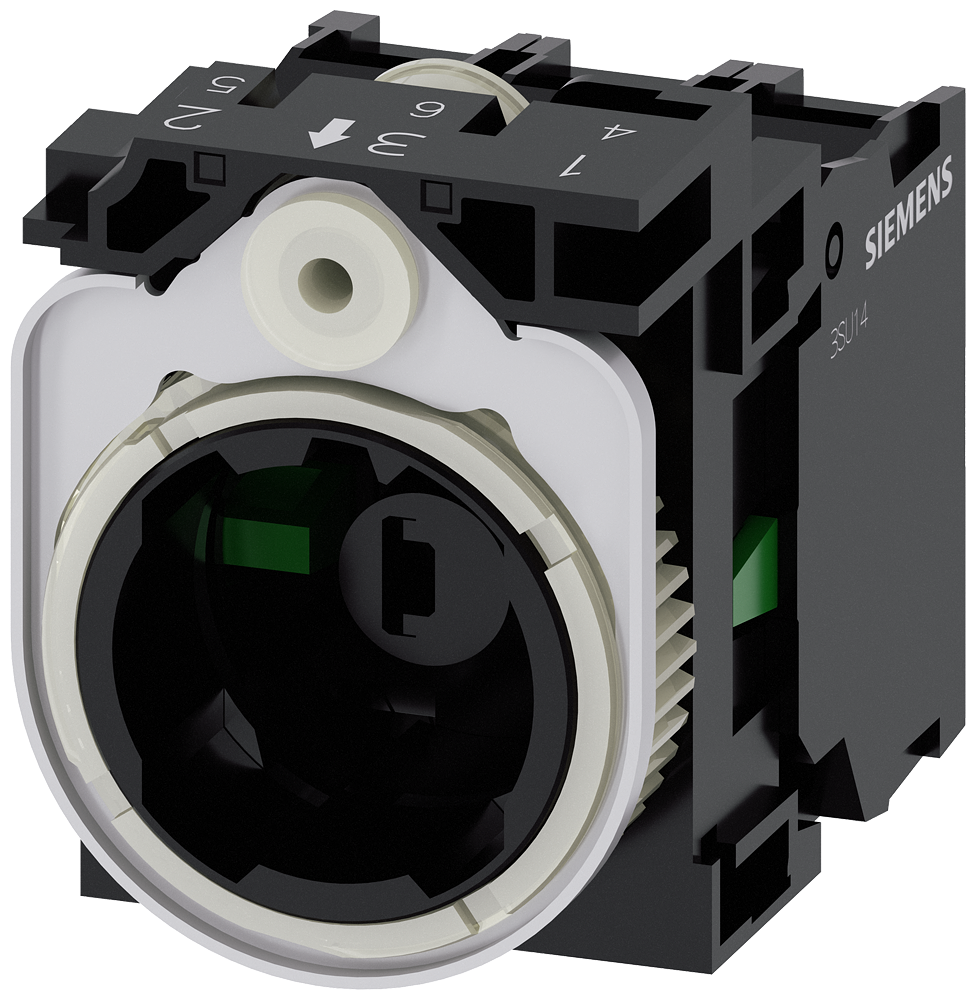

Siemens SIRIUS Holder, 3-Fold, plastic, 1 NO, 1 NO, LED module, red, 6-24 V AC/DC, screw terminal

Siemens 3SU1501-1AG20-1NA0 - SIRIUS ACT 22 mm command and signalling device. Three-way plastic holder equipped with two 1 NO contact modules and a red LED module for 6-24 V AC/DC on screw terminals. Panel-mount unit in the 22 mm cutout family for control-panel and machinery installations.

Manufacturer part number (MPN)

3SU1501-1AG20-1NA0

EAN / GTIN

4011209964242

Sales unit

pcs

Product brand name

SIRIUS ACT

Product designation

Holders

Design of the product

holder for plastic

Product type designation

3SU1

Manufacturer's article number — of supplied contact module

3SU1400-1AA10-1BA0, 3SU1400-1AA10-1BA0

Manufacturer's article number — of supplied contact module at position 1

3SU1400-1AA10-1BA0

Manufacturer's article number — of supplied contact module at position 2

3SU1400-1AA10-1BA0

Manufacturer's article number — of supplied LED module

3SU1401-1BG20-1AA0

Manufacturer's article number — of the supplied holder

3SU1500-0AA10-0AA0

Design of the actuating element

3-way with module

Number of modules attachable

6

Number of contact modules

2

Material of the holder

Plastic

Number of LED modules

1

Product function positive opening

No

Product component — diode

Yes

Product component — lamp transformer

No

Product component — light source

Yes

Product component — series resistor

No

Insulation voltage rated value

320 V

Degree of pollution

3

Surge voltage resistance rated value

4 kV

Protection class IP of the terminal

IP20

Shock resistance — according to IEC 60068-2-27

sinusoidal half-wave 15 g / 11 ms

Shock resistance — for railway applications according to EN 61373

Category 1, Class B

Vibration resistance — according to IEC 60068-2-6

10 ... 500 Hz: 5 g

Vibration resistance — for railway applications according to EN 61373

Category 1, Class B

Operating frequency maximum

3 600 1/h

Mechanical service life (operating cycles) typical

10 000 000

Thermal current

10 A

Reference code according to IEC 81346-2

U

Continuous current of the C characteristic MCB

10 A; for a short-circuit current smaller than 400 A

Continuous current of the quick DIAZED fuse link

10 A

Continuous current of the DIAZED fuse link gG

10 A

General technical data — Net Weight

48 g

At AC — at 50 Hz rated value

6 ... 24 V

At AC — at 60 Hz rated value

6 ... 24 V

At AC — at DC rated value

6 ... 24 V

Contact reliability

One maloperation per 100 million (17 V, 5 mA), one maloperation per 10 million (5 V, 1 mA)

Inrush current of LED module maximum

2 A

Design of the contact of auxiliary contacts

Silver alloy

Number of NC contacts for auxiliary contacts

0

Number of NO contacts for auxiliary contacts

2

Operational current at AC-15 at 230 V rated value

6 A

Type of electrical connection — of modules and accessories

Screw-type terminal

Type of connectable conductor cross-sections — solid with core end processing

2x (0.5 ... 0.75 mm²)

Type of connectable conductor cross-sections — solid without core end processing

2x (1.0 ... 1.5 mm²)

Type of connectable conductor cross-sections — finely stranded with core end processing

2x (0.5 ... 1.5 mm²)

Type of connectable conductor cross-sections — finely stranded without core end processing

2x (1,0 ... 1,5 mm²)

Type of connectable conductor cross-sections — for AWG cables

2x (18 ... 14)

Tightening torque of the screws in the bracket

1 ... 1.2 N·m

Tightening torque — with screw-type terminals

0.8 ... 0.9 N·m

Type of light source

LED

Color of the light source

red

Light intensity

450 ... 1 120 mcd

Ambient temperature — during operation

-25 ... +70 °C

Ambient temperature — during storage

-40 ... +80 °C

Fastening method

front plate mounting

Fastening method — of modules and accessories

Front plate mounting

Installation/ mounting/ dimensions — height

40 mm

Installation/ mounting/ dimensions — width

30 mm

Shape of the installation opening

round

Mounting diameter

22.5 mm

Installation width

30 mm

Installation depth

49.8 mm

Thickness of the front plate usable

1 ... 6 mm

Number of appliances to build in

6

Built-in diameter

22.5 mm

Country of origin

Germany

HS Code

8536.50
