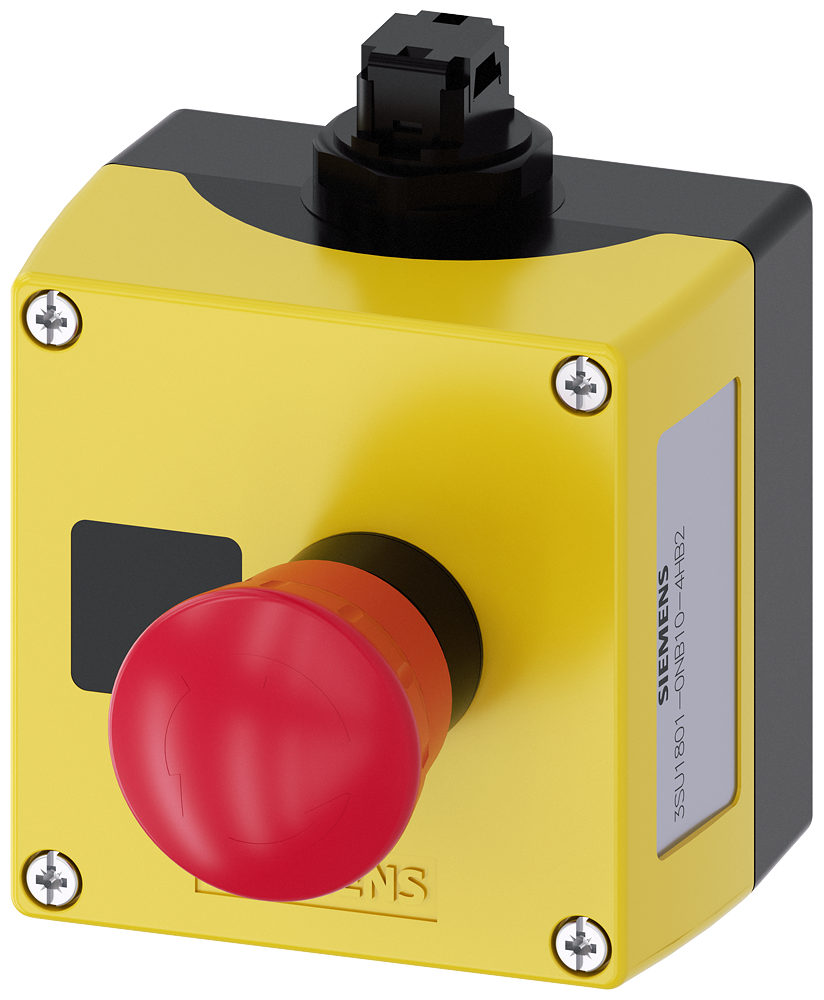

Siemens SIRIUS AS-Interface enclosure for command devices, 22 mm, round, Enclosure material plastic, Enclosure top part yellow, 1 control point plastic, Recess for label, A=EMERGENCY STOP mushroom pushbutton red, 40 mm, rotate-to-unlatch, 1 NC, 1 NC, spring-type terminal, floor mounting, Insulation displacement system on top, Label enclosed

Siemens 3SU1801-0NB10-4HB2 — SIRIUS ACT 22 mm command and signalling device. Panel-mount pushbutton, indicator lamp or emergency-stop actuator in the 22 mm cutout family. SIRIUS ACT Complete box:1-AS-Interface Yellow top section rigid plastic enclosure.

Manufacturer part number (MPN)

3SU1801-0NB10-4HB2

EAN / GTIN

4011209970342

Sales unit

pcs

Product brand name

SIRIUS ACT

Product designation

Enclosures

Product type designation

3SU1

Equipment of commanding and signaling device

A = EMERGENCY STOP mushroom pushbutton, 40 mm, with positive latching acc. to ISO 13850 and rotate-to-unlatch mechanism

Manufacturer's article number — of supplied contact module at the command point A 1

3SU1400-2AA10-3CA0

Manufacturer's article number — of supplied contact module at the command point A 2

3SU1400-2AA10-3CA0

Manufacturer's article number — of the supplied holder at the command point A

3SU1500-0AA10-0AA0

Manufacturer's article number — of the supplied actuator at the command point A

3SU1000-1HB20-0AA0

Manufacturer's article number — of supplied empty enclosure

3SU1801-0AA00-0AB2

Design of the housing

with recess for label

Shape of the enclosure front

Square

Material of the enclosure

plastic

Number of command points

1

Product component — EMERGENCY STOP device

Yes

Product component — protective collar

No

Color of the enclosure top part

yellow

Delivery state — as a kit

No

Delivery state — pre-wired on strip terminal

No

Fastening method of the enclosure

Vertical

Design of the actuating element

EMERGENCY STOP mushroom pushbutton

Suitability for use EMERGENCY OFF switch

Yes

Product feature lockout

No

Product extension optional light source

No

Color of the actuating element

red

Material of the actuating element

plastic

Shape of the actuating element

round

Number of contact modules

2

Type of unlocking device

A = rotate-to-unlatch mechanism

Product component front ring

No

Design of the front ring

Standard

Material of the front ring

plastic

Color of the front ring

black

Material of the holder

Plastic

Number of LED modules

0

Product function — positive opening

Yes

Product function — EMERGENCY OFF function

Yes

Product function — EMERGENCY STOP function

Yes

Protection class IP

IP66, IP67, IP69(IP69K)

Degree of protection NEMA rating

1, 2, 3, 3R, 4, 4X, 12K, 13

Shock resistance — according to IEC 60068-2-27

sinusoidal half-wave 15 g / 11 ms

Shock resistance — for railway applications according to EN 61373

Category 1, Class B

Vibration resistance — according to IEC 60068-2-6

10 ... 500 Hz: 5 g

Vibration resistance — for railway applications according to EN 61373

Category 1, Class B

Reference code according to IEC 81346-2

S

Continuous current of the C characteristic MCB

10 A; for a short-circuit current smaller than 400 A

Continuous current of the quick DIAZED fuse link

10 A

Continuous current of the DIAZED fuse link gG

10 A

General technical data — Net Weight

411 g

At AC — at 50 Hz rated value

5 ... 500 V

At AC — at 60 Hz rated value

5 ... 500 V

At AC — at DC rated value

5 ... 500 V

Cable entry type

Adapter ASI shaped cable (insulation displacement method) M20 cable entry

Design of the interface for communication

AS-i

Design of the contact of auxiliary contacts

Silver alloy

Number of NC contacts for auxiliary contacts

2

Number of NO contacts for auxiliary contacts

0

Type of electrical connection of modules and accessories

Spring-type terminal

Type of electrical connection on enclosure

Adapter ASI shaped cable (insulation displacement method)

Tightening torque of the screws in the bracket

1 ... 1.2 N·m

Tightening torque of fixing screws in the enclosure cover

1.5 ... 1.7 N·m

Ambient temperature — during operation

-25 ... +70 °C

Ambient temperature — during storage

-40 ... +80 °C

Fastening method of modules and accessories

Floor mounting

Installation/ mounting/ dimensions — height

105.4 mm

Installation/ mounting/ dimensions — width

85 mm

Installation/ mounting/ dimensions — depth

109 mm

Shape of the installation opening

round

Number of labels

0

Number of inscription plates

0

Number of backing plates

0

Number of command positions

1

Colour housing cover

Yellow

Housing material

Plastic

Degree of protection (IP)

IP67/IP69K

Number of push buttons

1

Number of contacts as normally closed contact

2

Country of origin

Germany

HS Code

8536.50
